Wei Chai Engine 30 Ton 35 Ton Diesel Port Forklift Rough Tire Min Lifting Height 200MM
Price:
negotiable
MOQ:
1 unit
Delivery Time:
30-45 Days
Brand:
snsc
Product Description
Product Overview
SNSC 12-50Ton Diesel Forklift

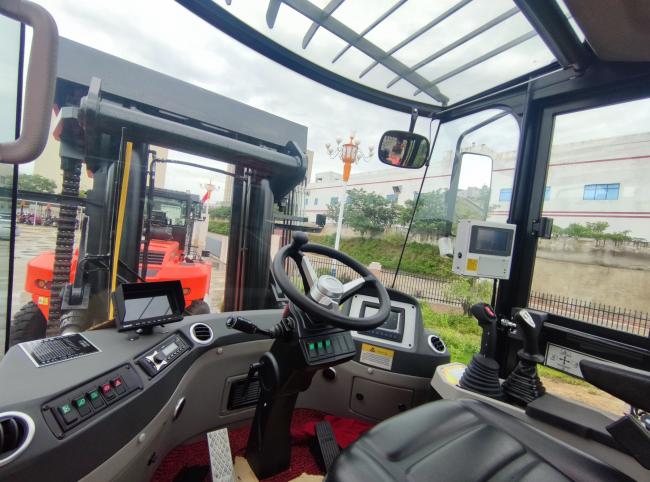

Adjustable safety seat and steering wheel are designed according to ergonomics principles, makes operation more comfortable and also relieves operator’s fatigue caused by long-time work.forklift heavy duty forklift 16ton diesel forklift 15ton diesel forklift 20ton diesel forklift 25ton diesel forklift 35ton diesel forklift 16ton montacargas 20ton diesel forklift
Fork Positioner adjust the fork through the hydraulic drive to, avoid the manual adjustment, improve the cargo handling efficiency, reduce the labor intensity and the damaged goods.forklift heavy duty forklift 16ton diesel forklift 15ton diesel forklift 20ton diesel forklift 25ton diesel forklift 35ton diesel forklift 16ton montacargas 20ton diesel forklift forklift truck

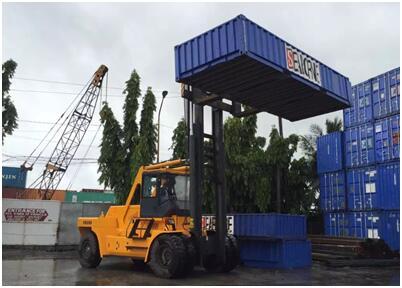

25ton forklift in container port
16ton forklift in Quarry
18ton in construction industry

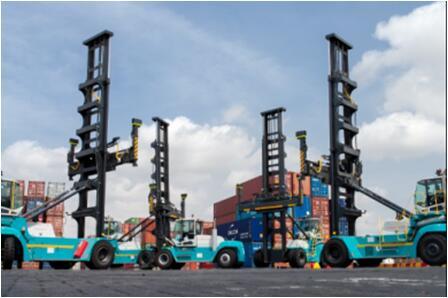

empty handler in container port
FEATURES AT A GLANCE

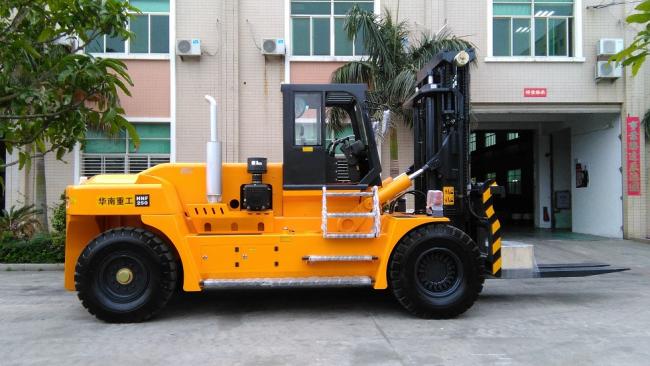

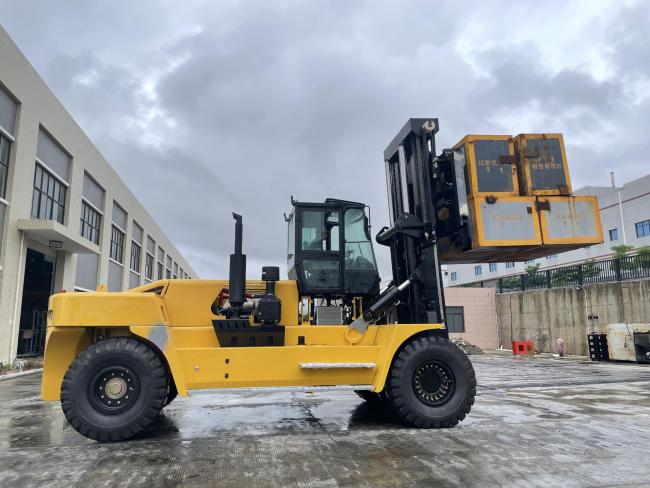

Heavy Duty 28Ton 30Ton 35Ton Diesel Forklift for port use
Heavy Duty 28Ton 30Ton 35Ton Diesel Forklift for port use
PRODUCT CONFIGURATION

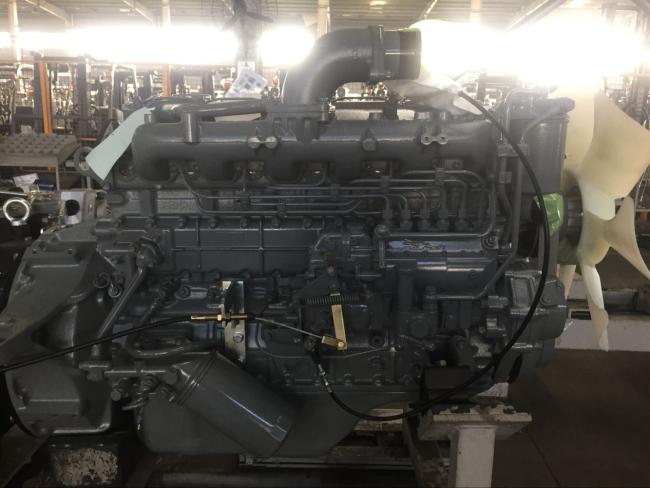

high power engine
Auto hydraulic transmission
Multi-function wheel

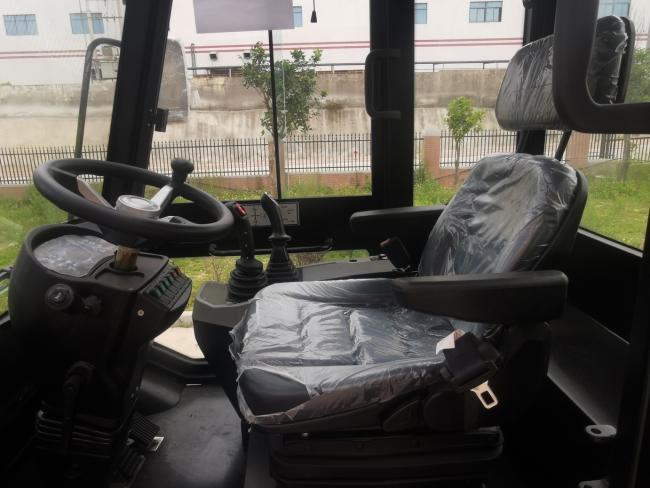

Cabin with air conditioner
PRODUCT SPECIFICATIONS
|
No
|
Item
|
|
FD280
|
FD300
|
FD320
|
FD350
|
|||
|
|
Power
|
|
Diesel
|
|
|
|
|||
|
|
Load capacity
|
kg
|
28000
|
30000
|
32000
|
35000
|
|||
|
|
Load center
|
mm
|
1250
|
1250
|
1250
|
1250
|
|||
|
|
Wheel base
|
mm
|
4800
|
4800
|
4800
|
4800
|
|||
|
Weight
|
|
|
39000
|
40000
|
41000
|
43000
|
|||
|
Chassis
|
Front tire
|
|
14-24-32PR
|
14-24-32PR
|
14-24-32PR
|
14-24-32PR
|
|||
|
|
Rear tire
|
|
14-24-32PR
|
14-24-32PR
|
14-24-32PR
|
14-24-32PR
|
|||
|
|
Tire qty (Front/rear)
|
|
4/2
|
4/2
|
4/2
|
4/2
|
|||
|
|
Wheel tread
|
mm
|
2420/2390
|
2420/2390
|
2800/2450
|
2800/2450
|
|||
|
|
Mast/carriage tilt angle(front/rear)
|
|
6/12
|
6/12
|
6/12
|
6/12
|
|||
|
|
Mast height(fork lowering)
|
mm
|
3950
|
3950
|
3950
|
4010
|
|||
|
|
Mast lifting height
|
mm
|
5700
|
5700
|
5700
|
5760
|
|||
|
|
Height to head guard(height to cab)
|
mm
|
3000
|
3000
|
3040
|
3040
|
|||
|
|
Overall Length(with forks)
|
mm
|
9590
|
9590
|
9590
|
9700
|
|||
|
|
Fork front vertical surface to the rear end of the vehicle
|
mm
|
7150
|
7150
|
7150
|
7150
|
|||
|
|
Overall width
|
mm
|
3200
|
3200
|
3200
|
3200
|
|||
|
|
Fork Dimension
|
mm
|
2440X320X110
|
2440X320X110
|
2440X320X110
|
2440X320X110
|
|||
|
|
Fork carriage width
|
mm
|
3200
|
3200
|
3200
|
3200
|
|||
|
|
Mast min ground clearance(with load)
|
mm
|
350
|
350
|
350
|
400
|
|||
|
|
Wheelbase center min ground clearance(with load)
|
mm
|
400
|
|
|
350
|
|||
|
|
Min.Turning radius
|
mm
|
7260
|
7260
|
7260
|
7260
|
|||
|
|
Travel speed(with load/without load)
|
km/h
|
24/28
|
24/28
|
24/28
|
25/28
|
|||
|
|
Max.lifting speed(with load/without load)
|
mm/s
|
260/280
|
260/280
|
260/280
|
260/280
|
|||
|
|
Max.Lowering speed(with load/without load)
|
mm/s
|
450/300
|
450/300
|
435/285
|
435/285
|
|||
|
|
Traction
|
Kn
|
220
|
|
|
|
|||
|
|
Grade ablity(with load/without load)
|
%
|
20/22
|
|
|
|
|||
|
|
Driving brake
|
|
Hydraulic clamp disc
|
|
|
|
|||
|
Engine
|
Engine brand/model
|
|
W0o10G240E341 9.74L 178KW 2200rpm
|
|
|
|
|||
|
|
|
|
QS8.3-C260 8.3L 194KW 2200rpm
|
|
|
|
|||
