5 Ton 5000KG 5T Diesel Forklift Truck Heavy Duty

Price Negotiable
Price: USD6000-10000
MOQ: 1
Delivery Time: 15-40 work days
Brand: SNSC
Product Description
Product Description

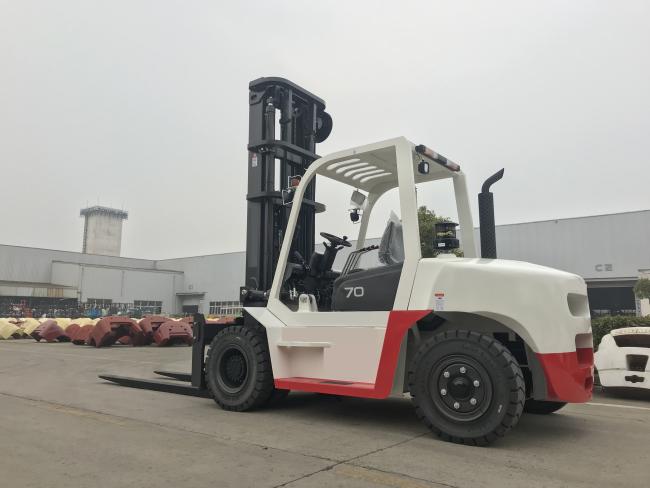

SNSC Diesel Forklift Truck 5Ton for sale

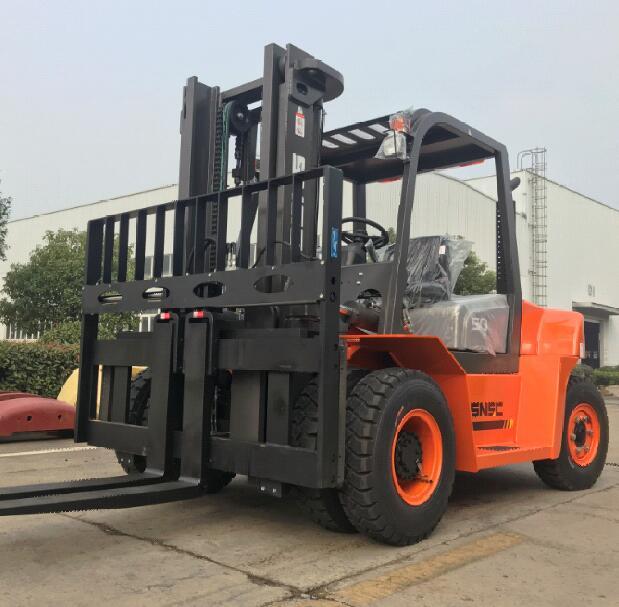

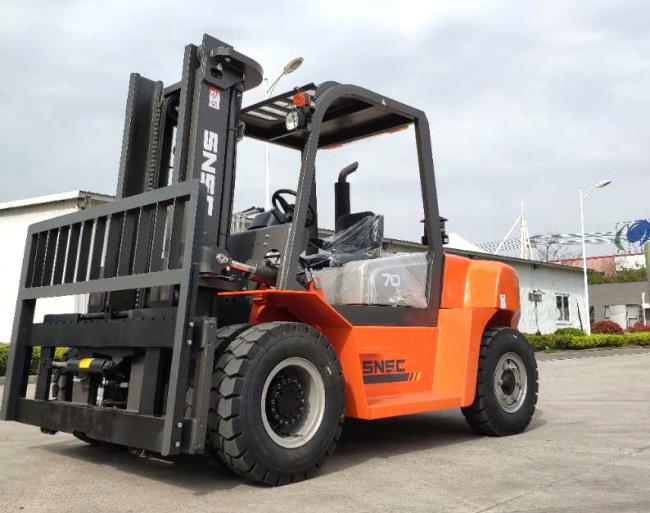

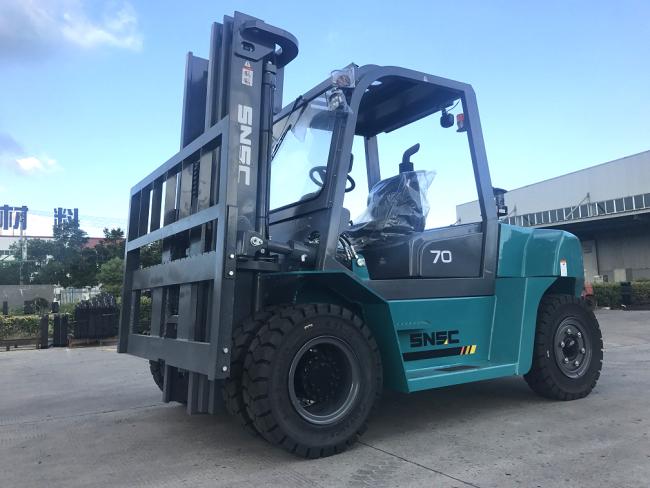

FD50 Heavy Duty Diesel Forklift Truck 5Ton





Heavy duty 5 ton forklift diesel forklift truck price

Specifications

Unit

FD50

FD60

FD70

1

Features

Power type



-

Diesel

Diesel

Diesel

2

Rated load



kg

5000

6000

7000

3

Load center



mm

600

600

600

4

Lifting Height



mm

3000

3000

3000

5

Free lifting height



mm

203

208

218

6

Fork size

LxWxT

mm

1220X150X55

1220X150X60

122X150X70

7

Mast Tilt Angle

Front/Rear

°

6/12

6/12

6/12

8

Min. Turning Radius



mm

3250

3370

3370

10

Min. Ground Clearance

Mast

mm

200

200

200

11

Overhear Guard Height



mm

2460

2460

2460

12

Front Overhang



mm

610

615

625

14

Performances

Max. Travelling Speed

loaded

Km/h

26

26

26

15

Max. Lifting Speed

loaded/empty

mm/s

370/450

370/450

370/450

16

Max. Traction Force

loaded

KN

51.4

51.4

51.4

17

Max. Climbing Ability



°

20

20

20

18

Dimension

Overall Length

without fork

mm

3431

3431

3466

19

Overall Width



mm

2235

2235

2235

20

Mast Lowered Height



mm

2500

2500

2500

21

Mast Extended Height



mm

4417

4417

4417

22

Chassis

Tyre

Front

-

8.25-15-14PR

8.25-15-14PR

8.25-15-14PR

23

Rear

-

8.25-15-14PR

8.25-15-14PR

8.25-15-14PR

24

Wheel Base



mm

2250

2250

2250

25

Wheel Thread

Front/Rear

mm

1470/1700

1470/1700

1470/1700

26

Weight(without load)



kg

7980

8640

9340

27

Powertrain

Battery



V/Ah

(12/90)X2

(12/90)X2

(12/90)X2

28

Engine

Model

-

CY6102BG6

CY6102BG6

CY6102BG6

29

Rated Power

KW/r.p.m

81/2500

81/2500

81/2500

30

Rated Torque

N.m/r.p.m

353/1700

353/1700

353/1700

31

No. of cylinder

-

6

6

6

32

Bore x Stroke

mm

102 x 118

102 x 118

102x118

33

Displacement



L

5.785

5.785

5.785

34

Fuel Tank Capacity



L

140

140

140

35

Transmission/Shift



-

1/1 Automatic transmission



36

Operation Pressure



MPa

20

20

20


Detailed Images

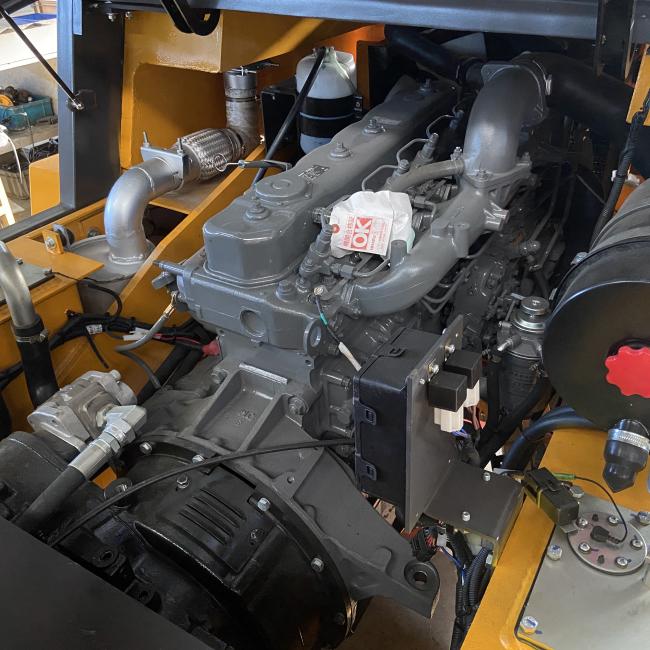

Chinese engine or Japanese Engine





Auto Electric Hydraulic Transmission





Waterproof Overhead Guard






Suspension Seat with safety belt





LED Waring Light





Light Protection Frame








Double front tires






Triangle wider view back mirror

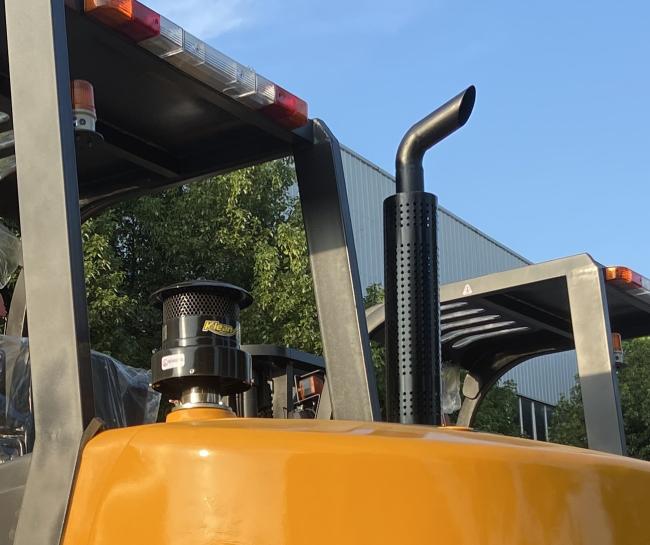

Double filter+High position exhaust


Optional Attachments

SNSC forklift can install different attachments to help your work, like paper roll clamp, side shifter, full free container mast,
bale clamp, drum clamp, block clamp, fork positioner, tyre clamp, rotators, carton clamp, cabin, etc.


Front Windscreen

Side shifter

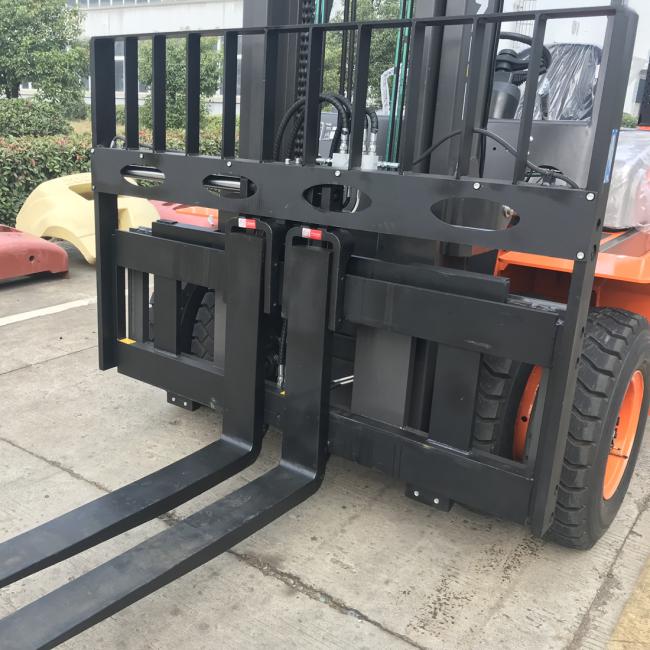

Hydraulic fork postioning function

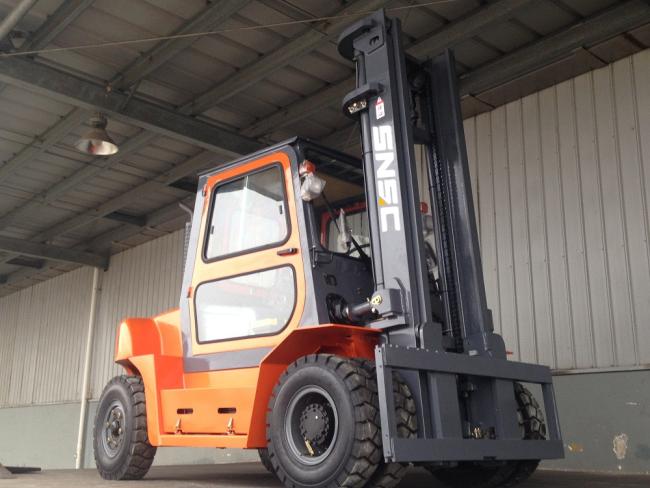

Fully closed cabin with Air conditioner

Quality Control

SNSC Forklifts have strict quality control system. Although strict quality control has been carried out during the production process, to ensure our customers can receive high performance forklifts, all of our forklifts will be tested again before delivery.
Our quality inspection is divided into indoor inspection and outdoor inspection. Indoor testing includes braking performance, the inclination angle of mast, detection of chassis oil leakage, counterweight, etc. Outdoor testing includes loading, lifting, tilting, turning, climbing, etc.


Tilt angle test

Wheel hug test

Brake Line Test


Climbing test

Lifting Test

Turning Test

Successful Cases


SNSC --"Beyond your needs!"
SNSC as a professional manufacturer of industrial vehicles, offer your various solutions for moving and stocking materials, such as diesel forklifts from 1.5t to 10t, electric forklifts from 1t to 3.5t, LPG gasoline electric stacker, warehouse trucks.


Isuzu engine diesel forklifts 5Ton to Peru

Isuzu engine diesel forklift 5ton to Russia

Mitsubishi engine 5ton diesel forklift to Poland


Isuzu engine 5ton diesel forklift to Senegal

Isuzu engine 7ton diesel forklift to Algeria

Isuzu engine 7ton diesel forklift to Gambia

Package and Delivery

Heavy duty 5 ton forklift diesel forklift truck pricewith Tool Box, Forklift truck Catalog, Gloves and Forklift truck Operation and Maintenance Manuals, Fork Sleeves and Spare Parts together.

Packaging&Shipping For 5ton and 6ton, 1*40'HQ - 3 units.
For 7ton, 1*40'HQ - 2 Units

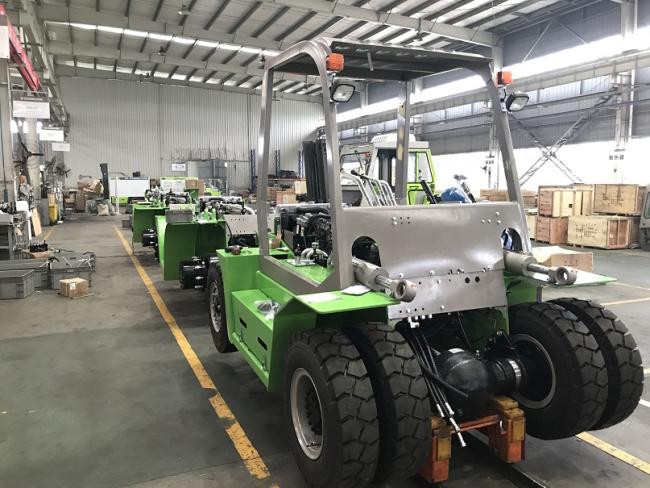

Our Factory

We are top 3 in Chinese forklift manufactures and top 20 in the world,over 300 employees,10,000 units forklift truck production capacity per year,5000 sets export volume.

our R&D research is in Britain, and we invested 600 million in forklift factory, use advanced equipments, eg: welding robot and others to realize over 95% automatic production line.






Material Preparation Workshop

Structure Workshop


Painting Workshop
