3 Ton Diesel Forklift For Warehouse And Outdoor Use

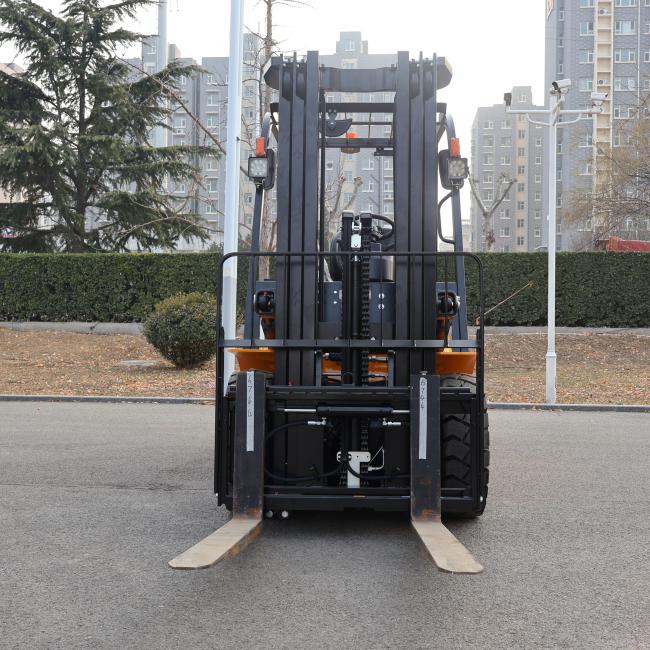

SNSC FD30 3-Ton Diesel Forklift Truck — Heavy-Duty 3000 kg Industrial Lift
The SNSC FD30 3-Ton Diesel Forklift delivers exceptional industrial performance, combining high load capacity, durability, and fuel-efficient diesel power.
Designed for warehouses, factories, construction sites, and logistics centers, it ensures stable lifting, smooth operation, and reliable handling of heavy loads.
Key Advantages:
- 3-ton rated load capacity (3000 kg) for heavy-duty tasks
- Advanced hydraulic system for precise lifting and tilting
- Reinforced mast and chassis for maximum durability
- Ergonomic operator cabin for safety and comfort
- Suitable for indoor and outdoor industrial applications
Functions & Performance:
The FD30 handles 3000 kg loads with a 500 mm load center, ensuring excellent stability.
Its diesel engine delivers high torque, while the hydraulic transmission provides smooth lifting, tilting, and travel control, ideal for long shifts and continuous operations.
Key Features:
- Diesel engine optimized for fuel efficiency and longevity
- Heavy-duty mast and reinforced frame
- Wide-view mast for enhanced operator visibility
- Pneumatic tires for all-terrain operation
- Ergonomic seat and controls to reduce operator fatigue
- Low-maintenance design for maximum uptime
Application Scenarios:
- Warehouses and distribution centers
- Industrial factories and production lines
- Construction sites and outdoor yards
- Ports, logistics terminals, and container handling
- Heavy-duty outdoor material transport
Working Principle:
The diesel engine powers a hydraulic pump, producing pressure for mast lifting and tilting.
Steering and braking systems ensure precise control, allowing safe, stable, and efficient load handling in all conditions.
| Specifications | Unit | FD30 | |||
| 1 | Characteristics | Power | — | diesel | |
| 2 | Rated Capacity | kg | 3000 | ||
| 3 | Center of load | mm | 500 | ||
| 4 | Lifting height | mm | 3000 | ||
| 5 | Free lifting height | mm | 145 | ||
| 6 | Forks L×W×H | mm | 1070×125×45 | ||
| 7 | Tilt Forward/Backward | . | 6/12 | ||
| 8 | Min.turning radius | mm | 2600 | ||
| 9 | Min.ground clearance(Mast) | mm | 120 | ||
| 10 | Overhead guard height | mm | 2170 | ||
| 11 | Front overhang | mm | 545 | ||
| 12 | Performance | Max.traveling speed(loaded) | km/h | 20 | |
| 13 | Max.lifting speed(loaded/empty) | mm/s | 470/520 | ||
| 14 | Drawback pull/Grade ability | kN/% | 18/20 | ||
| 15 | Dimensions | Overall length (without fork) | mm | 2825 | |
| 16 | Overall width | mm | 1230 | ||
| 17 | Mast lowered height | mm | 2065 | ||
| 18 | Mast extended height | mm | 4260 | ||
| 19 | Chassis | Tire | Front | — | 28×9-15-12PR |
| 20 | Rear | — | 6.50-10-10PR | ||
| 21 | Wheelbase | mm | 1800 | ||
| 22 | Tread width | Front/Rear | mm | 1000/970 | |
| 23 | Curb weight | None-load | kg | 4250 | |
| 24 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 |
| 25 | Engine | Model | — | XC490BPG | |
| 26 | Rated power | kw/r.p.m | 37/2650 | ||
| 27 | Rated torque | Nm/r.p.m | 148/2000 | ||
| 28 | Cylinder amount | — | 4 | ||
| 29 | Bore×Stroke | mm | 90×105 | ||
| 30 | Displacement | — | 2.54 | ||
| 31 | Fuel tank | L | 70 | ||
| 32 | Transmission | — | 1/1 automatic transmission | ||
| 33 | Working pressure | MPa | 17.5 | ||
Description:
- (1)Auto electric hydraulic transmission by TCM technology, just use your finger can achieve the forklift's forward and backward;
- (2)Japan hydraulic system, by using Shimadzu brand Valve and Pump;
- (3)USA Eaton steering gear;
- (4)LED light, with long durability time;
- (5)Copper Water tank, with better heat radiation;
- (6)Red/yellow/green colors for your reference.
Common Optionals:
Japan Isuzu/Mitsubishi engine,Side shifter,Double front tires,Solid tire,Double air filter,Vertical exhaust,fork extension,Cab,Fork positioner.
Our Commitment to You:
- We stand behind the quality of the SNSC FD30 with a comprehensive 12-month warranty.
- Coupled with our 24/7 online customer support, we ensureyou have the peace of mind and assistance you need, whenever you need it
- Maintenance consultation and operation training
- Reliable parts supply to ensure uptime
- Quick-response parts delivery
- Lifetime support for operation and maintenance
