Zoomlion 5 Ton Diesel Forklift Designed For Tough Industrial Environments
Price:
USD10000-15000
MOQ:
1
Delivery Time:
15-40 work days
Brand:
SNSC
Product Description

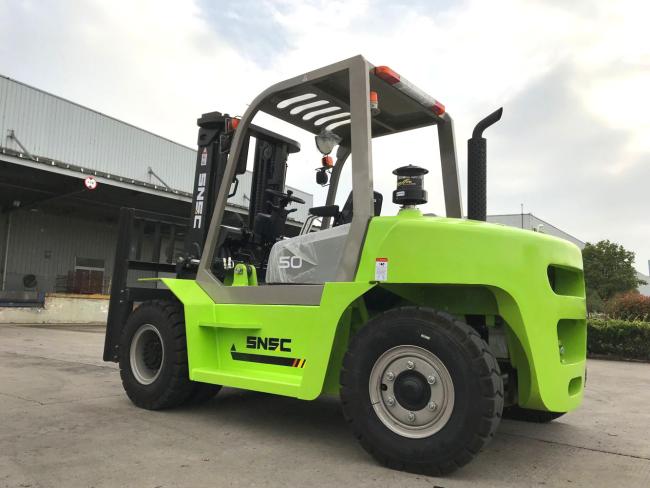

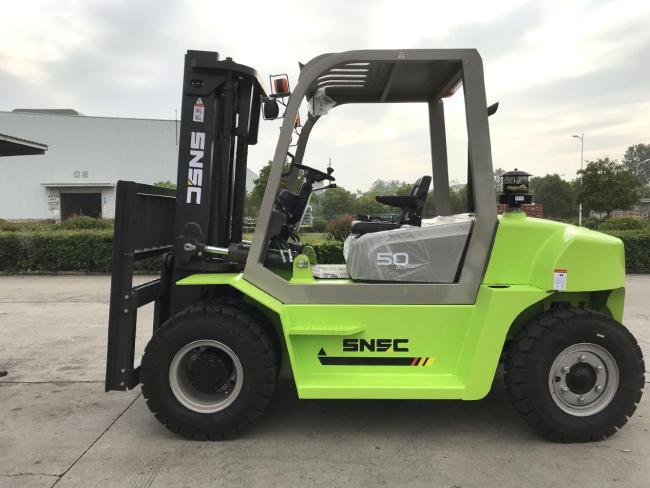

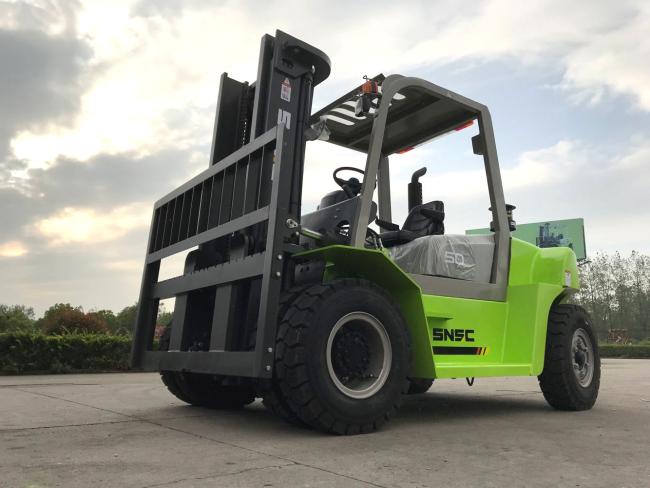

FD50 Heavy Duty Diesel Forklift Truck - 5 Ton Capacity
Designed specifically for demanding industrial environments, the FD50 5-ton diesel forklift delivers robust performance and exceptional durability.
Technical Specifications
| Specification | FD50 | FD60 | FD70 | Unit |
|---|---|---|---|---|
| Power Type | Diesel | Diesel | Diesel | - |
| Rated Load | 5000 | 6000 | 7000 | kg |
| Load Center | 600 | 600 | 600 | mm |
| Lifting Height | 3000 | 3000 | 3000 | mm |
| Free Lifting Height | 203 | 208 | 218 | mm |
| Fork Size (LxWxT) | 1220x150x55 | 1220x150x60 | 122x150x70 | mm |
| Mast Tilt Angle (Front/Rear) | 6/12 | 6/12 | 6/12 | ° |
| Min. Turning Radius | 3250 | 3370 | 3370 | mm |
| Min. Ground Clearance | 200 | 200 | 200 | mm |
| Overhead Guard Height | 2460 | 2460 | 2460 | mm |
| Front Overhang | 610 | 615 | 625 | mm |
| Max. Travelling Speed (loaded) | 26 | 26 | 26 | Km/h |
| Max. Lifting Speed (loaded/empty) | 370/450 | 370/450 | 370/450 | mm/s |
| Max. Traction Force (loaded) | 51.4 | 51.4 | 51.4 | KN |
| Max. Climbing Ability | 20 | 20 | 20 | ° |
| Overall Length (without fork) | 3431 | 3431 | 3466 | mm |
| Overall Width | 2235 | 2235 | 2235 | mm |
| Mast Lowered Height | 2500 | 2500 | 2500 | mm |
| Mast Extended Height | 4417 | 4417 | 4417 | mm |
| Tyre - Front | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | - |
| Tyre - Rear | 8.25-15-14PR | 8.25-15-14PR | 8.25-15-14PR | - |
| Wheel Base | 2250 | 2250 | 2250 | mm |
| Wheel Thread (Front/Rear) | 1470/1700 | 1470/1700 | 1470/1700 | mm |
| Weight (without load) | 7980 | 8640 | 9340 | kg |
| Battery | (12/90)X2 | (12/90)X2 | (12/90)X2 | V/Ah |
| Engine Model | CY6102BG6 | CY6102BG6 | CY6102BG6 | - |
| Rated Power | 81/2500 | 81/2500 | 81/2500 | KW/r.p.m |
| Rated Torque | 353/1700 | 353/1700 | 353/1700 | N.m/r.p.m |
| No. of Cylinder | 6 | 6 | 6 | - |
| Bore x Stroke | 102 x 118 | 102 x 118 | 102x118 | mm |
| Displacement | 5.785 | 5.785 | 5.785 | L |
| Fuel Tank Capacity | 140 | 140 | 140 | L |
| Transmission/Shift | 1/1 Automatic transmission | - | - | - |
| Operation Pressure | 20 | 20 | 20 | MPa |
Key Features & Design Elements
Chinese or Japanese Engine Options
Auto Electric Hydraulic Transmission
Waterproof Overhead Guard
Suspension Seat with Safety Belt
LED Warning Light
Light Protection Frame
Double Front Tires
Triangle Wider View Back Mirror
Double Filter + High Position Exhaust
Optional Attachments
SNSC forklifts can be equipped with various attachments to enhance functionality, including paper roll clamps, side shifters, full free container masts, bale clamps, drum clamps, block clamps, fork positioners, tire clamps, rotators, carton clamps, cabins, and more.
Front Windscreen
Side Shifter
Hydraulic Fork Positioning
Fully Closed Cabin with AC
Quality Control & Testing
SNSC Forklifts undergo rigorous quality control throughout production and comprehensive testing before delivery. Our inspection process includes both indoor and outdoor testing to ensure optimal performance and reliability.
Tilt Angle Test
Wheel Hug Test
Brake Line Test
Climbing Test
Lifting Test
Turning Test
Global Success Cases
SNSC - "Beyond your needs!" As a professional manufacturer of industrial vehicles, we offer comprehensive solutions for material handling and storage, including diesel forklifts (1.5t to 10t), electric forklifts (1t to 3.5t), LPG gasoline electric stackers, and warehouse trucks.
Isuzu Engine 5Ton to Peru
Isuzu Engine 5Ton to Russia
Mitsubishi Engine 5Ton to Poland
Isuzu Engine 5Ton to Senegal
Isuzu Engine 7Ton to Algeria
Isuzu Engine 7Ton to Gambia
Packaging & Delivery
Each heavy-duty 5-ton diesel forklift truck includes a comprehensive package with Tool Box, Forklift Catalog, Gloves, Operation and Maintenance Manuals, Fork Sleeves, and Spare Parts.
Shipping Capacity: For 5-ton and 6-ton models: 3 units per 40'HQ container. For 7-ton models: 2 units per 40'HQ container.
Our Manufacturing Facility
SNSC ranks among the top 3 forklift manufacturers in China and top 20 globally. With over 300 employees, we maintain a production capacity of 10,000 forklift units per year and export volume of 5,000 sets annually.
Our R&D center is based in Britain, and we've invested 600 million in our forklift factory, utilizing advanced equipment including welding robots to achieve over 95% automation in our production lines.
Material Preparation Workshop
Structure Workshop
Painting Workshop
Assembly Workshop
