Customizability Wastewater Treatment System - Fully Automatic Filter Press
Customizability Wastewater Treatment System - Fully Automatic Filter Press
1 . Descriptions:

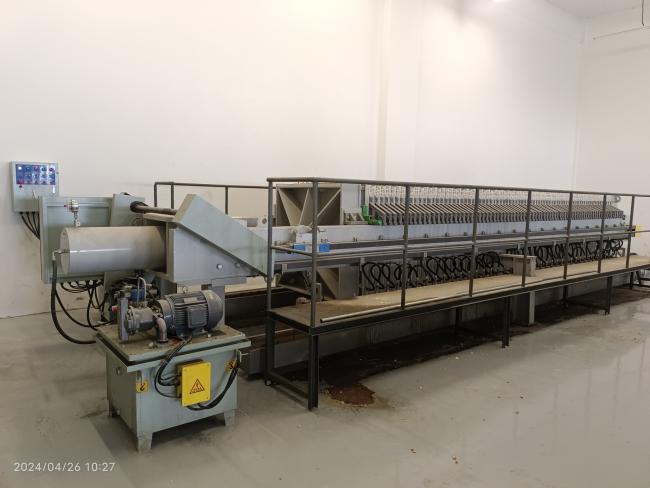

The automatic filter press primarily focuses on concentrated sludge filtration and dehydration within wastewater treatment systems and pure water treatment systems, achieving solidification of the sludge to reduce its moisture content below 45%. Through pressure transmitters, the current hydraulic oil pressure in the system is monitored, converting pressure signals into analog data for PLC recognition, thereby controlling the movement of the filter plates. Additionally, photoelectric switches enable immediate pause/recovery during plate movement or system operation, enhancing operational efficiency and user-friendliness.
What sets it apart from conventional filter presses is its integration of automatic plate pulling, liquid turning, and filter cloth cleaning systems, making it ideal for both wastewater treatment systems and pure water treatment systems. This intelligent automation makes equipment operation more efficient. The machine's scientific and rational structural design ensures high mechanical strength, stability, durability, and ease of operation and maintenance, serving the needs of wastewater treatment systems and pure water treatment systems effectively.
2 . Product parameters:
| Filtration area(㎡) | Plate Size(mm) | Cake Thickness(mm) | Chamber vloume(m³) | Filtration pressure MPA | overall dimensions | Total Weight(KG) | Motor power(kw) | ||||||||
| length | width | height | |||||||||||||
| 20 | 800*800 | 30 | 0.287 | 0.5-1.6 | 3810 | 1350 | 1160 | 2730 | 2.2 | ||||||
| 30 | 0.453 | 4440 | 3100 | ||||||||||||
| 40 | 0.605 | 5070 | 3400 | ||||||||||||
| 50 | 900*900 | 38 | 0.756 | 4870 | 1480 | 1280 | 5530 | ||||||||
| 60 | 0.907 | 5440 | 5840 | ||||||||||||
| 70 | 1.059 | 6260 | 6150 | ||||||||||||
| 80 | 1.210 | 7170 | 6760 | ||||||||||||
| 90 | 1000*100 | 40 | 1.750 | 7300 | 1560 | 1360 | 8930 | 4 | |||||||
| 100 | 1.940 | 7740 | 9350 | ||||||||||||
| 120 | 2.340 | 8740 | 9790 | ||||||||||||
| 150 | 1250*1250 | 40 | 3.000 | 7880 | 1930 | 1620 | 13620 | 5.5 | |||||||
| 160 | 3.220 | 8190 | 13960 | ||||||||||||
| 180 | 3.640 | 8800 | 14640 | ||||||||||||
| 200 | 4.050 | 9400 | 15320 | ||||||||||||
| ※parameter and detail are customizable to clients' demands. | |||||||||||||||
3 . Specificities:
1.High level of automation and at the same time trouble-free operation
2.Maximum versatility through expansion modules and other automation options
3.Simple and economical filtration due to highest degree of dewatering and shortened cycle time
4.Low personnel costs due to fully automatic execution
5.High level of security through the use of the latest security technology
6.Especially suitable for highly filterable products with high filtration speed
7.Meet the standards of industry and community
