Electrical CEM Emissions Monitoring 220V AC High Accuracy For Industrial Safety

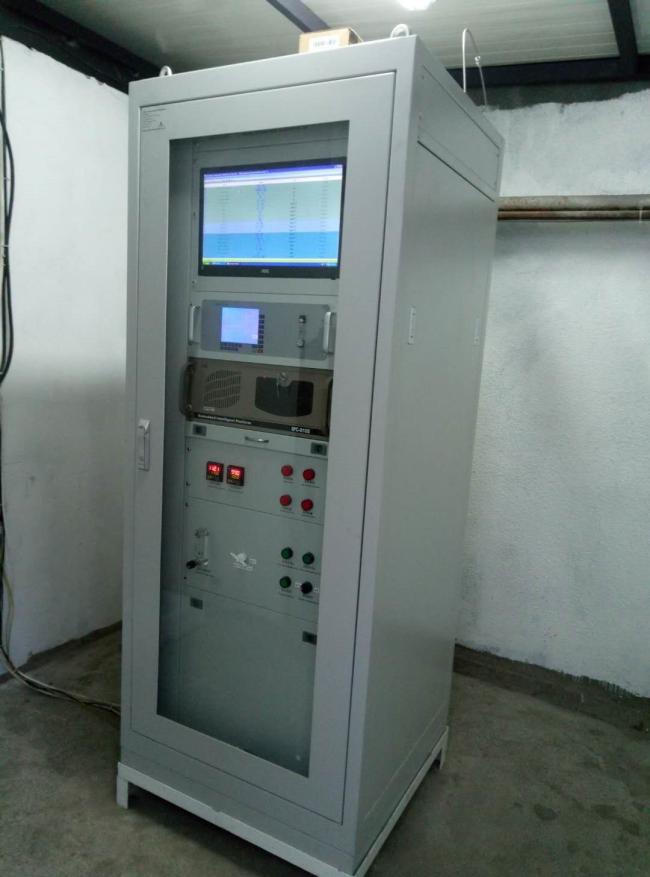

Industrial safety environmental protection flue gas analyzer CEMS
>>>Product Overview
The analyzer based on UV absorption spectroscopy and chemometric algorithms to measure SO2, NOx, O2, NH3, Cl2, O3, H2S and other gases concentration, with high accuracy, high reliability, fast response time, wide application and other characteristics, the indicators have reached or exceeded similar products, it can be widely used in environmental online monitoring, industrial control, security monitoring and other occasions.
>>>Technical Characteristics
- Analyzer uses the following optical technology platform to get the UV absorption spectrum, the technology platform consists of light source, gas chamber, fiber optics and spectroscopy (including the diaphragm, holographic gratings, linear array detector) and other optical components.
- UV-visible light emitted by the optical window into the gas chamber, is absorbed by the sample gas flowing through the measured gas chamber, carrying the tested sample gas absorbs light through the lens after gathering information coupled into optical fiber through the optical fiber transmission into the spectrometer splitting, sampling, to obtain the absorption spectrum of the gas.
- use DOAS technology spectrum analysis, can analyze the concentration of the gas in the relevant component.
>>>Technical Specification
|
Project |
Indicators |
|
SO2 Detection range |
Min:0-50ppm,Max:0-100%, |
|
NO Detection range |
Min:0-50ppm,Max:0-100%, |
|
O2 Detection range |
0-25%, Electrochemical or zirconia |
|
Linearity error |
≤±1%F.S. |
|
Repeatability |
≤1% |
|
Zero drift |
≤±1%F.S./ week |
|
Span drift |
≤±1%F.S./week |
|
Ambient temperature |
5℃~45℃ |
|
Response time(T90) |
<10s |
|
Size |
19” *3U*320mm |
|
Analog interface |
3-way 4-20mA output,2-way 4-20mA output |
|
Data interface |
4-way switch input; 8-way relay output |
|
Communication Interface |
1-way RS-232,1-way RS-485(Supports Mod-bus protocol) |
|
Power |
220VAC/50Hz 100W |
|
Protection grade |
IP42 |
|
Sample gas input and output interface |
Ø6 Tube Fittings |
>>>OEM
Customize producta are also available,pls feel free to contact me for more detailes.
1.The inquiry and question will be replied within12hours
2.High quality with competitive price
3.Good after sales service
4.Accept OEM
5.One of the most professional safety equipment manufacture with a very good and trained team
1.How about the Delivery time?
Samples will be prepared within 5 Days after 100% T/T in advance payment. QTY order will be delivered in 20days.
2.What kind of payments does KELISAIKE support?
T/T, L/C, Western Union, Cash are accepted.
3.What's the MOQ?
Generally speaking, the MOQ is 10PCS, but we also can provide you samples for quality inspection.
4.Do you charge for the samples?
According to our company policy,we just charge the samples based on EXW price.and we will return the samples fee during the next qty order.
5.Can you produce aocording to customers' design?
Suce, we are professional maunfacturer, OEM is welcome
