2 Cores SM Armored Patch Cord CPRI Patch Jumper Black LSZH 7.0mm DLC 70M
2 Cores SM Armored FTTA Patch Cord CPRI Patch Jumper Black LSZH 7.0mm DLC-70M
2 Cores SM Armored FTTA Patch Cord CPRI Patch Jumper Black LSZH 7.0mm BBU RRU DLC and FC Rodent Resistant
Flexible Armored Fiber Cable Assembly Base Station Application
The new mobile network topology (5G) provides telecommunications operators with more deployment options.
Especially in areas where installing new infrastructure is difficult or costly.
Connecting the BBU to RRH through fiber optics allows them to separate at larger distances.
FTTA links make fiber optic an important part of deploying the next generation of mobile networks.
We offer a wide range of patch cord assembly for CPRI and FTTA projects, like Huawei, ZTE, Ericsson, and Nokia.
Parameter
| Item | 2 Cores Armored CPRI patch cord |
| Fiber | G65D |
| Cable diameter | 7.0 MM (5.0mm is available) |
| Cable jacket | Black LSZH |
| Length | 70M,.etc. |
| Insert loss | ＜ 0.30dB |
| Return loss | ≥50dB (UPC) |
| Temperature | -40℃~80℃ |
| Fan-out cable | DLC-7CM, or customized. |
|
Cable Grade
|
IEC60332-1-2, Comply with ROHS |

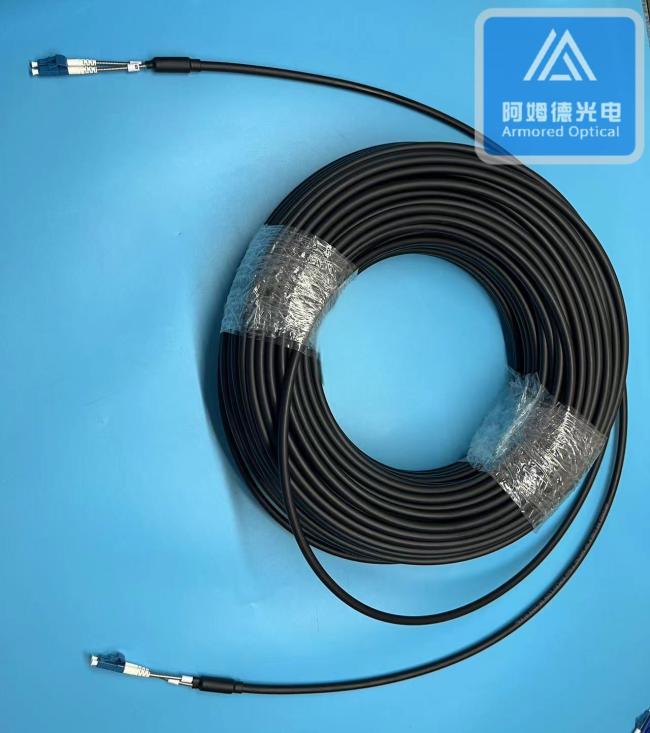

Armored patch cord product showing,
Feature
- Cable using spiral metal armored tube with best crush property, and cable is very flexible and easy bend.
- Spiral armored fiber cable has greater durability in resisting pulls, strains and impacts from cabling installation.
- Different jacket material fit for different environments.
- UV-resistant
- It's designed for harsh environments where regular fiber optical cables couldn't work well.
Service
- 100% testing before shipment.
- Armored fiber cable and patch cord can be customized according to customers’ requirement.
- Different class materials can be provided. like IEC60332.
