Hybrid Optical Fibers Cable 4 Core SM G657A2 Fiber 2pcs Power Cable
Hybrid Cable 4 Cores SM G657A2 Fiber And 2pcs Power Cable 7.0mm Black LSZH Jacket
Optical-Electrical Hybrid Cable 4 Cores SM G657A2 Fiber And 2pcs Power Cabl 7.0mm Black LSZH Jacket

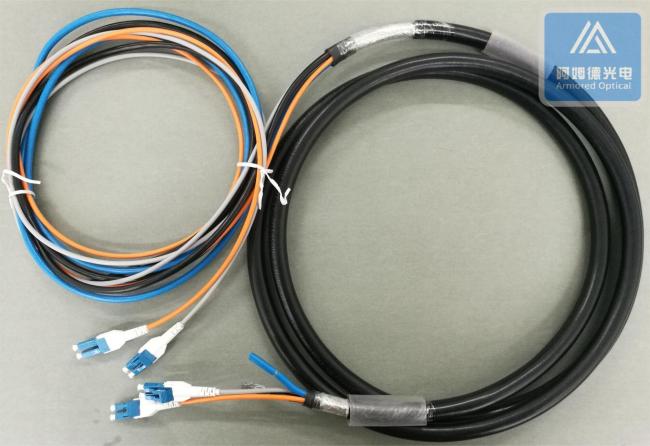

Hybrid Cable Assembly, Hybrid Patch Cord With Uniboot
Optical-Electrical Hybrid Cable is a composite cable that contains both optical fiber and power cable, and is widely used in applications where optical and electrical signals need to be transmitted together. Hybrid Cable combines the high-speed data transmission capability of optical fiber and the power transmission function of cable, and is suitable for communication, data center, broadcasting and industrial automation.
Optical-Electrical Hybrid Cable Parameter
| Fiber | 4 cores 0.6mm tight buffer G657A2 |
| Fiber Attenuation | ≤0.3dB/km@1550nm , ≤0.4dB/km@1310nm |
| Cable Diameter | 7.0±0.3mm |
| Outer Jacket | black LSZH |
| Bending Radius | Static 10D, Dynamic 20D |
| Temperature | Working temperature: -20℃～+60℃； Installation temperature: :-5℃～+50℃； Storage temperature: :-20℃～+75℃ |
| Crush (Max.) | 100N/10cm |
