Simplex Flexible Armored Fiber Patch Cable 3.0mm White LSZH FTTH

Price Negotiable
Price: Negociation
MOQ: 1000M
Delivery Time: 2 Working Weeks
Brand: JIANGSU ARMORED
Product Description

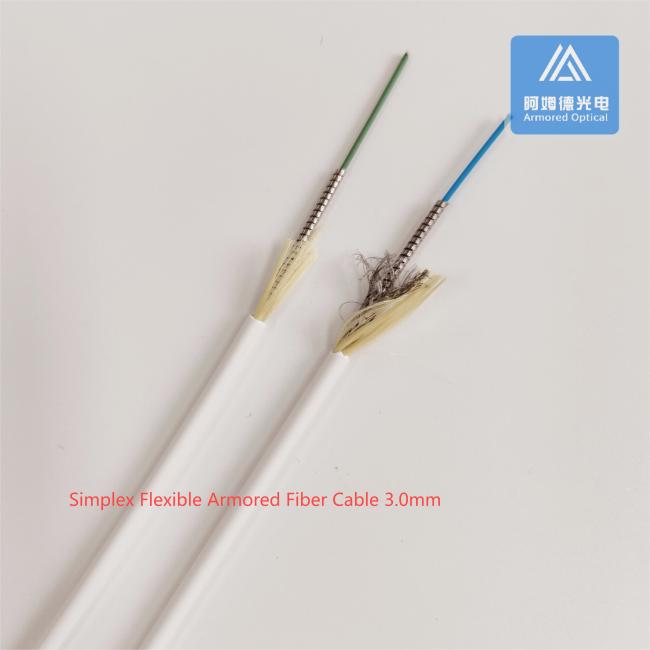

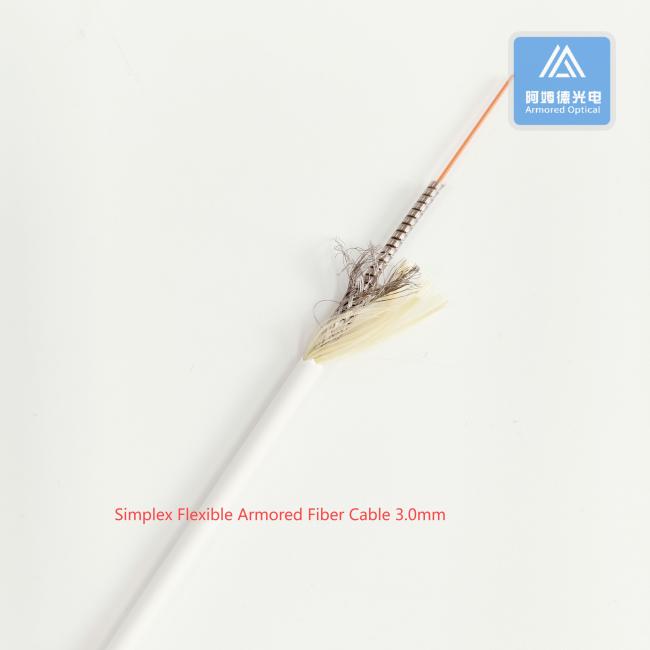

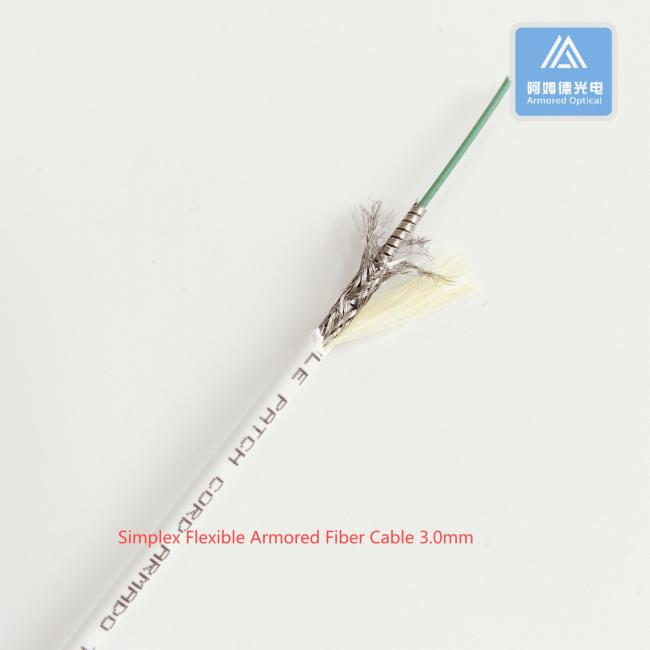

Simplex  3.0mm Spiral Stainless Steel  Micro Armored Fiber Cable, White LSZH Jacket FTTH Rodent Resistant

Micro Armored  Fiber PatchCable, Spiral Armored Fiber Cable Assembly, Double Armored Fiber Optical Cable,



With metallic tube inside, armored fiber cables and patch cords have a longer lifespan than common fiber cables and patch cords. Armoured fiber cable and patch cord are not easy to wear and tear, which can reduce maintenance costs.



Despite with metallic tube construction, armored patch cables are flexible enough and can be twist any direction.



Item Unit Description Remark
Tight Buffer Fiber mm 0.6 or 0.9±0.05mm PVC, LSZH,Others
Spiral Armored Tube mm OD: 1.7±0.1mm Stainless Steel
Braiding Mesh mm OD: 2.0±0.1mm Stainless Steel
Attenuation (Max.) dB/km

SM: 0.4dB/km@1310nm, 0.3dB/km@1550nm

MM: 3.5dB/km@850nm, 1.5dB/km@1300nm

Outer Jacket OD mm 3.0±0.1 PVC/ LSZH/ PU
Temperature

PVC: -20~70℃

PU: -40~90℃

LSZH: -30~80℃

Tensile N Long-term 100, short-term 200
Crush N/10cm Long-term 1000, short-term 2000

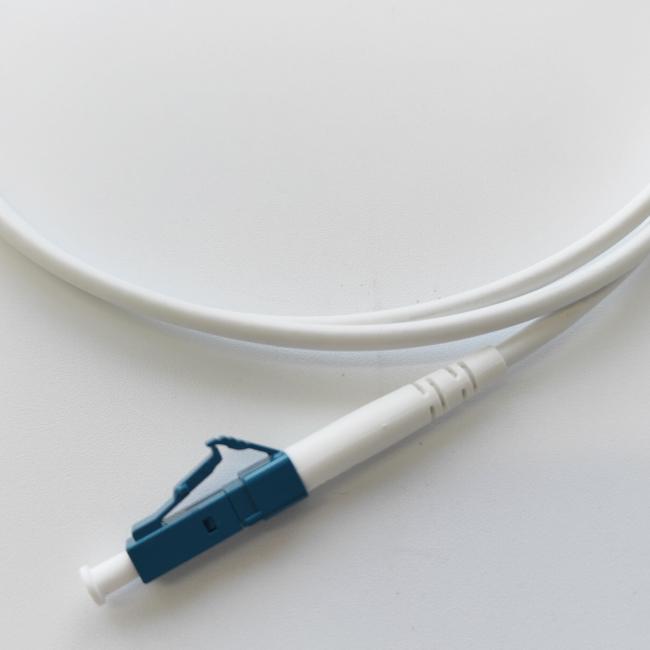

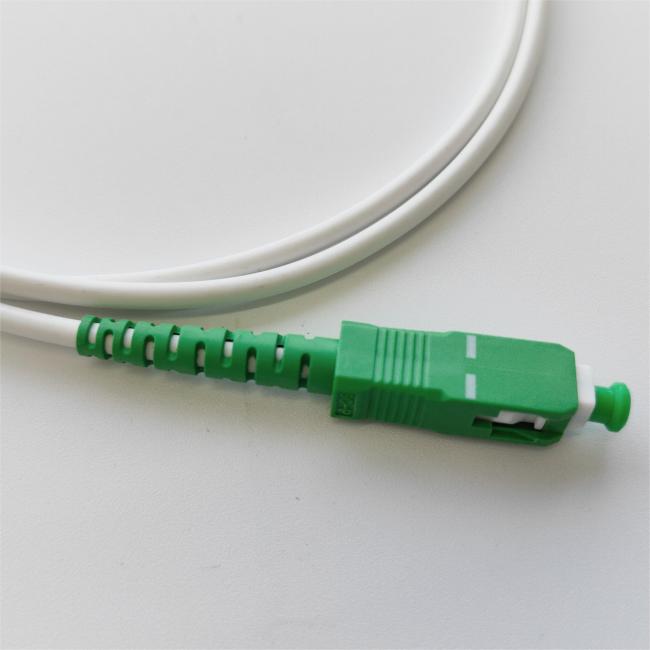

Armored fiber optical cable are available assembled with different lengths and connector types (like LC, SC, ST, FC),

making them adaptable to different networking and communications equipment.







Advantage

  • The spiral armoured cable is rodent-resistant, it’s couldn’t be destroyed by rodent animals. It has long product life.
  • Compare with normal fiber cable, spiral armoured cable maintain cost will be saved.
  • The spiral armoured cable with good tension and pressure performance.
  • The spiral armoured cable can be customized, eg. construct, size, color, material, printing, length, packing and so on., to meet different customers’ different requirement.



Service

  • 100% testing before shipment.
  • Good prices can be provided.
  • Our products can be customized according to customers’ requirement.
  • Different class materials can be provided. eg, CPR, UL, OFCR, OFCP, IEC60332, etc.
