HDMI Hybrid Cable Fiber And Power Cable 4 Cores Fiber and 7 pcs Copper Cable Black TPU 6.0mm

Price Negotiable
Price: To Be Advised
MOQ: 2000m Cable
Delivery Time: 3 Working Weeks
Brand: JIANGSU ARMORED
Product Description

HDMI Hybrid Cable Fiber And Power Cable 4 Cores Fiber and 7 pcs Copper Cable Black TPU 6.0mm

Hybrid Cable Assembly,  Hybrid Patch Cord

Application:HDMI project



Optical-Electrical Hybrid Cable is a composite cable that contains both optical fiber and power cable, and is widely used in applications where optical and electrical signals need to be transmitted together. Hybrid Cable combines the high-speed data transmission capability of optical fiber and the power transmission function of cable, and is suitable for communication, data center, broadcasting and industrial automation.

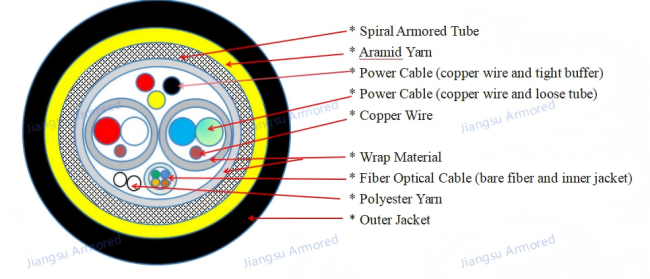

Optical-Electrical Hybrid Cable​ Parameter



Fiber 4 cores 0.25 bare fiber
Fiber Attenuation ≤0.3dB/km@1550nm , ≤0.4dB/km@1310nm
Power Cable Diameter 1.3±0.1 mm, 0.6±0.05 mm
Power Cable Quantity 4+3 pcs
Cable Diameter 6.0±0.3mm
Outer Jacket  black TPU
Bending Radius Static 10D, Dynamic 20D
Temperature Working temperature: -20℃~+60℃;
Installation temperature: :-5℃~+50℃;
Storage temperature: :-20℃~+75℃
Crush (Max.) 100N/10cm





More information, please contact us.
