7000-8000mm Wheel Base Liquid Oxygen/Nitrogen Transportation Tank Truck Semi Trailer
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
Low price High pressure 1.6Mpa 3Mpa liquid oxygen/nitrogen transportation tank truck semi trailer
![Low Price High Pressure 1.6MPa 3MPa Liquid Oxygen/Nitrogen Transportation Tank Truck Semi Trailer]()
![Low Price High Pressure 1.6MPa 3MPa Liquid Oxygen/Nitrogen Transportation Tank Truck Semi Trailer]()
![Low Price High Pressure 1.6MPa 3MPa Liquid Oxygen/Nitrogen Transportation Tank Truck Semi Trailer]()

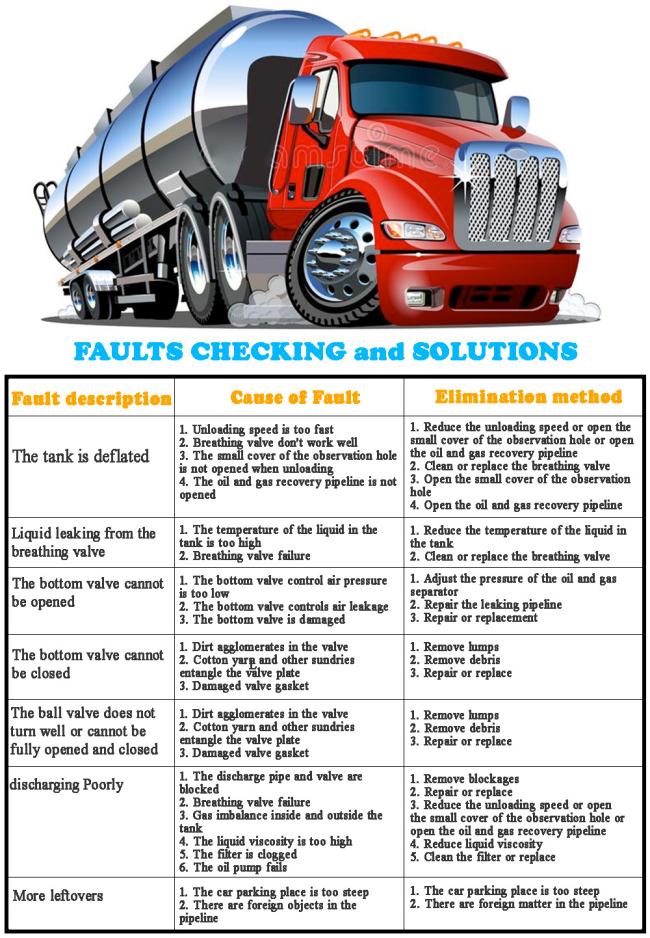

When some fault/ hitch / breakdown/ stoppage happen on fuel tank semi trailer, the Elimination method solutions accorindly as following:
![Low Price High Pressure 1.6MPa 3MPa Liquid Oxygen/Nitrogen Transportation Tank Truck Semi Trailer]()
![Low Price High Pressure 1.6MPa 3MPa Liquid Oxygen/Nitrogen Transportation Tank Truck Semi Trailer]()
![Low Price High Pressure 1.6MPa 3MPa Liquid Oxygen/Nitrogen Transportation Tank Truck Semi Trailer]()
The tank trailer can be for fuel, water, chemical liquid transportation, it can be customized:
• Carrying for water, fuel, petrolum, crude oil, Diesel, Gasoline Fuel, asphalt, chemicals, corrosives, petro-chemicals, liquid fertilizer, caustic soda, concentrated sulfuric acid, etc.
• The inside of tank body is corrosion-proof treated to meet the transport demands for different kinds of liquid foods and chemical liquids.
• the tank volume can be customized.
• High Quality Body
• BPW, FUWA or Certificated Chinese Axles
• ABS brake system
• JOST or Chinese brand parking leg and king pin
• Air and Mechanical Suspension
• Strength Chassis Construction
Our tank trailers advantages:
** Actively introducting and absorbing domestic and foreign advanced design, the tank body is designed with CAD, with reasonable structure, light deadweight, large working volume, and lower transportation cost.
** We choose well-known brand OEM parts, good-looking and drable, decrease the cost of operate and maintain.
** The sub-frame and semi trailer walking machanism are made of high strength GB steel, welded by special welding equipment, light dead-weight, and ensure its resistance to twisting forces, shock and bump, meet load requirements on different kind of road.
** The tank body use snad blasting, rust removal technique and high-grade polyamine paint, which can make the paint a strong adhesion force, beautiful, bright and persistent.
**The liquid tanker is produced with the special equipment, such as large special coiling plate machine and "welding by one side; in shape by two sides" welding machine, with the features of stable quality, cost-saving and good-looking.
![Low Price High Pressure 1.6MPa 3MPa Liquid Oxygen/Nitrogen Transportation Tank Truck Semi Trailer]()
![Low Price High Pressure 1.6MPa 3MPa Liquid Oxygen/Nitrogen Transportation Tank Truck Semi Trailer]()
![Low Price High Pressure 1.6MPa 3MPa Liquid Oxygen/Nitrogen Transportation Tank Truck Semi Trailer]()
![Low Price High Pressure 1.6MPa 3MPa Liquid Oxygen/Nitrogen Transportation Tank Truck Semi Trailer]()
HENAN FOCUS VEHICLES Co.,ltd.(Short for Focus Vehicles), is commited to R&D, manufacturing, sales and services of high-end special vehicles. It has been gained good reputation and awarded with honors and titles, such as"HENAN High-tech enterprise", "Trustworthy Brand","Being committed to supplying high quality equipment and service for urban logistics and transportation", etc. Our mission is to creat more value for clients, employees, partners and shareholds, determined to become a real enterprise being respected in China special vehicles inducstry.
Various of trailers we can provide and be manufactured as special design and with environment protection equipments, Flatbed Semi-trailer, Container Chassis, Low-bed Semi-trailer, Fuel tank Semi-trailer, Bulk Cement Tank Semi-trailer, Fence semi-trailer, Side wall Semi-trailer, Box semi-trailer, Dump Semi-trailer, LPG LNG semi-trailer, Full trailer, Dump truck, fuel tanker truck, water tanker truck, cargo truck, concrete mixturetruck etc with great price and service advantages.
Clients visit
![Low Price High Pressure 1.6MPa 3MPa Liquid Oxygen/Nitrogen Transportation Tank Truck Semi Trailer]()
![Low Price High Pressure 1.6MPa 3MPa Liquid Oxygen/Nitrogen Transportation Tank Truck Semi Trailer]()
1**You please send us your enquiry;
2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
Service Promise
1. 24-hours hot line at your service, available for quality and extending service.
2. Lifelong free technical guidance service can be provided.
3. For Customers who buy bulk quantity for the first time, we can send service technicians to offer site instruction service
and short- term stationary point service.
4. Free technical training can be provided to help customers use and maintain the trucks and trailers quickly and correctly.
Sindy Chen
When some fault/ hitch / breakdown/ stoppage happen on fuel tank semi trailer, the Elimination method solutions accorindly as following:
| Item | Q'ty | The main parameters | ||
| The shape parameters | The vehicle model | / | FCS9406GRY | |
| Dimensions | / | 12500*2500*3900mm | ||
The frame configuration | Axle | 3 PCE | FUWA 13T axle | |
| Suspension | / | Steel suspension | ||
| Leg | 1 SET | JOST E100 | ||
| Kingpins | 1 SET | JOST 90 #, assembled | ||
| Tire | 12 PCE | Linglong 12R22.5 | ||
| Rim | 12 PCE | Xingmin 9.0-22.5 | ||
| ABS | 1 SET | Kemi 4S / 2M (Chinese brand) | ||
| Brake system | / | Dual-circuit air brake system; service brake, parking brake, emergency brake (breathe brake) | ||
Tank configuration | The toal volume of tank | / | 45000L(including 5% ullage space) | |
| The number of compartment | / | 1 compartments | ||
| Material of tank | Head | / | Q235B /6.0mm | |
| Shell | / | Q235 B/5.0mm | ||
| Anti-wave plate | / | Q235B /4.0mm | ||
| Manhole | 2 PCE | 20inch | ||
| Discharge system | Bottom valve | 1 PCE | 4 inches aluminum alloy | |
| Discharge valve | 1 PCE | 3 inches | ||
| Vapor Recovery System | / | No | ||
| Discharge pump | / | No | ||
| Delivery hose | 2 PCE | 3 inch rubber hose, with the pipe box | ||
| Fire extinguisher | 2 PCE | 8kg dry powder fire extinguisher | ||
| Ladder | 1 PCE | Steel | ||
| Tank top walkway | 1 SET | Carbon steel tank top anti-sliding walkway | ||
| Control box | 1 PCE | Carbon steel control box | ||
| Toolbox | 1 PCE | Carbon steel toolbox | ||
| Spare tire rack | 1 PCE | / | ||
| Lighting | 1 SET | LED lights | ||
| Reflective logo | / | 3M reflective logo | ||
| Safety Accessories | / | An anti-static drag strip, An antistatic reel, A Flammable liquids signs | ||
The tank trailer can be for fuel, water, chemical liquid transportation, it can be customized:
• Carrying for water, fuel, petrolum, crude oil, Diesel, Gasoline Fuel, asphalt, chemicals, corrosives, petro-chemicals, liquid fertilizer, caustic soda, concentrated sulfuric acid, etc.
• The inside of tank body is corrosion-proof treated to meet the transport demands for different kinds of liquid foods and chemical liquids.
• the tank volume can be customized.
• High Quality Body
• BPW, FUWA or Certificated Chinese Axles
• ABS brake system
• JOST or Chinese brand parking leg and king pin
• Air and Mechanical Suspension
• Strength Chassis Construction
Our tank trailers advantages:
** Actively introducting and absorbing domestic and foreign advanced design, the tank body is designed with CAD, with reasonable structure, light deadweight, large working volume, and lower transportation cost.
** We choose well-known brand OEM parts, good-looking and drable, decrease the cost of operate and maintain.
** The sub-frame and semi trailer walking machanism are made of high strength GB steel, welded by special welding equipment, light dead-weight, and ensure its resistance to twisting forces, shock and bump, meet load requirements on different kind of road.
** The tank body use snad blasting, rust removal technique and high-grade polyamine paint, which can make the paint a strong adhesion force, beautiful, bright and persistent.
**The liquid tanker is produced with the special equipment, such as large special coiling plate machine and "welding by one side; in shape by two sides" welding machine, with the features of stable quality, cost-saving and good-looking.
HENAN FOCUS VEHICLES Co.,ltd.(Short for Focus Vehicles), is commited to R&D, manufacturing, sales and services of high-end special vehicles. It has been gained good reputation and awarded with honors and titles, such as"HENAN High-tech enterprise", "Trustworthy Brand","Being committed to supplying high quality equipment and service for urban logistics and transportation", etc. Our mission is to creat more value for clients, employees, partners and shareholds, determined to become a real enterprise being respected in China special vehicles inducstry.Various of trailers we can provide and be manufactured as special design and with environment protection equipments, Flatbed Semi-trailer, Container Chassis, Low-bed Semi-trailer, Fuel tank Semi-trailer, Bulk Cement Tank Semi-trailer, Fence semi-trailer, Side wall Semi-trailer, Box semi-trailer, Dump Semi-trailer, LPG LNG semi-trailer, Full trailer, Dump truck, fuel tanker truck, water tanker truck, cargo truck, concrete mixturetruck etc with great price and service advantages.
Clients visit
1**You please send us your enquiry;2**We shall reply you with the quotation within 12 hours;
3**We negotiate on the configuration that you need;
4**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
5**Manufacturing process updated news → completing production;
6**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
Service Promise
1. 24-hours hot line at your service, available for quality and extending service.
2. Lifelong free technical guidance service can be provided.
3. For Customers who buy bulk quantity for the first time, we can send service technicians to offer site instruction service
and short- term stationary point service.
4. Free technical training can be provided to help customers use and maintain the trucks and trailers quickly and correctly.
Sindy Chen
