3V1 Solenoid Valve
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

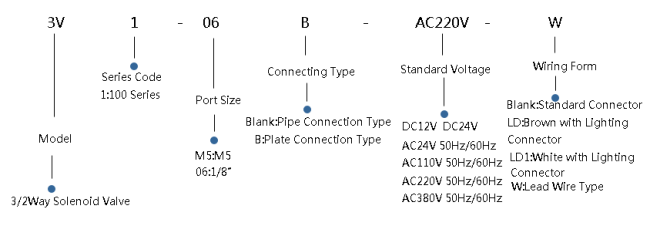

Ordering Code
Specification
 | Model | 3V1-M5 | 3V1-06 | |
| Working Medium | 40 Micron Filtered Air | |||
| Motion Pattern | Direct Drive Type | |||
| Port Size | M5 | 1/8″ | ||
| Ambient Temperature | -10～+60℃ | |||
| Gas Temperature | 5～60℃ | |||
| Air Outlet Diameter | 1.0mm | |||
| Lubrication | Not Necessary | |||
| Working-pressure | 0～0.8MPa | |||
| Max. Pressure Resistance | 1.2MPa | |||
| Power Consumption | AC: 5.5VA DC: 4.8W | |||
| Protect Class | IP65 | |||
| Power Connection Form | Lead Wire or Connector Type | |||
| Material of Body | Aluminum Alloy | |||
| Highest Action Frequency | 10 Cycle/Sec | |||
| Insulation | F Class | |||
| Voltage Range | ±10% | |||
| Shortest Excitation Time | 0.05 Second | |||
