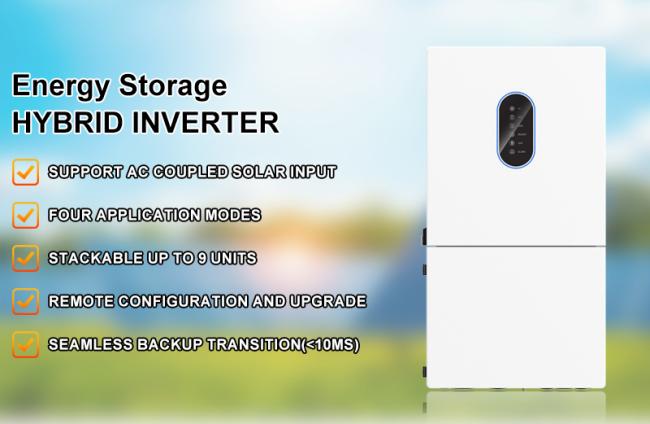

Low Voltage IP66 Single Phase 48V 8kw 10kw Solar Hybrid Inverter MPPT on Off Grid Solar Inverter 10kw 48V Solar Panel Inverter

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 10-30working days
Brand: COENG
Product Description

Product Features.

1.Up to 200% oversizing allowed with 3 MPPTS


2.Support high power module with 30A PVinput current

3.Support AC coupled solarinput

4.Stackable up to 9 units

5.Four application modes

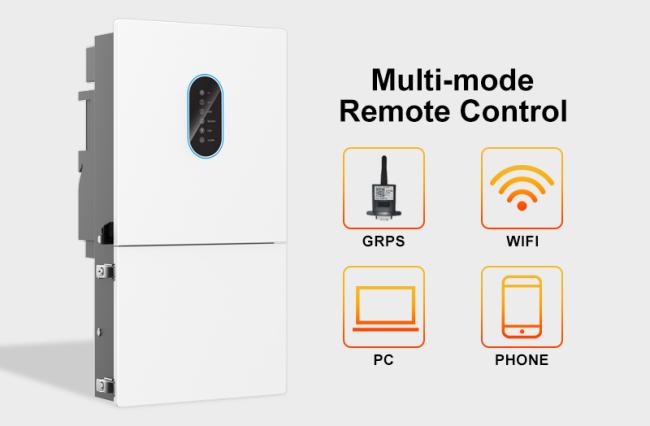

6.Remote configuration and upgrade

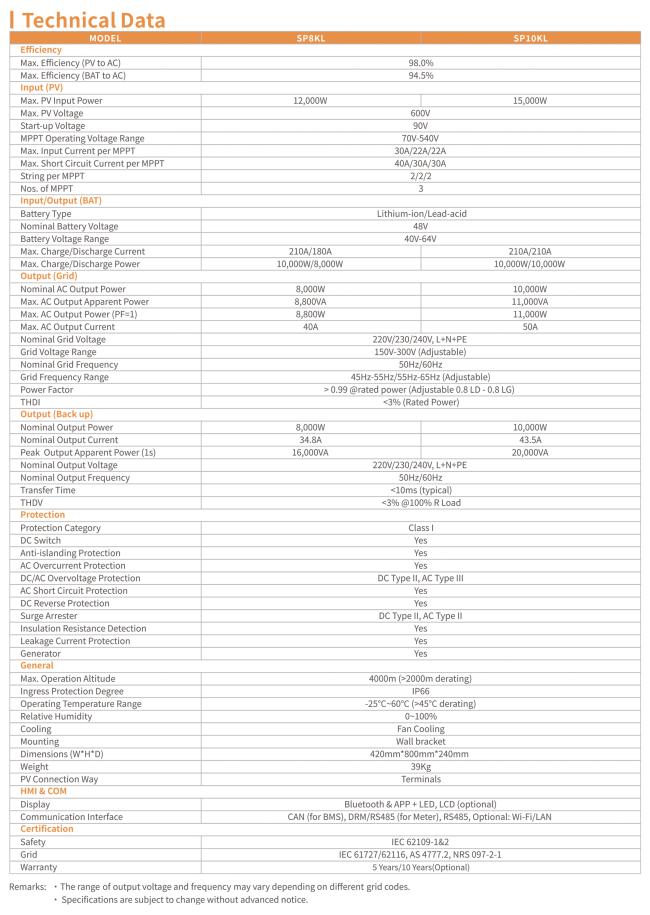

MODEL
SP8KL
SP10KL
Nominal Battery Voltage
48VDC
48VDC
Mounting Method
Wall Bracket
Wall Bracket
Battery Type
Lithium-ion/Lead-acid
Lithium-ion/Lead-acid
Nos.of MPPT
3
3
Nominal Output Voltage
220V/230/240V,L+N+PE
220V/230/240V,L+N+PE
Battery Voltage Range
40V-64V
40V-64V
Rated Grid Frequency
50Hz/60Hz
50Hz/60Hz
Transfer Time
10ms (typical)
10ms (typical)
Nominal AC Output Power
8000W
10000W
Protection Degree
IP66
IP66
Max.AC Output Apparent Power
8800VA
110000VA
Weight
39Kg
39Kg
Dimensions (W*H*D)
420mm*800mm*240mm
420mm*800mm*240mm
Warranty
5 Years/10 Years (Optional)
5 Years/10 Years (Optional)
Display
LED,LCD
LED,LCD
