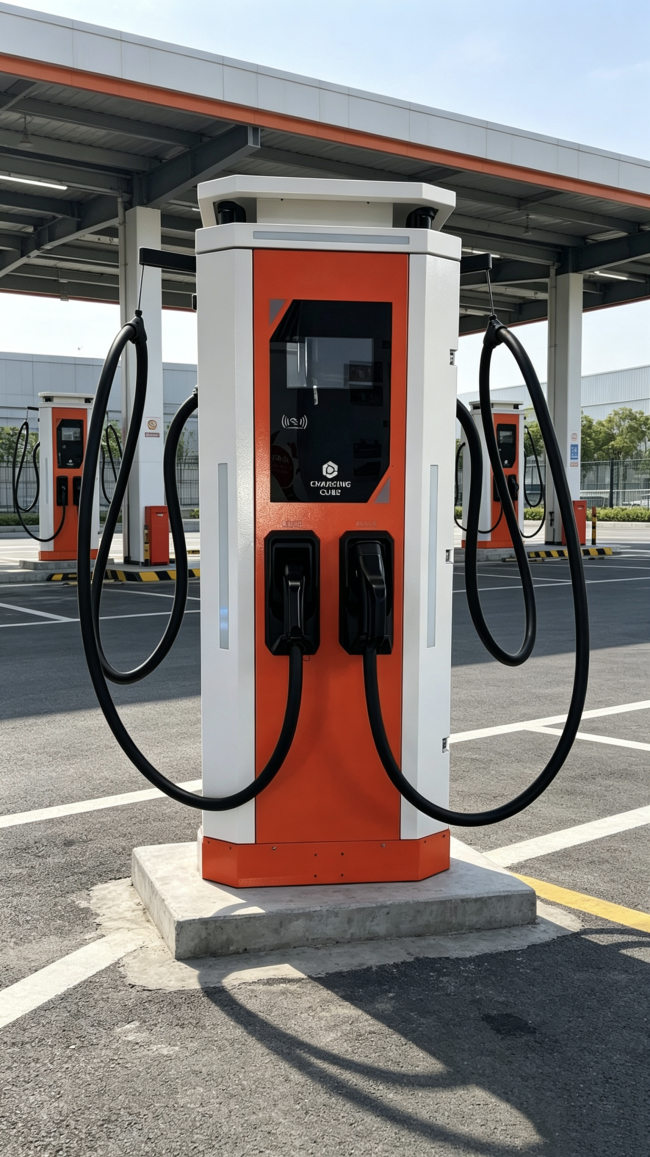

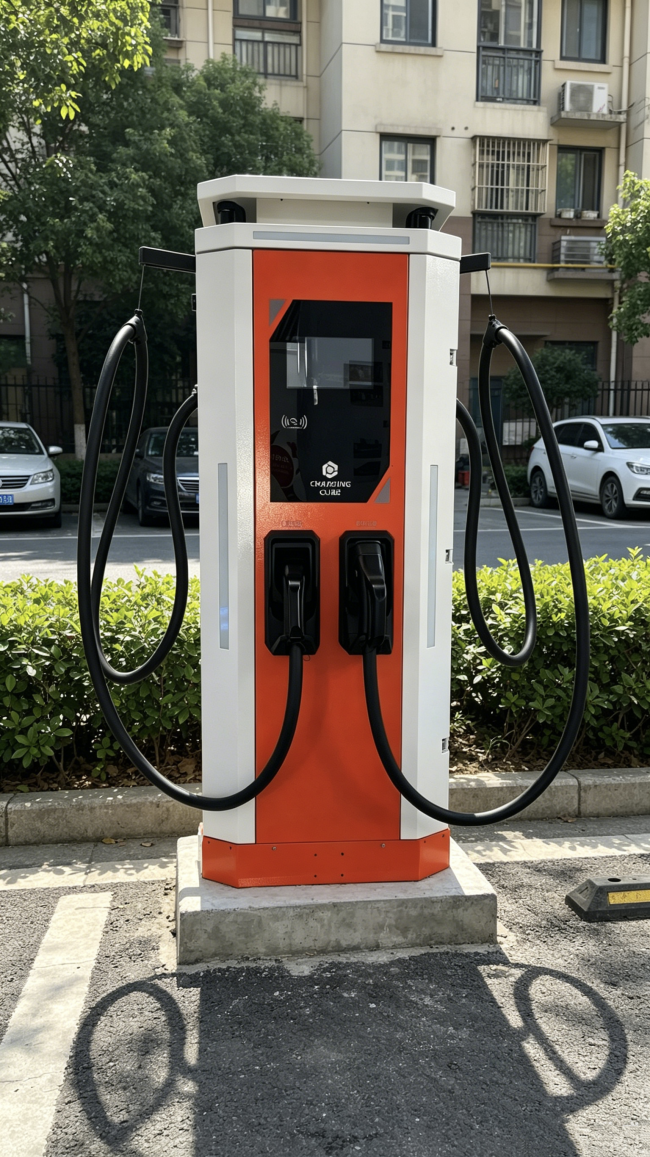

160kW Dual Gun DC Fast EV Charger with IP54 Weatherproof Protection for Commercial Use
60-160kW Dual Gun DC Fast EV Charger | Commercial Charging Pile
1.Blazing-Fast Charging Power
Available in 60kW/80kW/120kW/160kW power tiers, this commercial-grade charger delivers rapid DC charging, cutting down wait times for drivers and maximizing revenue potential for charging stations, parking lots, and fleet depots.
2. Global Compatibility for Wide Market Reach
Supports major international charging standards:
- CCS2
- CCS1
- CHAdeMO
It works seamlessly with nearly all mainstream EV models worldwide, eliminating compatibility concerns.
3. Built to Last in Any Environment
With an IP54 weatherproof rating, the unit withstands dust, rain, and extreme temperatures. The efficient air-cooling system ensures stable performance during continuous high-load operation, even in harsh outdoor conditions.
4. Smart, Connected & Easy to Operate
- A 10-inch high-brightness touchscreen provides intuitive control and real-time charging status updates.
- Supports 4G and Ethernet connectivity for remote monitoring, management, and firmware updates via the open-standard OCPP 1.6J protocol.
- Multiple payment options including RFID card swiping, enabling cashless transactions for public use.
5. Multi-Layer Safety Protection
Equipped with comprehensive safety mechanisms including short-circuit, over-temperature, over-current, leakage, and over/under-voltage protection, ensuring safe and reliable charging every time.
6. Adaptable to Diverse Climates
Standard version: Operates reliably from -20℃ to +50℃
Cold-resistant version: Extends the operating range to -30℃ to +50℃, ideal for cold regions.
| Parameter Item | Details |
|---|---|
| Model Series | CLF-DC-60 ~ CLF-DC-160 |
| Rated Power | 60kW / 80kW / 120kW / 160kW |
| Dimensions (Floor-standing) | 756 × 706 × 1908 mm |
| Input Power Supply | Three-phase (A/B/C+N+PE) AC 380V ±15% (Customizable) |
| Input Frequency | 50Hz ±10% / 60Hz ±10% |
| Output Voltage Range | 200–1000VDC (Continuously Adjustable) |
| Output Current Range | 0–200A (60kW) / 0–267A (80kW) / 0–400A (120kW) / 0–500A (160kW) |
| Rated Output Current | 200A (60kW) / 250A (80kW/120kW/160kW) |
| Number of Charging Guns | Dual Guns |
| Supported Standards | CCS2 (200A), CCS1 (200A), CHAdeMO (150A) |
| Protection Rating | IP54 |
| Communication | 4G / Ethernet |
| Protocol | OCPP 1.6J |
| Payment Methods | RFID Card Swiping (ISO/IEC 14443A/B) / Credit Card POS Reader |
| Display | 10-inch High-brightness Color Touch Screen |
| Cooling Method | Air Cooling |
| Operating Temperature | Standard: -20℃ ~ +50℃; Cold-resistant: -30℃ ~ +50℃ |
| Protection Functions | Short Circuit, Over-temperature, Over-current, Leakage, Over/Under Voltage, etc. |
| Noise Level | ≤65dB |
