100kw 200kw 300kw 200kwh 500kw Solar Battery 150kw 100 kw 500 kw Hybrid Energy Storage System

Price Negotiable
Price: negotiable
MOQ: 1 piece
Delivery Time: 45-60 days
Brand: 1stess
Product Description

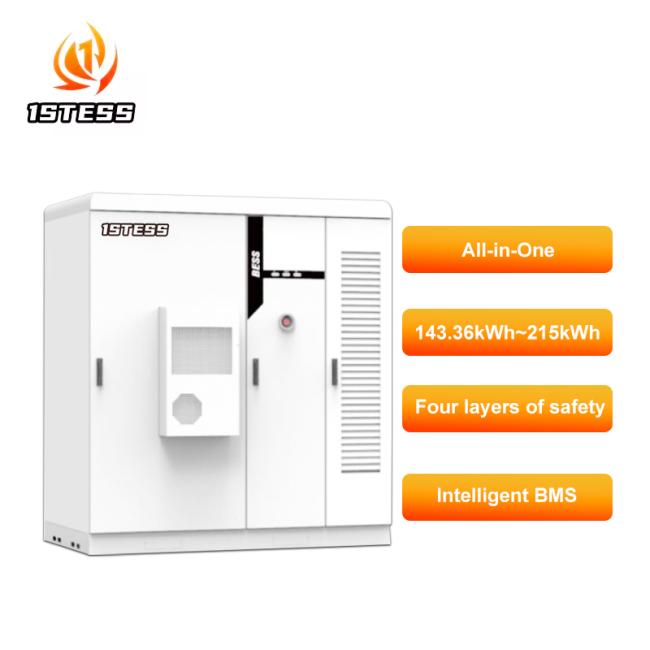

In One Solar Battery Energy Storage Container Solar Power System System Off Grid Customized Lithium Lifepo4 All 400v 60kw 215kwh



Commercial and Industrial Energy Storage Systems Overview

Commercial and industrial energy storage systems are advanced solutions designed to store electrical energy for industrial and commercial applications. These systems aim to enhance energy efficiency, reduce costs, and improve energy reliability by integrating renewable energy sources and advanced storage technologies.

Key Features:



  1. High-Efficiency Storage:

    • Utilizes advanced storage technologies such as lithium-ion batteries and sodium-sulfur batteries, which offer high energy density and long cycle life for effective energy storage and release.
  2. Demand Response Management:

    • Provides real-time monitoring and intelligent management to optimize energy usage, reduce peak demand during high-cost periods, and lower electricity bills.
  3. Renewable Energy Integration:

    • Integrates seamlessly with renewable energy systems like solar and wind, storing excess energy for later use, thereby promoting green energy utilization.
  4. Backup Power:

    • Acts as a reliable backup source during grid outages or interruptions, ensuring the continuous operation of critical equipment and systems.
  5. Flexibility and Scalability:

    • Customizable and scalable to meet the specific needs of various businesses, accommodating different sizes and types of commercial and industrial applications.
  6. Environmentally Friendly:

    • Reduces reliance on conventional fossil fuels, lowers carbon emissions, and contributes to sustainable development.

Applications:

  • Manufacturing: Balances electricity demand during production processes, lowering operational costs.
  • Commercial Buildings: Optimizes energy usage in retail, hospitality, and office spaces to improve efficiency.
  • Data Centers: Provides stable power solutions to ensure equipment operation and data security.
  • Transportation: Supports electric vehicles and charging stations, promoting the growth of electric transportation.

Conclusion

Commercial and industrial energy storage systems offer an effective tool for optimizing energy management and improving operational efficiency in modern enterprises. As renewable energy becomes more prevalent and electricity markets evolve, these storage solutions will play an increasingly critical role in future energy strategies.



Model EnerArk2.0-NBN-P30 EnerArk2.0-NBN-P50 EnerArk2.0-NBN-P100
DC side Parameters
Cell type LFP-280Ah
Module model IP20S
Battery capacity range 143.36kWh~215kWh 143.36kWh~215kWh 215kWh
AC On-Grid Side Parameters
Grid connection type 3P4W
Charging/discharging power 30kW 50kW 100kW
Rated grid voltage AC 400V±15%
Frequency range 45Hz~55Hz
Rated AC output current 43A 72A 144A
Power factor 0.8(Leading)~0.8(Lagging)
Harmonics ≤3%(at rated power)
AC off-grid side parameters
Load type 3P4W
Rated output power 30kW 50kW 100kW
Rated output yoltage AC400V±1%
Rated output frequency 50Hz
Rated current 43A 72A 144A
Frequency accuracy 0.2Hz
General Parameters
Dimensions (W*H*D) 1900mm*2100mm*1330mm
Packing size(W*H*D) 2100mm*2244mm*1500mm
Maximum weight 2500kg
Degree of protection IP55(Battery Cabinet)IP34(Electrical Cabinet)
Cooling method type Battery Cabinet (air conditioner)&Electrical Cabinet (forced air cooling)
Fire fighting system FM200 automatic fire extinguishing
Anti-corrosion grade C3
Relative humidity 0-95%(non-condensing)

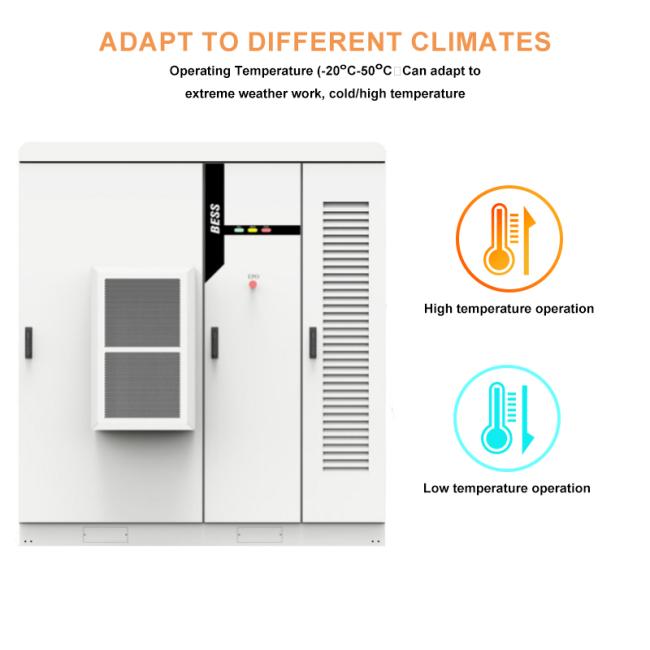

Operating temperature* -20℃~50℃
Altitude** <2000m
Noise level ≤75dB
Communication interface RS485,Ethernet
Communication protocol Modbus RTU,Modbus TCP/IP
Product standard warranty 5 years,6000 cycles(0.5C,95%DOD,EOL:70%)

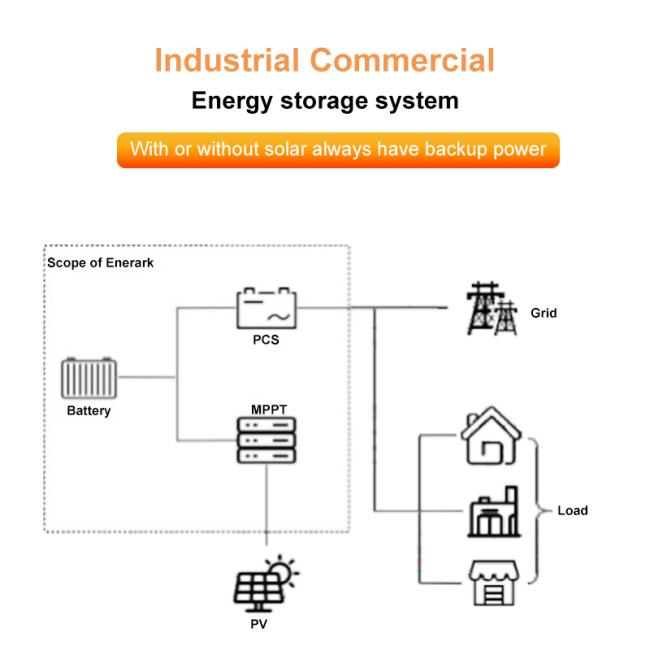

PV Side Parameters (Optional)
Maximum PV input power 30kW/60kW 30kW/60kW/90kW/120kW
MPPT voltage range 200V-850V 200V-850V
Number of MPPTs 1/1 1/1/2/2
Number of PV inputs 1/1 1/1/2/2
Maximum input current 100A/200A 100A/200A/300A/400A



Certifications

CE(IEC61000,IEC62619,IEC62477),UN3480,UN38.3,MSDS

Converter:UK G99,VDE4105,EN50549

Cell:IEC62619,UL1973,UL1642,UL9540A
