33% ZrO2 Content AZS Blocks for Glass Furnace Fused Cast Refractory 's Used Electrocast
China fused cast refractory manufacturer the second hand Electrocast used AZS blocks used for glass furnace
The main refractory material used in the glass industry is fused cast azs refractory bricks. Henan Hongtai Kiln Refractory Co., Ltd. produces a large amount of fused zirconia corundum bricks, closely controls the process of batch composition, melting, pouring, annealing and other processes to ensure the production quality of each brick.
used azs refractory bricks/ reprocessed azs refractory bricks for glass furnace is a white solid formed by pure alumina powder and zircon sand containing 65% zirconia and about 34% silica in the electric furnace after being melted and injected into the model for cooling. Fused zirconia corundum brick is commonly known as white iron brick, also known as corundum-oblique zircon brick. The main chemical components are Al2O3 45%-50%, ZrO2 32%-44%, and SiO2 12-16%. The main mineral composition is oblique zircon (ZrO2), corundum (α-Al2O3) and glass phase. Oblique zircon crystals form the backbone of the brick, ZrO2 has a high melting point (2715°C), good chemical stability, and strong resistance to acidic and alkaline media, especially glass liquid.
Advantage of used azs refractory bricks/ reprocessed azs refractory bricks for glass furnac:
1. Raw material is corundum and baddeleyite eutecticum,high compression strength
2.Top high-temperature capablility.
3.Excellent thermal stability.
4.Low thermal conductivity
5.Powerful penetrating-proof capability.
6.Good erosion-resistance.
7.Strong resistant erosion stability to the glass liquid.
the second hand Fused Electrocast AZS blocks for glass furnace
| Phase composition | AZS33-Y | AZS36-Y | AZS41-Y |
| Baddeleyite | 34% | 36% | 41% |
| Al2O3 (α- corundum) | 49% | 47% | 45% |
| Glass phase | 17% | 17% | 14% |
| Items | AZS33-Y | AZS36-Y | AZS41-Y | |
| Chemical components | Al203 | Leavings | Leavings | Leavings |
|
| ZrO2 | 32-36% | 35-40% | 40-44% |
|
| SiO2 | 16.00% | 14.00% | 13.00% |
|
| Na2O | 1.45% | 1.45% | 1.30% |
|
| Fe2O3+TiO2+CaO+SiO2+MgO+NaO+K2O | 2.00% | 2.00% | 2.00% |
|
| FeO+TiO | 0.30% | 0.30% | 0.30% |
| Buck density | 3.75g/cm3 | 3.80g/cm3 | 3.95g/cm3 | |
| Apparent porosity | 1.5% | 1% | 1% | |
| Anti-erosion speed of glass liquid under static state (normal soda-lime glass, 1500℃×36h) | 1.60 | 1.50 | 1.30 | |
| Glass phase primary temperature | 1400℃ | 1400℃ | 1400℃ | |
| Bubble exhalation rate (normal soda-lime glass, 1300℃×10h) | 2.0% | 1.5% | 1% | |
| Glass phase exudation (1500℃×4h) | 2.0% | 3.0% | 3.0% | |
| Bulk Density | PT/QX | 3.45g/cm3 | 3.45g/cm3 | 3.55g/cm3 |
|
| ZWS | 3.60g/cm3 | 3.70g/cm3 | 3.85g/cm3 |
|
| WS | 3.70g/cm3 | 3.80g/cm3 | 3.95g/cm3 |
Henan hongtai kiln refractory co., LTD. : "quality first, reputation first, customer first: it is our aim."Scientific management, strong technical force, perfect testing means, advanced technological equipment and stable product quality are the guarantee of quality service.Henan hongtai kiln refractories co., LTD sincerely hopes to cooperate with you hand in hand and in good faith.
used azs refractory bricks/ reprocessed azs refractory bricks for glass furnace are applied for the top and bottom structure of melting chamber.Such as melting tank, the tank wall brick, the paving brick,the forehearths and so on.The high corrosion part shall be AZS 41#, such as the feeding part, the throat,the bubble brick, the furnace weir, the burner block, the tongue brick and the discharging part and so on.![]()

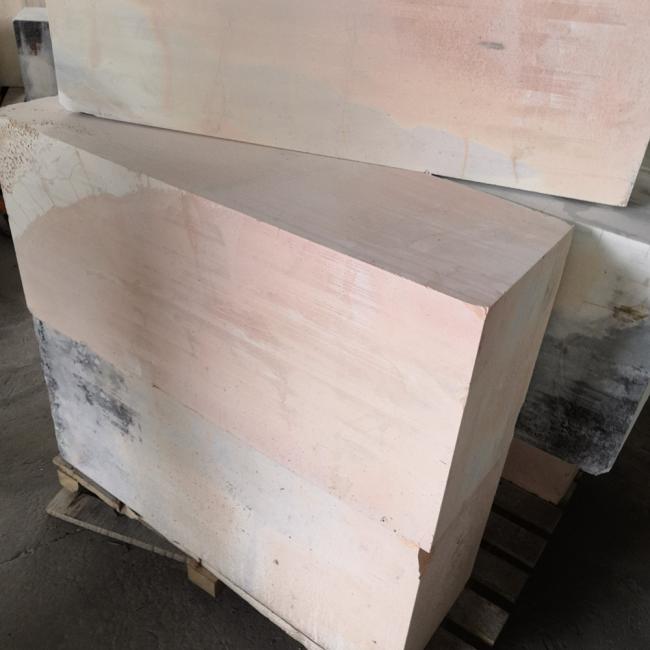

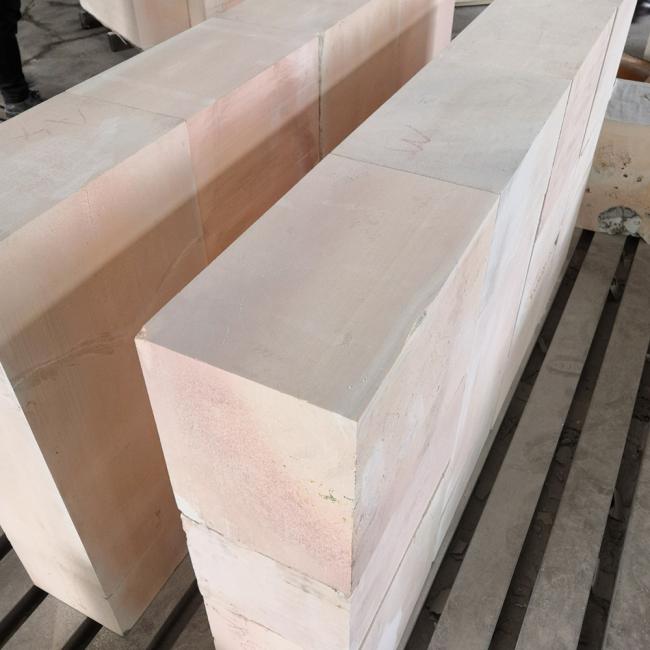

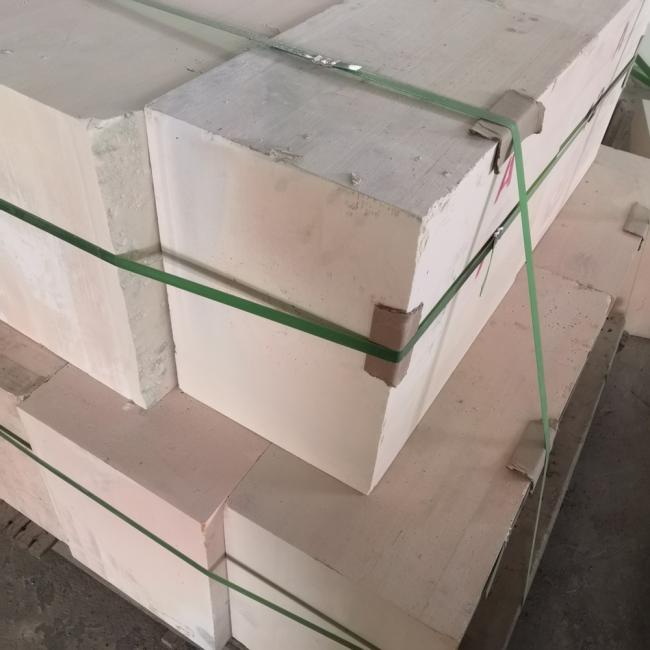

used azs refractory bricks/ reprocessed azs refractory bricks for glass furnace
Delivery:
15-30 days working day for large quantity. The shipment we will arrange as soon as possible. Of course, if it is a custom products, the shipping time will delay.
Sample:
Usually by EMS, DHL, UPS, TNT, FedEx. Anyway you like. Bulk order: Usually by sea.Payment: It can be through T/T, L/C at sight. The specific terms determined according to the quantity of the goods, etc.
Your inquiry related to our product & price will be replied within 24 hours.
Export:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be approved by our clients.
Hongtai Kiln Refractory has professional sales and after-sale service team who provide customers all-around service about product selection, transportation, installation and operation technology training etc. Now we have established cooperation relationship with many science and research units and our products have been sold to Vietnam, Thailand, South Korea, Pakistan, India, Germany, Italy, Russia, Argentina, colombia, Egypt and etc.
