The fused zirconia corundum azs brick is a white solid formed by pure alumina powder and zircon sand containing 65% zirconia and about 34%silica in the electric furnace after being melted and injected into the model for cooling. Fused zirconia corundum brick is commonly known as white iron brick, also known as corundum-oblique zircon brick. The main chemical components are Al2O3 45%-50%, ZrO2 32%-44%, and SiO2 12-16%. The main mineral composition is oblique zircon (ZrO2), corundum (α-Al2O3) and glass phase. Oblique zircon crystals form the backbone of the brick, ZrO2 has a high melting point (2715°C), good chemical stability, and strong resistance to acidic and alkaline media, especially glass liquid.
High temperature resistance glass kiln used cheap AZS 33,AZS36,AZS41 ER1681 standard fused cast AZS refractory brick series:
AZS-33
AZS-33 bricks are excellent in preventing the pollution of glass liquids. The possibility of causing glass stones, bubbles and basic glass phase precipitation is quite slim. It can be applied to the upper structure of melting pool, the tank wall corner tiles,paving bricks and other approaches as well.
AZS-36
AZS-36 bricks are the standard Fused Cast AZS Refractory bricks brick which boasts of the quality of particularly high corrosion resistance of glass liquids and low pollution. More than that, it has a balanced performance in the above two aspects. It can be applied to the direct access of glass furnace and glass liquids, such as melting tank wall corner tiles, paving bricks and charging door.

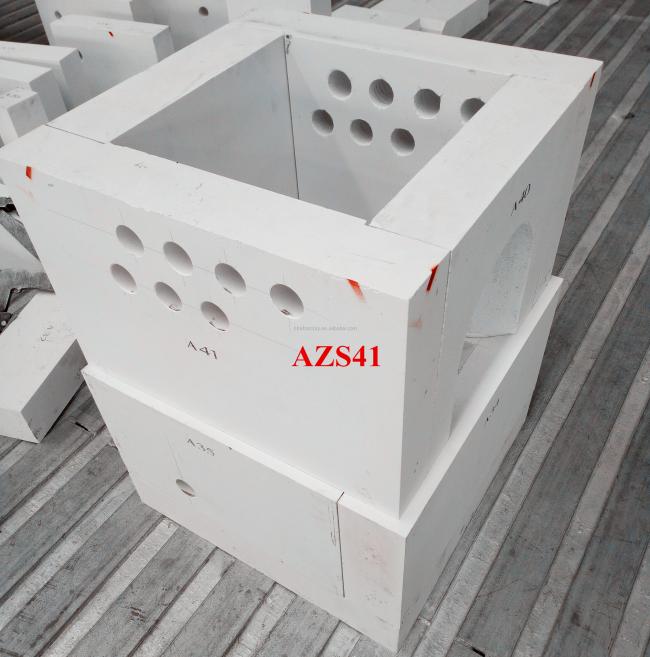

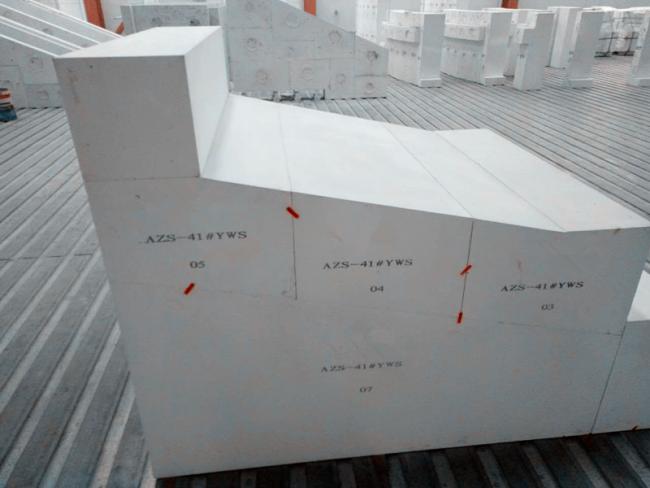

AZS-41
AZS-41 bricks are the best oxidated zircon corundum brick which possesses the quality of highest corrosion resistance of glass liquids and excellent low pollution of glass liquids. It can be applied to the locations of glass furnace which requires particularly high corrosion endurance, such as full-fused furnace, liquid pumps, furnace ridge, bubbling brick and bricks of charging door corners.
Refractory Tile Fused Cast AZS 33/36/41 Bricks for Glass Kiln ISO9001 2008 Certified
Price:
$2,000.00 - $6,000.00/tons
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Hongtai
Product Description
Product Description
China refractory products manufacturer fused cast azs 33/36/41 bricks for glass kiln used azs refractory tile
Product Technical
fused cast azs 33/36/41 bricks for glass kiln used azs refractory tile
Fused cast AZS brick Products chemical components and morale analysis
Items | AZS33-Y | AZS36-Y | AZS41-Y |
Al203 | Leavings | Leavings | Leavings |
ZrO2 | 32-36% | 35-40% | 40-44% |
SiO2 | 16.00% | 14.00% | 13.00% |
Na2O | 1.45% | 1.45% | 1.30% |
Fe2O3+TiO2+CaO+SiO2+MgO+NaO+K2O | 2.00% | 2.00% | 2.00% |
FeO+TiO | 0.30% | 0.30% | 0.30% |
Buck density | 3.75 | 3.80 | 3.95 |
Apparent porosity | 1.5% | 1% | 1% |
Anti-erosion speed of glass liquid at static state (soda-lime glass, 1500℃×36h) | 1.60 | 1.50 | 1.30 |
Glass phase primary temperature | 1400℃ | 1400℃ | 1400℃ |
Bubble exhalation rate (normal soda-lime glass, 1300℃×10h) | 2.0% | 1.5% | 1% |
Glass phase exudation (1500℃×4h) | 2.0% | 3.0% | 3.0% |
PT/QX | 3.45 | 3.45 | 3.55 |
ZWS | 3.60 | 3.70 | 3.85 |
WS | 3.70 | 3.80 | 3.95 |
Baddeleyite | 34% | 36% | 41% |
Al2O3 (α- corundum) | 49% | 47% | 45% |
Glass phase | 17% | 17% | 14% |
Packing & Delivery

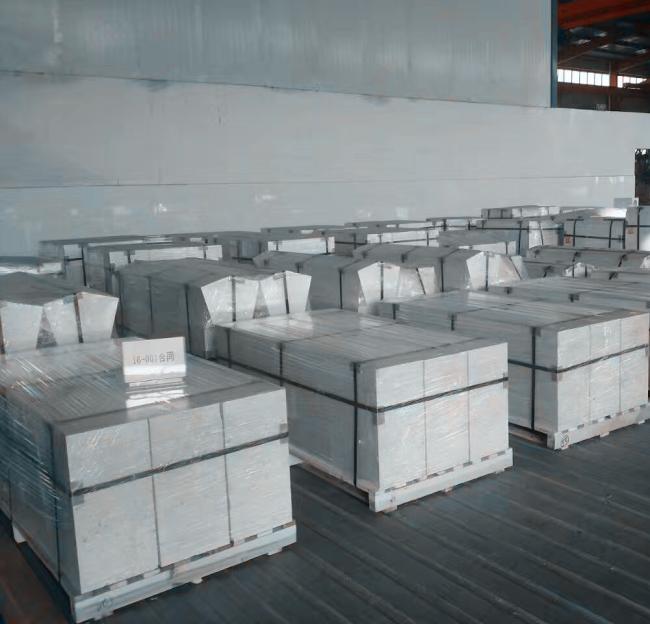

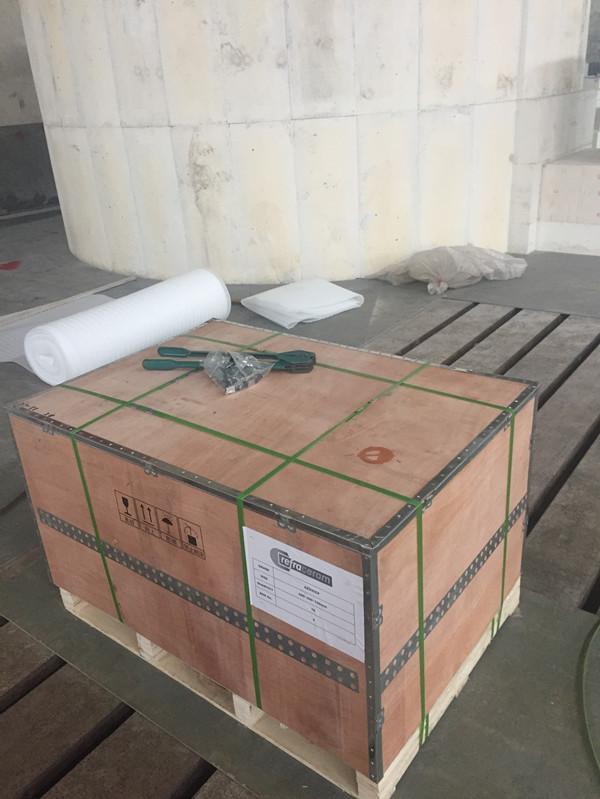

fused cast azs 33/36/41 bricks for glass kiln used azs refractory tile are packaged with fumigated wooden pallet, using paper or non-woven fabrics between layers separated,plastic shrink film protected outside.finally using straps. Or as your requirements.
15-30 days working day for large quantity. The shipment we will arrange as soon as possible. Of course, if it is a custom
products, the shipping time will delay.
Sample for AZS brick:
Usually by EMS, DHL, UPS, TNT, FedEx. Anyway you like. Bulk order: Usually by sea.Payment: It can be through T/T, L/C at sight.
The specific terms determined according to the quantity of the goods, etc.
Your inquiry related to our product & price will be replied within 24 hours.
Export of AZS brick:
Our products have been exported to many countries: Australia, Chile, USA, Russia, UK, Indonesia, etc., good quality have be
approved by our clients.
