Honeycomb Ceramic Plate Thermal Regenerator with High Alumina Bauxite Raw Material
Price:
$5.00 - $50.00/pieces
MOQ:
1000 pieces
Delivery Time:
Negotiable
Brand:
Hongtai
Product Description
Product Description

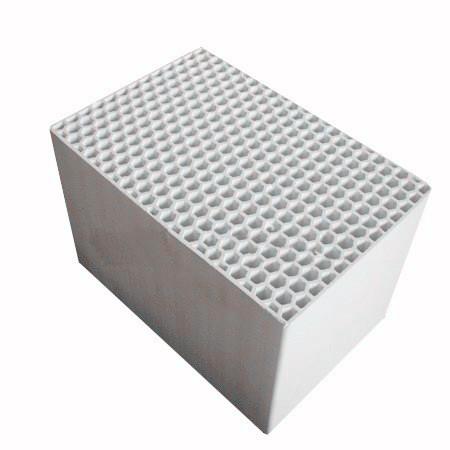

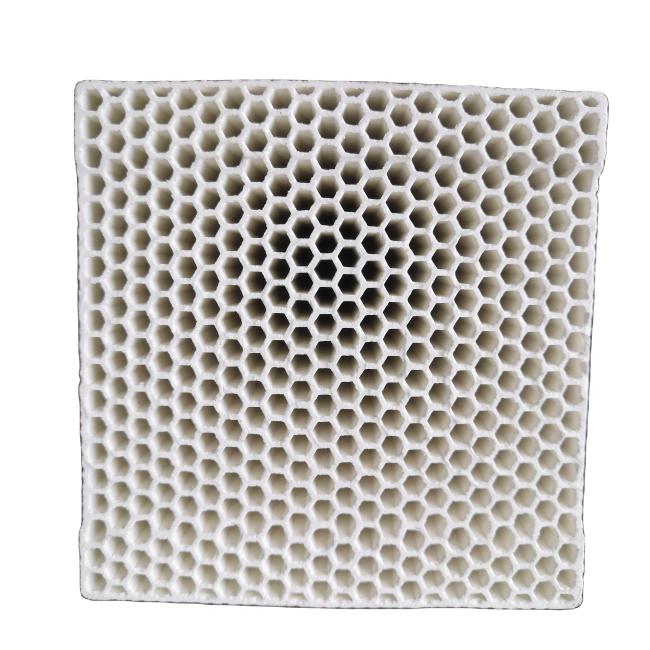

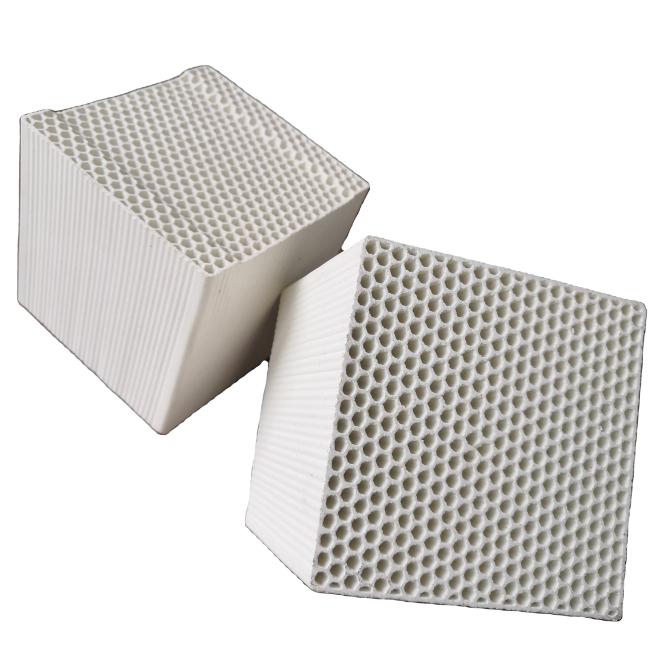

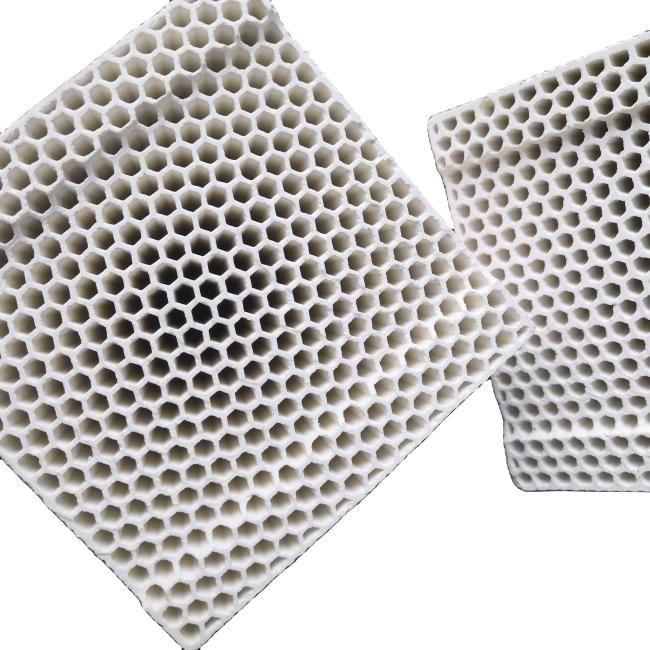

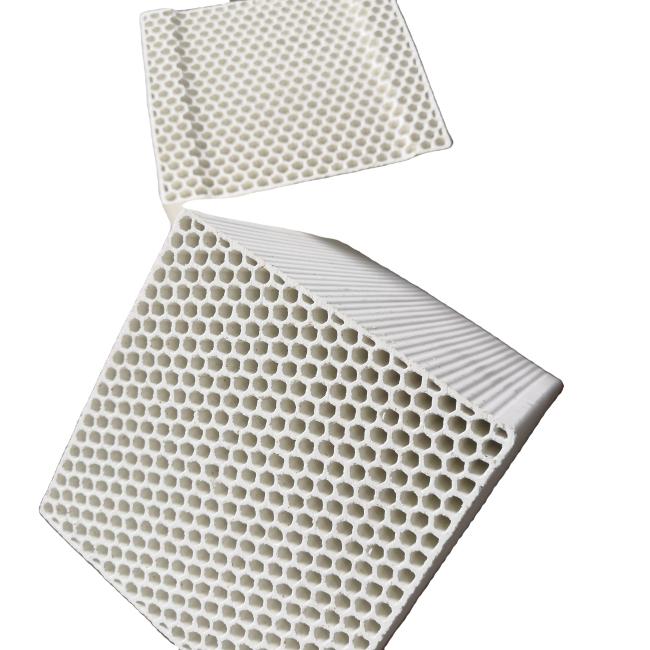

High Temperature Resistant Square Shape Honeycomb Ceramic Plate
High Temperature Resistant Square Shape Honeycomb Ceramic Plate with great energy-saving and environment protection.High Temperature Resistant Square Shape Honeycomb Ceramic Plate is to make two regenerators to absorb heat and send out heat alternatively through the reversal valve, recuperate the heat of the exhaust gas to the maximum extent, then heat the combustion-supporting air and coal gas to over 1000ºC, even the inferior fuel of lower calorific power can also catch fire steadily and burns high-efficiently. The heat storage honeycomb ceramic as heat exchange media is the key part of high temperature air combustion.
Specification
Item | Alumina | Dense Cordierite | Porous Cordierite | Dense Alumina | Mullite | Corundum mullite | ||
Density(g/cm3) | 2.0~2.3 | 2.1~2.5 | 1.7~2.0 | 2.4~2.7 | 2.0~2.5 | 2.3~2.7 | ||
Coefficient of heat expansion (×10-6K-1) (20~800ºC) | ≤5 | 900~1100 | ≤3.0 | ≤5 | ≤5 | ≤6 | ||
Specific Heat (J/Kg.K) (20~1000ºC) | 900~1150 | 900~1100 | 900~1150 | 900~1150 | 1000~1150 | 1100~1300 | ||
Thermal Conductivity (W/m.k) (20~1000ºC) | 1.5~2.0 | 1.5~2.5 | 1.2~1.8 | 1.5~2.5 | 1.5~2.0 | 1.5~2.5 | ||
Impact Thermal Resistance(ºC/min) | ≥450 | ≥500 | ≥500 | ≥450 | ≥500 | ≥450 | ||
Max. Working Tem.(ºC) | ≥1350 | 1320 | 1320 | 1350 | 1450 | 1550 | ||
Water absorption(%) | 15~25 | ≤1 | 1320 | ≤1 | 15~25 | 15~25 | ||
Compressive strength(MPa) | A axis | ≥32 | ≥29 | ≥34 | ≥36 | ≥28 | ≥39 | |
B axis | ≥32 | ≥6 | ≥8 | ≥8 | ≥8 | ≥10 | ||
Chemical composition(%) | SiO2 | 55~65 | 25~38 | 28~38 | 55~65 | 60~70 | 70~80 | |
SiO2 | 25~35 | 50~60 | 45~55 | 25~35 | 25~35 | 15~25 | ||
MgO | 1~3 | 5~10 | 12~14 | 3~5 | 0~1 | 0~2 | ||
others | <5 | <5 | <5 | <5 | <5 | <5 | ||
Features of High Temperature Resistant Square Shape Honeycomb Ceramic Plate
1. Reduce the thermal loss of exhaust gas, and improve the efficiency of fuel to save energy as;
2. Enhance the burning temperature based on theory, improve the atmospheric burning, meet the high temperature of thermal
equipment enlarge low calorific value fuel, especially the application range of blast furnaces, improve the efficiency of
calorific value fuel and reduce the emissions from low calorific value coal gas;
3. Improve the terms of heat exchange in hearths, increase the output of equipment, enhance the quality of products and cut down
on reinvesting in equipment;
4. Reduce the exhaust emission of thermal equipment, alleviate the air pollution and improve the environment.
2. Enhance the burning temperature based on theory, improve the atmospheric burning, meet the high temperature of thermal
equipment enlarge low calorific value fuel, especially the application range of blast furnaces, improve the efficiency of
calorific value fuel and reduce the emissions from low calorific value coal gas;
3. Improve the terms of heat exchange in hearths, increase the output of equipment, enhance the quality of products and cut down
on reinvesting in equipment;
4. Reduce the exhaust emission of thermal equipment, alleviate the air pollution and improve the environment.
Packing & Delivery
Packaging of High Temperature Resistant Square Shape Honeycomb Ceramic Plate
1.International standard seaworthy exportable packing.
2.Wooden pallet.
3.Wooden / bamboo case (box)..
4.Further packing information will be based on customer's requirements.
2.Wooden pallet.
3.Wooden / bamboo case (box)..
4.Further packing information will be based on customer's requirements.
Shipping of High Temperature Resistant Square Shape Honeycomb Ceramic Plate
1.The sample willl be send by International expresses FEDEX/DHL/UPS/TNT.
2.The goods are transport by shipping.
2.The goods are transport by shipping.
Payment Item :
1. Payment: T/T, Western Union,LC; Usually 30% deposits,70% balance before delivery or negotiations to solve.
2. MOQ: Usually 1Tons
3. Quality Warranty: 1 years
2. MOQ: Usually 1Tons
3. Quality Warranty: 1 years
Delivery time :
1.Stocks:Within 5-7 days after receive the deposit.
2.Customization:Within 15-30 days after receive the deposite.
2.Customization:Within 15-30 days after receive the deposite.
