Customized Cordierite / Mullite Honeycomb Refractory Brick with RTO

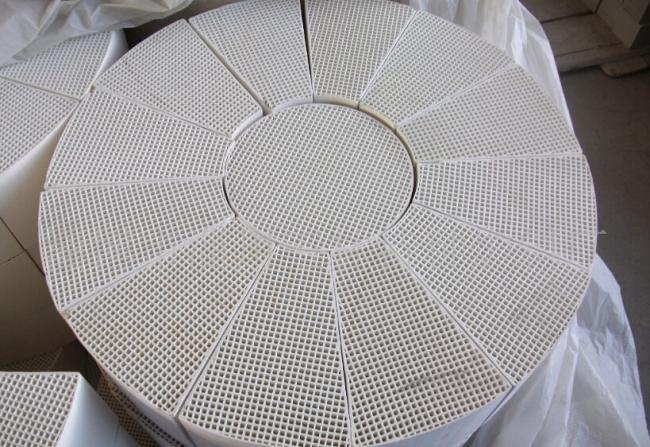

Cordierite / Mullite Honeycomb Refractory Brick
Honeycomb Brick Description
Honeycomb regenerators enhance efficiency, save energy, increase output and Improve quality, an important and effectivemeasure when dealing with energy and the Environment.They are applied on the thermal equipment of energy saving within Industry.
Honeycomb ceramic regenerators enhance efficiency, save energy, increase output and improve quality, an important and effective measure when dealing with energy and the environment.
Cordierite / Mullite Honeycomb Refractory Brick
Honeycomb Brick Chemical & Physical Analysis
| Chemical & Physical index | Cordierite | Dense Cordierite | Cordierite- mullite | Mullite | Corundum-mullite | |
| Chemical Composition (%) | SiO2 | 45~55 | 45~55 | 35~45 | 25~38 | 20~32 |
| AI2O3 | 30~38 | 33~43 | 40~50 | 50~65 | 65~73 | |
| MgO | 10~15 | 5~13 | 3~13 | - | - | |
| K2O+Na2O | <1.0 | <1.0 | <1.0 | <1.0 | <1.0 | |
| Fe2O3 | <1.5 | <1.5 | <1.5 | <1.5 | <1.5 | |
| Thermal Expansion Coefficient 10-6/K-1 | <2 | <4 | <4 | <5 | <7 | |
| Specific Heat J/kg·K | 830~900 | 850~950 | 850~1000 | 900~1050 | 900~1100 | |
| Working Temperature ºC | <1300 | <1300 | <1350 | <1450 | <1500 | |
| PS: we also can make products at your request and actual operating condition. | ||||||
Honeycomb Brick Product Specifications
| Size(mm) | Hole Qty(N×N) | Hole density(cpsi) | Hole Diameter(mm) | Wall thickness(mm) | Porosity (%) |
| 150×150×300 | 5×5 | 0.7 | 27 | 2.4 | 81 |
| 150×150×300 | 13×13 | 4.8 | 9.9 | 1.5 | 74 |
| 150×150×300 | 20×20 | 11 | 6.0 | 1.4 | 64 |
| 150×150×300 | 25×25 | 18 | 4.9 | 1.00 | 67 |
| 150×150×300 | 40×40 | 46 | 3.0 | 0.73 | 64 |
| 150×150×300 | 43×43 | 53 | 2.79 | 0.67 | 64 |
| 150×150×300 | 50×50 | 72 | 2.4 | 0.60 | 61 |
| 150×150×300 | 59×59 | 100 | 2.1 | 0.43 | 68 |
Cordierite / Mullite Honeycomb Refractory Brick
Honeycomb Brick Characters
Low heat expansion
High specific heat capacity
High specific surface area
Low pressure drop
Low thermal resistance
Good thermal conductivity
Honeycomb Brick Functions
1.Reduce the thermal loss of exhaust gas, and improve the efficiency of fuel to save energy as.
2.Enhance the burning temperature based on theory, improve the atmospheric burning, meet the high temperature of thermal equipment enlarge low calorific value fuel, especially the application range of blast furnaces, improve the efficiency of calorific value fuel and reduce the emissions from low calorific value coal gas.
3.Improve the terms of heat exchange in hearths, increase the output of equipment, enhance the quality of products and cut down on rein vesting in equipment.
4.Reduce the exhaust emission of thermal equipment, alleviate the air pollution and improve the environment.
Cordierite / Mullite Honeycomb Refractory Brick
Honeycomb Brick Application
> Regenerative Thermal/Catalytic Oxidizer (RTO/RCO) are used to destroy
> Hazardous Air Pollutants (HAPs), Volatile Organic Compounds (VOCs) and
> odorous emissions etc, which are extensively applied in the fields of automotive
> paint, chemical industry, Electronic & Electric Manufacturing industry, Contact
> Combustion System, mining industry and so on.Honeycomb Brick is
> pecified as structured regenerative media of RTO/RCO.
Cordierite / Mullite Honeycomb Refractory Brick
Why Choose us?
Our Honeycomb Brick have passed the ISO international certified. High purity raw material, scientific formula, advanced technology and professional guide all contribute to our qualified azs Bricks production. Over 30 years producing and marketing experience, we have developed stable customer base overseas and kept long-term cooperation. Need refractories for high temperature furnace fuel? Contact us, We will never let you down.
