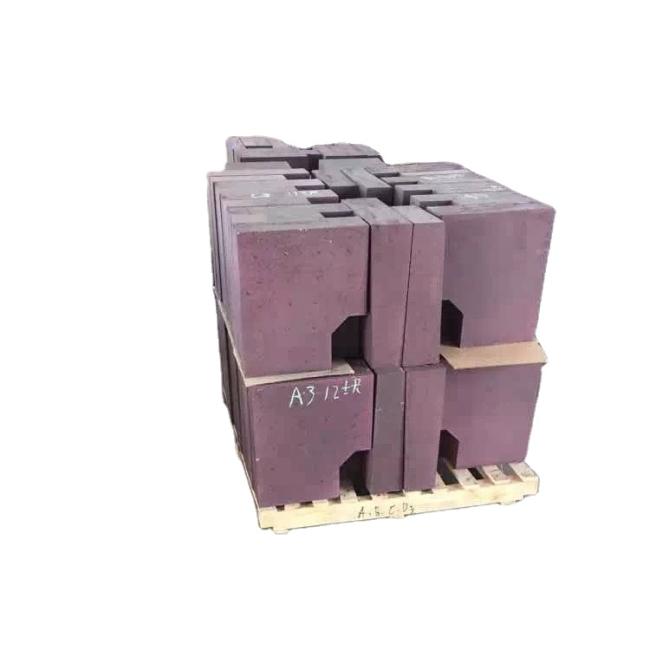

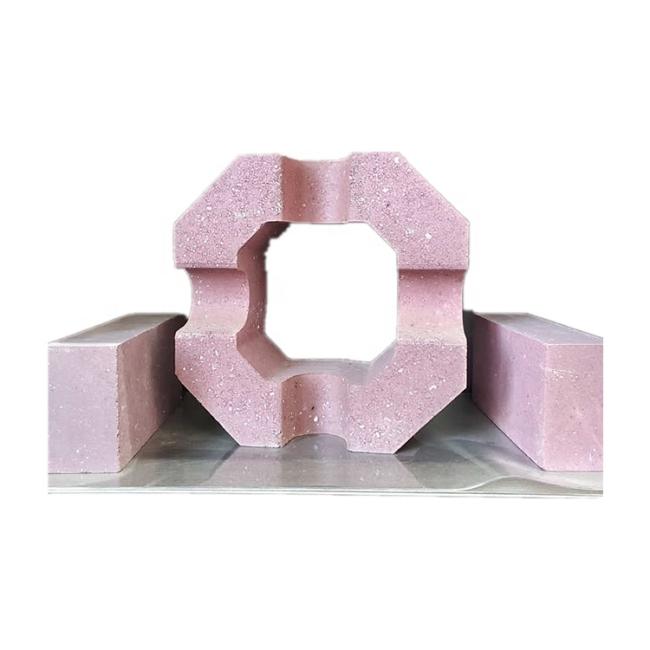

Regenerator Alumina Porcelain Ceramic Honeycomb Refractory Checker Brick with MgO Content
Price:
$800.00 - $1,500.00/tons
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
HongTai
Product Description
Product Description
Chrome Corundum Bricks Definition and Characteristics Chrome corundum bricks are high-grade refractory materials that contain chromium oxide (Cr₂O₃), known for their outstanding high-temperature performance and chemical stability. These bricks are primarily composed of α-Al₂O₃ (corundum) and Cr₂O₃, blended in specific proportions and manufactured through high-temperature sintering or molten casting processes. Manufacturing Process The production of chrome corundum bricks typically involves two methods: sintering and molten casting. Sintered chrome corundum bricks are made by mixing pure alumina and chromium oxide powders along with some chrome corundum clinker powder, then sintered at high temperatures. Molten cast chrome corundum bricks are produced by melting the raw materials, pouring them into molds, and cooling them until solidified.
Performance Advantages High-Temperature Stability: Chrome corundum bricks excel in high-temperature environments due to the formation of a continuous solid solution between Cr₂O₃ and Al₂O₃, resulting in superior high-temperature properties compared to pure corundum products. Erosion Resistance: They exhibit good resistance to both acidic and basic erosive media, particularly excelling in petrochemical gasification furnace applications. Thermal Shock Resistance: They possess good thermal shock resistance, capable of maintaining structural integrity in environments with sudden temperature changes. Mechanical Strength: High density and strength enable them to withstand heavy loads and abrasion. Low Impurity Content: High-quality chrome corundum bricks require low silicon, iron, and alkali metal content, ensuring purity and performance. Application Areas Chrome corundum bricks find extensive application in industries such as steelmaking, petrochemicals, glass, and ceramics for high-temperature equipment, such as steel ladle linings, continuous casting systems, petrochemical gasification furnaces, and glass melting furnace walls, especially where resistance to high temperatures and chemical erosion is required. Environmental and Economic Considerations Using chrome corundum bricks helps extend the service life of industrial facilities, reducing maintenance and replacement frequencies, thereby lowering overall operational costs. Additionally, due to their excellent chemical stability, they minimize potential environmental pollution. In summary, chrome corundum bricks, with their unique chemical and physical properties, have become indispensable high-performance refractory materials in modern industrial high-temperature applications.
The parameter of Chrome corundum brick | ||||||
Item | Chrome-Corundum Brick | Chrome-Corundum Brick | Chrome-Corundum Brick | |||
Al2O3% | ≤38 | ≤68 | ≤80 | |||
Cr2O3% | ≥60 | ≥30 | ≥12 | |||
Fe2O3% | ≤0.2 | ≤0.2 | ≤0.5 | |||
Bulk density,g/cm3 | 3.63 | 3.53 | 3.3 | |||
Cold Crushing strength MPa130130120 | 130 | 130 | 120 | |||
Refractoriness under Load (0.2MPa ℃)170017001700 | 1700 | 1700 | 1700 | |||
Permanent Linear Change(%) 1600°C×3h±0.2±0.2±0.2 | ±0.2 | ±0.2 | ±0.2 | |||
Apparent porosity %141618 | 14 | 16 | 18 | |||
ApplicationHigh temperature industrial furnaces | High temperature industrial furnaces | |||||
Production progress
Application
click here to get FREE SAMPLES
Company Profile
Henan Hongtai Kiln Refractory Co., Ltd. is established in 2002, located in Xinmi City, 40kilometers southwest of Zhengzhou City in Henan Province, close to Jingguang, Longhai railway lines, with road transport facilities. Rich resources of Refractory materials,adequate and qualified fuel in this area, provide unique conditions for refractory production, shipping and refractory industry development. Main products include different kinds of refractory brick:Fire Clay Brick, High Alumina Brick, Light Weight Insulating Brick,Corundum Brick,Mullite Brick,AZS Bricks, Refractory Balls ,Refractory concrete,refractory castable,Acid resistant brick etc.They are widely used in Iron and steel, Nonferrous metals, Building materials(Cement,Glass,Ceramic),Petrochemical,Energy & Incineration etc industries. Our products have been exported to India,Turkey,Vietnam,Malaysia and Kazakhstan etc.
Our Services
1. We have thirty years experience in producing refractory products. All our products shall be tested qualified before we send them out.
2.Annual supply:
Our company has passed ISO9001 quality management system certification and SGS certification. And the annual supply of shaped and unshaped refractory product is 28, 800-35, 000 tons.
3.Export experiences:
we have gained a global sales network reaching Russia, Korea, Vietnam, Pakistan, Bulgaria, French, India, Egypt,Congo,Angola, South Africa, and so on.
4. Production equipment:
Production and testing equipments are new, complete and automated or semi- automated. Such modern facilities and equipments have
provided the fine technical guarantee for the production and testing.
5. Testing equipment:
Our company's testing equipments as follows:
High Temperature RUL Tester
Bulk Density Tester
The Pressure Tester
Refractoriness Tester
2.Annual supply:
Our company has passed ISO9001 quality management system certification and SGS certification. And the annual supply of shaped and unshaped refractory product is 28, 800-35, 000 tons.
3.Export experiences:
we have gained a global sales network reaching Russia, Korea, Vietnam, Pakistan, Bulgaria, French, India, Egypt,Congo,Angola, South Africa, and so on.
4. Production equipment:
Production and testing equipments are new, complete and automated or semi- automated. Such modern facilities and equipments have
provided the fine technical guarantee for the production and testing.
5. Testing equipment:
Our company's testing equipments as follows:
High Temperature RUL Tester
Bulk Density Tester
The Pressure Tester
Refractoriness Tester
Certificate
Packing&Shipping
Packing Details of Abrasive Material Brown Fused Alumina for Sandblasting and Polishing
1. In 25kg plastic woven bags.
2. In 1000kg big bag.
3. 40 x 25kg plastic woven bags in one big bag.
4. 40 x 25kg plastic woven bags on pallet.
5. 40 x 25kg paper bags on pallet.
6. According to client's special requirement
2. In 1000kg big bag.
3. 40 x 25kg plastic woven bags in one big bag.
4. 40 x 25kg plastic woven bags on pallet.
5. 40 x 25kg paper bags on pallet.
6. According to client's special requirement
Shipping Details of Abrasive Material Brown Fused Alumina for Sandblasting and Polishing
Payment Item :
1. Payment: T/T, Western Union,LC; Usually 30% deposits,70% balance before delivery or negotiations to solve.
2. MOQ: Usually 1Tons
3. Quality Warranty: 1 years
Delivery time :
1.Stocks:Within 5-7 days after receive the deposit.
2.Customization:Within 15-30 days after receive the deposite.
1. Payment: T/T, Western Union,LC; Usually 30% deposits,70% balance before delivery or negotiations to solve.
2. MOQ: Usually 1Tons
3. Quality Warranty: 1 years
Delivery time :
1.Stocks:Within 5-7 days after receive the deposit.
2.Customization:Within 15-30 days after receive the deposite.
FAQ
Q1: Are you a manufacturer or trader ?
A1: Manufacturer, some time we help our clients to purchase relevant products as a trader.
Q2: What's the MOQ?
A2. No limitation.
Q3: Can we visit your factory?
A3: Of course ,welcome at any time,seeing is believing
Q4: What's your payment terms?
A4: Negotiation, Accoridng to your inquiry products quality and quantity .
Q5: Did your factory accept customization ?
A5: Professional technology teams and engineers all can satisfy you.
Q6: How do you guarantee quality?
A6: For every production processing,we have complete QC system for the chemical composition and Physical properties.After
production,all the goods will be tested ,and the quality certificate will be shipped along with goods. Accept SGS inspection or any third party specification.
A1: Manufacturer, some time we help our clients to purchase relevant products as a trader.
Q2: What's the MOQ?
A2. No limitation.
Q3: Can we visit your factory?
A3: Of course ,welcome at any time,seeing is believing
Q4: What's your payment terms?
A4: Negotiation, Accoridng to your inquiry products quality and quantity .
Q5: Did your factory accept customization ?
A5: Professional technology teams and engineers all can satisfy you.
Q6: How do you guarantee quality?
A6: For every production processing,we have complete QC system for the chemical composition and Physical properties.After
production,all the goods will be tested ,and the quality certificate will be shipped along with goods. Accept SGS inspection or any third party specification.
