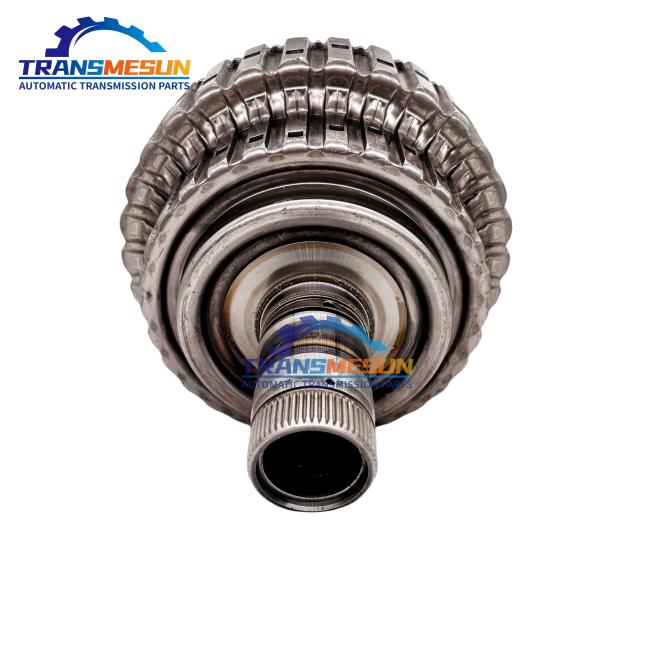

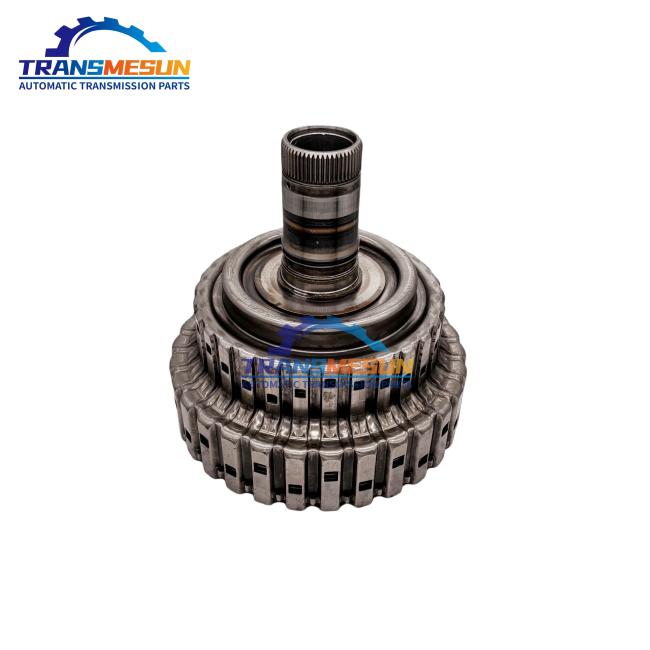

Clutch Drum Assembly For Direct Gear "B" Of 6R60 6R75 And 6R80 Automatic Transmissions

**6R80 Direct Clutch "B" Drum Assembly :

1. **Function** – Engages **3rd, 5th, and 6th gears** by locking planetary components via hydraulic pressure.

2. **Key Features** –
   - **High-strength aluminum drum** with integrated clutch packs.
   - **Sintered metal friction plates** for heavy-duty use (towing/performance).

3. **Common Failures** –
   - **Seal leaks** (causing slippage or delayed shifts).
   - **Drum cracking** (rare, but seen under extreme load).
   - **Burnt clutches** (from overheating or fluid breakdown).

4. **Diagnosis** – Check for **DTCs (P0775/P0733)** and inspect fluid for debris.

**Critical Note:** Requires **Mercon SP/ULTRA** fluid – improper fluid accelerates wear.
