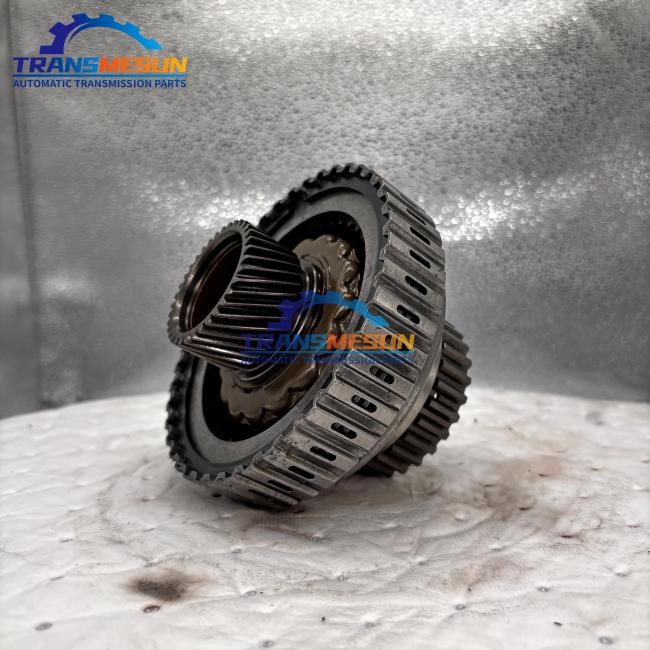

The U151F automatic transmission low gear clutch drum assembly 3420428011 is applicable to Toyota Hanlan Da

Function: Engages low/reverse gears by actuating multi-plate clutch packs in planetary gearset applications (common in 4WD/RWD transmissions).

Key Components:

• Drum Body: Hardened aluminum or steel with precision splines for clutch plate engagement

• Integrated Piston: Hydraulically actuated with reinforced seals for high-pressure apply (60-100 psi)

• Bleed Channels: Prevent clutch drag during release

Failure Modes:

• Spline Wear: Causes incomplete clutch engagement (slippage in low gear)

• Piston Seal Leaks: Results in delayed reverse engagement

• Drum Cracks: Thermal stress near weld points (sudden loss of drive)

Critical Checks:

1. Measure drum runout (<0.08mm)

2. Verify clutch clearance (1.0-1.8mm typical)

3. Inspect for blueing (overheating evidence)

Pro Tip: Always replace drum seals during rebuilds – reused seals have 80% higher failure rate.
