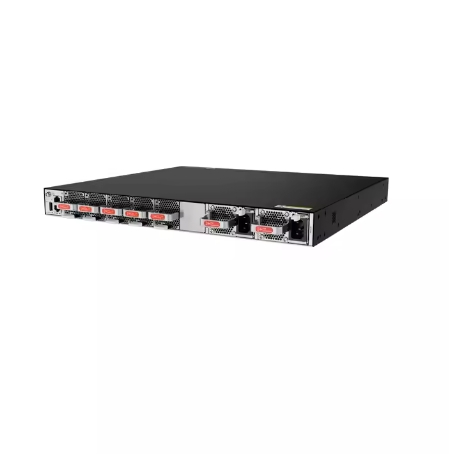

24 Ports CE8875-24BQ8DQ Network Switch with 200GE QSFP56 and 8 Ports 400GE QSFP-DD

CE8875-24BQ8DQ switch (24*200GE QSFP56, 8*400GE QSFP-DD, 2*AC power supply, 5*fan box, port side air intake)

02355SDX

CE8875-24BQ8DQ

02355SDV (CE8875-24BQ8DQ switch (24*200GE
QSFP56, 8*400GE QSFP-DD, without power supply and fan)) 02355SDY (CE8875-24BQ8DQ switch (24*200GE QSFP56, 8*400GE QSFP-DD, 2*AC power supply, 5*fan box, port side outlet))

Cabinet installation

43.6mm

420.0mm

442.0mm

1

12.17kg

9.71kg

9.16kg (with AC power supply and fan box, excluding optical modules. If multiple modules are supported, the maximum weight is used.)

6.74kg (without optical module, power supply and fan box)

522W (100% load, 24x200G+8x400G short-distance optical modules, normal temperature, dual AC power supplies)
770W (100% load, 24x200G+8x400G long-distance optical modules, high temperature, dual AC power supplies)

291W (100% load, 12x200G+4x400G ports copper cables, normal temperature, dual AC power supplies)
382W (100% load, 12x200G+4x400G ports short-distance optical modules, normal temperature, dual AC power supplies)

247W

- 1781 BTU/hour (100% load, 24x200G+8x400G short-distance optical modules, normal temperature, dual AC power supplies)
- 2627 BTU/hour (100% load, 24x200G+8x400G long-distance optical modules, high temperature, dual AC power supplies)

- 993 BTU/hour (100% load, 12x200G+4x400G copper cables, normal temperature, dual AC power supplies)
- 1303 BTU/hour (100% load, 12x200G+4x400G short-distance optical modules, normal temperature, dual AC power supplies)

Air cooling

843BTU/hour

AC pluggable, DC pluggable, HVDC pluggable

- 1200W AC & 240V DC power module: AC: 100V AC ~ 240V AC, 50/60Hz; DC: 240V DC
- 1200W DC power module: -48V DC ~ -60V DC; +48V DC

- 1200W AC & 240V DC power module: AC: 90V AC ~ 290V AC, 45Hz-65Hz; DC: 190V DC ~ 290V DC
- 1200W DC power module: -38.4V DC ~ -72V DC; +38.4V DC ~ +57V DC

- 1200W AC & 240V DC power module: 10A (100V AC ~ 130V AC); 8A (200V AC ~ 240V AC); 8A (240V DC)
- 1200W DC power module: 38A (-48V DC ~ -60V DC); 38A (+48V DC)

- 1200W AC & 240V DC power module: 1200W
- 1200W DC power module: 1200W

DRAM:8GB

64MB

4GB SSD

Can be used for log backup and USB flash drive deployment. This function is reserved and has not been enabled yet.

RJ45

24x200G QSFP56

8x400G QSFP-DD

This function is reserved and has not been enabled yet.

support

If you need this specification, please check the product brochure or contact the product salesperson to obtain it.

Supports 4+1 backup and hot backup of fan modules. When a single fan module fails, the system can still work normally for a short period of time. However, it is recommended to replace the failed fan module immediately.

1+1 backup

2

AC: Common mode 6kV, differential mode 6kV
DC: Common mode 4kV, differential mode 2kV
HVDC: Common mode 4kV, differential mode 2kV

Pluggable fan

5

Port-side air inlet/port-side air outlet is determined by the selected fan modules and power modules. The air ducts of the fan modules and power modules must be consistent.

-40°C～+70°C

0°C to 40°C (0m to 1800m)
Note: At altitudes of 1800m to 5000m, the maximum temperature specification decreases by 1°C for every 220m increase in altitude.

5%RH～95%RH, non-condensing

5%RH～95%RH, non-condensing

≤5000m

≤5000m

34.22 years

1.5 hours

Front-to-rear airflow: average 76.2 dB(A) (max: 79dB(A))
Rear-to-front airflow: average 73.1 dB(A) (max: 79.2dB(A))

Front-to-rear airflow: average 50.9dB(A) (max: 53.8dB(A))
Rear-to-front airflow: average 50.8dB(A) (max: 54.6dB(A))

0.999994996
