24-Port XH8110-24BQ8DQ Network Switch with 200GE QSFP56 and 8 400GE QSFP-DD Ports
XH8110-24BQ8DQ-B overview

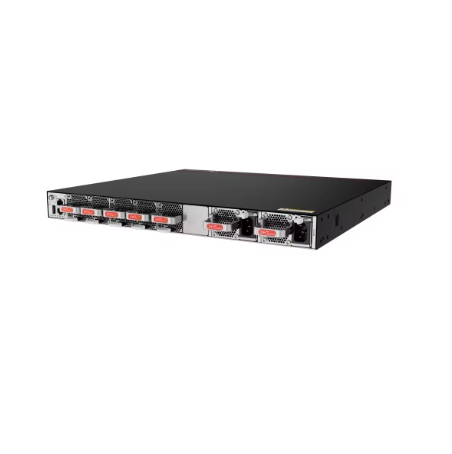

Huawei SXH8110-24BQ8DQ-B with 24*200GE QSFP56, 8*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Intake, is one of the Huawei XH8000 series switches.
Huawei XH8000 series switches are next-generation access switches that provide high performance and high port density for AI-powered data centers. They have an advanced hardware architecture and offer high-density 200GE and 400GE ports. They also support extensive data center service features and flexible airflow directions. Huawei XH8000 series switches are next-generation access switches that provide high performance and high port density for AI-powered data centers. They have an advanced hardware architecture and offer high-density 200GE and 400GE ports.
XH8110-24BQ8DQ-B appearance and structure
| 1. Ground screw |
2. Equipment serial number (ESN) and MAC address NOTE: You can scan the code to view the ESN and MAC address of the switch. |
3. Console port | 4. ETH management port (RJ45) | 5. USB port |
|
6. Five Fan slots Applicable fan modules:
|
7. Two Power supply slots Applicable power modules:
|
8. Twenty-four 200GE QSFP56 Ethernet optical ports | 9. Eight 400GE QSFP-DD Ethernet optical ports | 10. Three port-side mounting holes for mounting brackets |
| 11. Two middle mounting holes for mounting brackets |
12. Equipotential bonding Ground screws for a ground cable with a two-hole OT terminal |
13. Four power-supply-side mounting holes for mounting brackets | – | – |
