Rack Mount S5700 Series 48 Poe 10/100/1000base-T Enterprise Switch Private Mold NO
Price:
$1,300.00/pieces 1-9 pieces
MOQ:
1 unit
Delivery Time:
Negotiable
Brand:
H3C
Product Description
Products Description

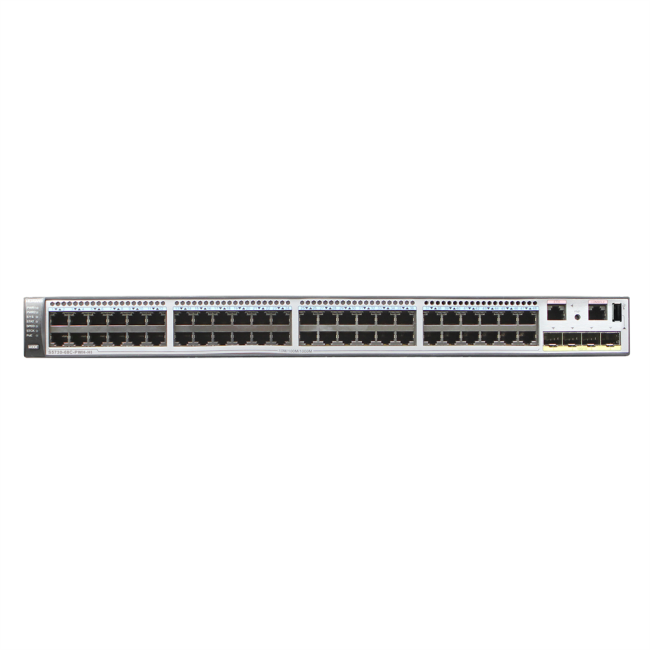

H3C S5730-68c-Pwh-Hi Switch
H3C S5730-68c-Pwh-Hi Switch
Item | H3C S5730-68c-Pwh-Hi Switch |
Memory (RAM) | 2 GB |
Flash | 1 GB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) | 48.31 years |
Mean time to repair (MTTR) | 2 hours |
Availability | > 0.99999 |
Service port surge protection | Common mode: ±7 kV |
Power supply surge protection | * Using 500 W AC or 1000 W AC power modules: ±6 kV in differential mode, ±6 kV in common mode * Using 650 W DC or 1150 W AC power modules: ±2 kV in differential mode, ±4 kV in common mode |
Dimensions (H x W x D) | * Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 424.7 mm (1.75 in. x 17.4 in. x 16.72 in.) * Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.8 mm (1.75 in. x 17.4 in. x 17.79 in.) When 1150 W power modules are installed, they stretch out from the chassis. Therefore, the total depth of the switch changes to 541.1 mm (21.3 in.). |
Weight (with packaging) | 8.7 kg (19.18 lb) |
Stack ports | 10GE SFP+ ports on the front panel, or 10GE ports or 40GE QSFP+ ports on the rear card |
RTC | Supported |
RPS | Not supported |
PoE | Supported |
Rated voltage range | 100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC |
Maximum voltage range | 90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC |
Maximum power consumption (100% throughput, full speed of fans) | 74 W (without card) |
