Ultra-thin Double-sided LED Poster Displays 8K LED display for Airports
Indoor Ultra-Thin Double-Sided LED Display Screen
Advertising Led Video Wall / Indoor Fixed LED Display
Ultra-Thin Double-Sided LED Window Display
Hanging LED screen for Shop Advertising
Double-Sided Full Color 4K LED Display Screen
Ultra Thin Double Side Indoor Hanging HD LED Video Wall
|
Pixel Pitch
|
P1.56
|
P1.95
|
P2.604
|
P2.976
|
|
LED Type
|
SMD1212(GOB)
|
SMD1515(GOB)
|
||
|
Physical density
(Dots/sqm)
|
409600
|
262144
|
147456
|
112896
|
|
Module Dimension(mm)
|
250x250
|
|||
|
Module Resolution
|
160x160
|
128x128
|
96x96
|
84x84
|
|

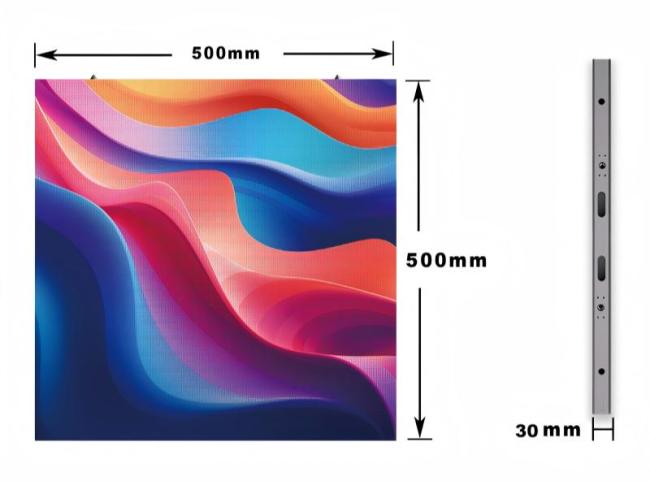

Panel size(mm)
|
500x500x30
|
|||
|
Maintenance
|
Front access
|
|||
|
Panel Material
|
Profile Aluminum
|
|||
|
Brightness(Nits)
|
600-3000
|
|||
|
Color temperature(K)
|
3200-9300 (Optional)
|
|||
|
View Angle
|
160°(H)/160°(V)
|
|||
|
Brightness /Color Uniformity
|
≥97%
|
|||
|
Contrast Ratio
|
10000:1
|
|||
|
The Max Power Consumption(W/㎡)
|
650
|
|||
|
Average Power Consumption(W/㎡)
|
100-240
|
|||
|
Protection Level
|
IP45
|
|||
|
Input Voltage
|
AC90~264V 50--60Hz
|
|||
|
IC Driving Mode(s)
|
1/40
|
1/32
|
1/32
|
1/28
|
|
Color Grey scale(bits)
|
14/16 (Optional)
|
|||
|
Refreshing Ratio(Hz)
|
7680
|
|||
|
Lifespan(hrs)
|
100,000hrs
|
|||
|
Work Temperature/Humidity
|
-20℃-60℃/10%RH-85%RH (Non Condensing)
|
|||
|
Storage Temperature/Humidity
|
-20℃-60℃/10%RH-98%RH (Non Condensing)
|
|||
The core advantages of Ultra Thin Double Sided LED Display are its lightweight and compact design, dual sided independent display, high efficiency and energy saving, flexible installation, and the ability to customize LED screen sizes. The double sided LED display can achieve double information/advertising value and is suitable for multiple scenarios such as business, transportation, cultural tourism, and office.
Ultra-thin led display advantage:
Lightweight, thin, and flexible to install
Our indoor ultra-thin LED display screen has a single-sided thickness of 24mm, and double-sided LED display screens are usually ≤ 30mm. The weight of a single box is light (such as 4.8kg/box, 23kg/㎡), greatly reducing the structural load-bearing requirements.
The double-sided LED display screen supports various installations such as lifting, glass pasting, embedded, column type, and mobile bracket, without the need for complex keels, and is suitable for narrow/irregular spaces.
Double sided independent display
The ultra-thin LED display screen can play different content synchronously/asynchronously on both sides, achieving "one screen dual use" and significantly improving space utilization and dissemination efficiency.
The ultra-thin double-sided LED display supports independent brightness/refresh rate/resolution settings, adapting to different viewing distances and environments.
High definition and smooth
Our indoor ultra-thin double-sided LED display screen adopts a high refresh rate (greater than 7680Hz), with no flicker or ghosting, and high-definition camera.
High brightness, high contrast, visible under strong light; The brightness supports automatic adjustment.
energy-saving and low-consumption
Indoor ultra-thin LED display screens adopt advanced common cathode circuit and other technologies, which save more than 30% energy compared to traditional screens, have low heat generation, natural heat dissipation, and do not require additional heat dissipation systems.
The ultra-thin LED display screen supports 24-hour continuous stable operation and can meet the needs of different scenarios.
Safe and durable, easy to maintain

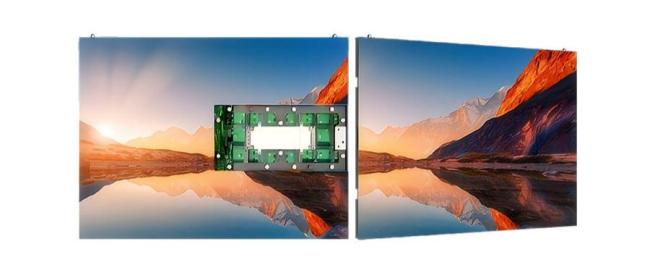

Lightweight design reduces the risk of falling, equipped with anti fall ropes and seismic components; The ultra-thin LED display adopts a modular structure, and a single fault can be quickly replaced. Full front maintenance method, easy installation, and simple maintenance.
The indoor ultra-thin LED double-sided display screen adopts advanced module GOB technology, and the module surface is waterproof, dustproof, and anti-collision, adapting to complex environments.
