Indoor Shelf Creative LED Display P1.8 Video Advertising Screen For Supermarket
Price:
Negotiable
MOQ:
10set
Delivery Time:
25-35 workdays
Brand:
H&S LED
Product Description
Indoor shelf LED display screen
Application:
shopping mall, large building glass wall, stage background led display, carnival, concert, exhibition, chain shops and clothes shop, even in bnak window, etc.
Parameters:
| Product Paramenters-SHELF LED DISPLAY | ||
| Mane | SHELF LED DISPLAY | |
| Model No. | P1.875 | |
| Size | 480*60mm / 720*60mm /Customized | |
| pixel pitch | 1.875mm | |
| lamp | SMD1515 RGB | |
| Module Size | 240*60mm | |
| Module Resolution | 128*32 dot | |
| Cabinet Dimension | 485*65*20mm | 725*65*20mm |
| Cabinet Resolution | 256*32 dot | 384*32 dot |
| Module arrangement | 2*1 | 3*1 |
| Pixel Density(dot/m2) | 264444 | |
| Brightness(cd/n2) | 500~800 | |
| Viewing Angle | H:160°/ V:160° | |
| planeness | <0.2mm | |
| Maximum contrast | >5000:1 | |
| Refresh Rate | ≥3840Hz | |
| Working Voltage | DC24V | |
| Maximum power | 13W/PCS | 19.5W/PCS |
| Average power | 4W/PCS | 6W/PCS |
| Environment temperature range | -20-60℃ | |
| Humidity(working) | 10-95%RH | |
| MTBF(Hours) | 50000 | |
| Life Time(Hours) | 100000 | |
SHELF LED DISPLAY

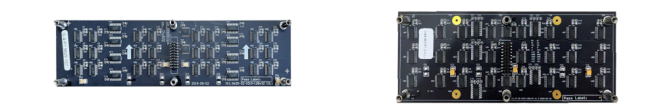

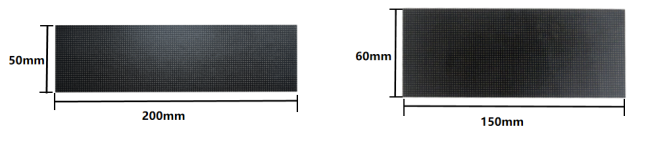

MODULE
Module Back Side
Module Back Side
Module Front Side
Module Front Side

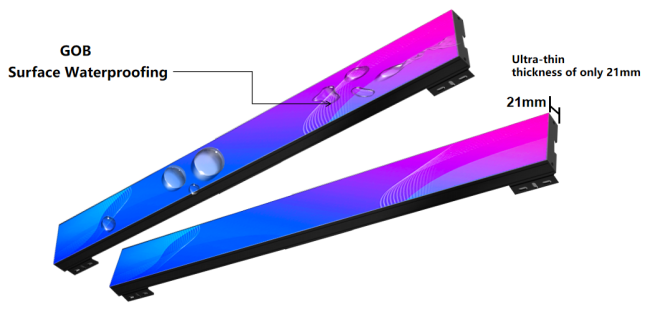

WATERPROOF

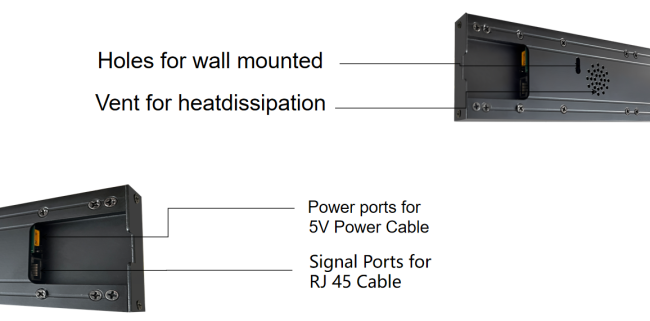

PRODUCT DETAIL

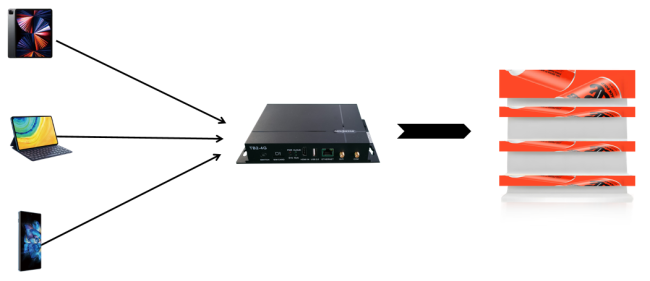

CONNECTION METHOD
H&S LED shelf led display router application connection diagram. Using playing software updates playlist to each display. Each screen also can be controlled and managed via LAN and Internet.

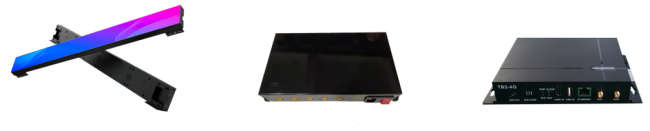

PACKING LIST
H&S LED Shelf LED Display Power Supply Box Controller

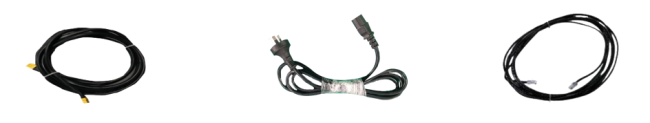

Power Cable With Screen Power Cable With Power Box Signal Cable

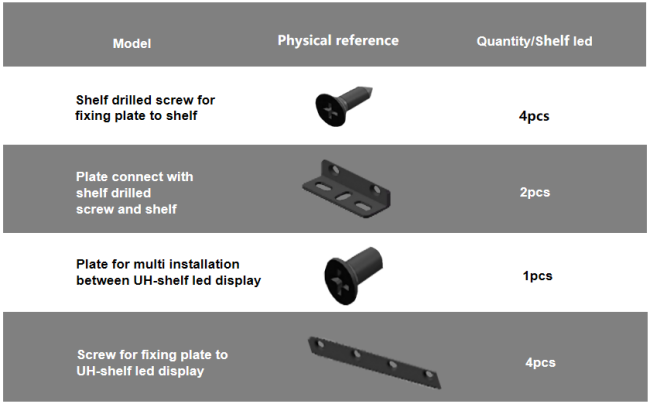

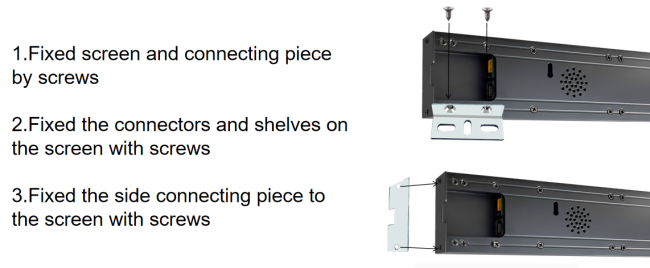

INSTALLATION METHOD

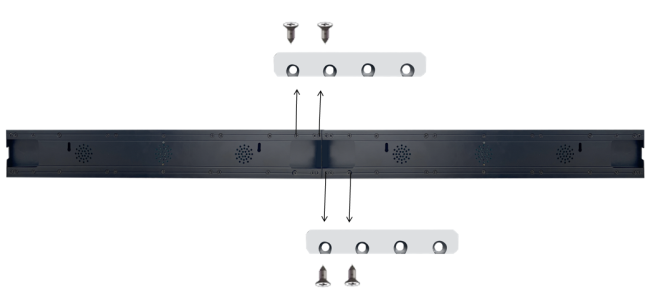

HOW TO STITCH TOGETHER SEAMLESSLY
Join screen with straight plate by M3x6 screws
