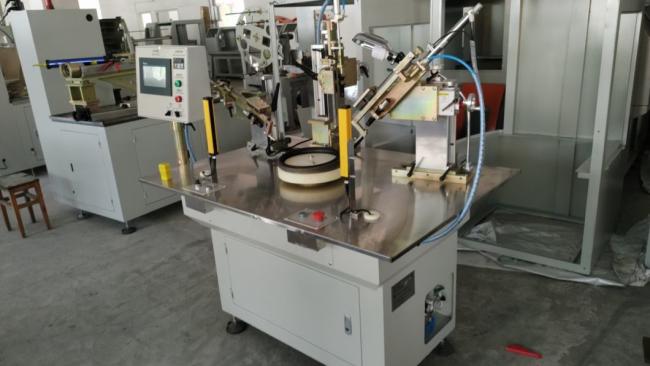

Horizontal Type Rubber Oil Seal Trimming Machine
Price:
Negotiable
MOQ:
1set
Delivery Time:
20-30days
Brand:
Mixer
Product Description
Application:
Rubber Oil seal Trimming Machine or round rubber Cup/ Seal trimming machine is used for kinds of rubber skeletons, rubber oil seal,rubber o ring, rubber packing cup, kinds of rubber washer and round rubber parts.
Main technical parameter for the rubber trimming machine:
Vacuum≤-0.035Mpa
circular run out of main spindle≤0.01mm
plane run out≤0.02mm
Speed of spindle: 0-3000r/min
cutting degree:-10°~100°
cutting range :10mm-300mm (adjustable)
Blade specification(ThickxWidexLength):2x4x75mm
Blade material:tungsten steel.
Total power comsumption: 1 KW
Voltage: 220V,single phase.
Weight: 300kg
Dimension:1020mm×700mm×1300mm
![Horizontal Type Rubber Oil Seal Trimming Machine]()
Rubber Oil seal Trimming Machine or round rubber Cup/ Seal trimming machine is used for kinds of rubber skeletons, rubber oil seal,rubber o ring, rubber packing cup, kinds of rubber washer and round rubber parts.
Main technical parameter for the rubber trimming machine:
Vacuum≤-0.035Mpa
circular run out of main spindle≤0.01mm
plane run out≤0.02mm
Speed of spindle: 0-3000r/min
cutting degree:-10°~100°
cutting range :10mm-300mm (adjustable)
Blade specification(ThickxWidexLength):2x4x75mm
Blade material:tungsten steel.
Total power comsumption: 1 KW
Voltage: 220V,single phase.
Weight: 300kg
Dimension:1020mm×700mm×1300mm
