Rubber Washer Cutting Machine
-Application:
Rubber Washer Cutting Machineis used for precise cutting of kinds of rubber&silicone gasket/ washer/ring-shaped tubular product.-Features:
1. When the cutting finishes, materials take off automatically, and through the collection boxes to gather the cut products.
2.Our Rubber Washer Cutting Machine adopts vacuum pump, realizing powerful vacuum absorption of the pipe/tube, so ensuring the finished cut product more precise.
3. Automatic air blowing function makes loading and unloading more convenient, greatly improving the working efficiency.
4. The Rubber Washer Cutting Machine adopts color LCD touch screen control, operation is simple.
5. All electrical components, pneumatic components are imported from abroad or domestic famous brand products, to ensure long-term use, reliability and stability of the new machine.
6. Use servo drive system to control both the blades, compared with pneumatic control, servo control is more stable working and higher cutting precision.
| Model | JCM200-1 | JCM200-2 | JCM200-4 |
| cutting efficiency | ≥60 times /min | ≥ 120 times /min | ≥200 times /min |
| Working rotation speed | 0─3000rpm | 0─3000rpm | 0─3000rpm |
| Cut precision | ≤±0.05 mm | ≤±0.05 mm | ≤±0.05 mm |
| Cut size | Rubber diameter:ф10-150mm (2)Cut length (standard):<=140mm; Lengthened type<=350 (3)Rubber wall thickness:<=25mm | (1)Rubber diameter: ф10─120mm Cut length (standard):<=140mm; Lengthened type<=280 Rubber wall thickness: <=25mm | (1)Rubber diameter: ф10─120mm Cut length (standard):<=140mm; Lengthened type<=280 Rubber wall thickness: <=25mm |
| Specification of blade | blade:ф60*ф25.4x0.3 | blade:ф60*ф25.4x0.3 | blade:ф60*ф25.4x0.3 |
| Compressed air | 20L/min | 30L/min | 30L/min |
| Air pressure | 0.5Mpa─0.8Mpa | 0.5Mpa─0.8Mpa | 0.5Mpa─0.8Mpa |
| Vacuum degree | ≤-0.035Mpa | ≤-0.035Mpa | |
| Power source | AC220V±5% | AC220V±5% | AC220V±5% |
| Total power | 1.4 KW | 2 KW | 3KW |
| Dimension | 1200x800x1210mm | 1600x900x1650mm | 1650x1100x1700mm |
| Total weight | 450kg | 650 | 880 kg |
The machine is packaged well by the stretch film first,and fixed professionally by the strong wooden case,ensuring the machine non damage during the long distance of land and sea transportation, and reach the clients factories safely.

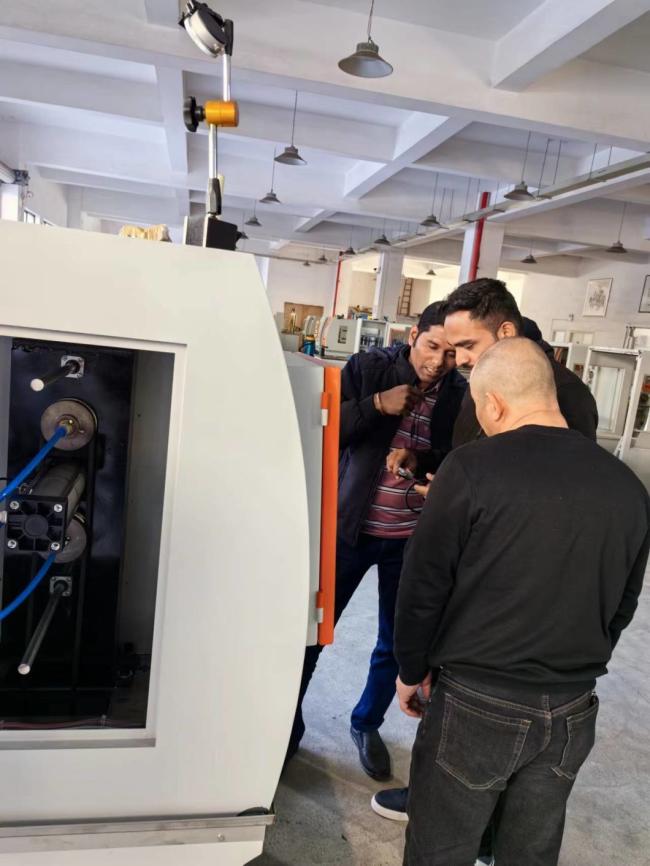

We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
