Oil Seal Metal Case/Shell Flanging Machine
Metal Cup Facing & Chamfering Machine:
It is applicable for facing & chamfering of metal parts such as metal case,metal sleeve,metal cup.
1.Automatic Feeding of Metal Cases on a Die for Facing or Chamfering. High Efficiency & precise processing.
2.Loading the Metal Cases manually in line in the feeding conveyor→ Metal Cases are delivered forward by the Conveyor → Robot Grip & Feeds Metal Case on the Collet → Automatic Facing or Chamfering→Finished Metal Cases are ejected out.
Technical specification:
Model:D30-100
Spindle spec: 0640
Motor power: 2.2KW-1450 RPM
Inverter: EM730-2.2KW
Spindle speed: 0-1200 RPM
Power system: pneumatic
Control system: single board computer microcomputer control
Processing range: diameter 30-100mm, height 5-30mm
Scope of application: flat machining&chamfering of round workpieces
Processing speed: 1000 PCS/Hr
Power supply: AC380V/50HZ
Dimension: L1.5xW1xH1.45 m
Weight:420KG

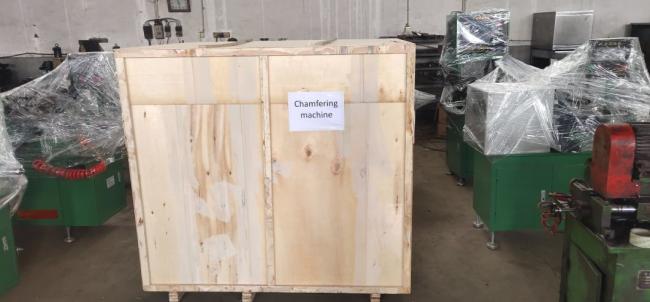

The oil seal metal case facing&chamfering machine is packaged well by strong wooden case,ensuring the machine non-damage during the long distance of land and sea transportation, and reach the clients factories safely.
We supply quick after sales service, including online consultation,instruction and also onsite face-face service if required by the clients.
We have professtional after sales serivce team who can give you satisfactory quick response,including technical questions,trouble-shooting,installation,etc.
Our business principle is that :
Move ahead along with the spirit of "Responsibility& Sincerity for Customers" and "Cooperative&Enterprising Team" to "Create a Better Future Together ".
It is our promise and duty to execute the 3 No worries for clients:
No worries before order,
No worries after order,
No worries in produciton.
