800KW Rubber Parts Water Cooling Conveyor Machine for Precise Temperature Control
Price:
$10,000.00 - $99,999.00/sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
MIXER/DUCHUAN
Product Description
Product Description

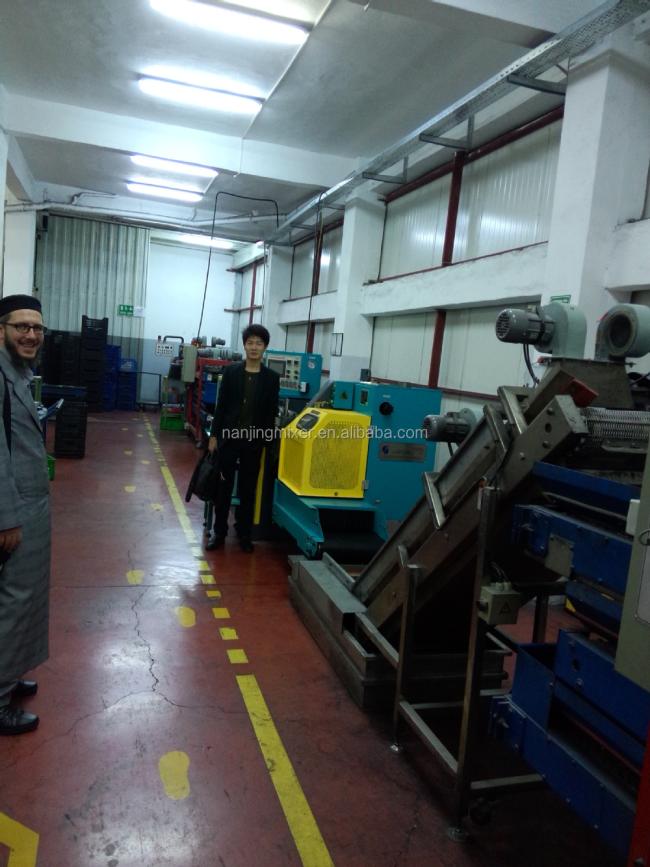

Rubber Parts cooling machine/Water cooling conveyor for rubber parts :
Water cooling conveyer is an auxiliary machine of the precision preformer to avoid stickiness and deformation of the rubber blanks. After cooling down with water cooling solution, and then with forcible cooling wind, the rubber blanks will become dry and solid. The feature of the machine is that the running speed can be adjusted by the stainless steel net curtain during the whole process to go with the cutting speed of the performer.
Specification
Items | Unit | LSS650 |
Sloping conveying (stainless steel) | ||
Conveying width | mm | 450 |
Distance of blank conveying (in water) | mm | 700 |
Conveying speed | m/min | 8.3 |
Volume of cooling wind | m3/h | 1620 |
Horizontal conveying | ||
Conveying width | mm | 450 |
Conveying speed | m/min | 1.6~3.2 |
Layer | 3 | |
Water tank dimension (L×W×H) | mm | 1460×800×270 |
Volume of cooling wind | m3/h | 10320 |
External dimension (L×W×H) | mm | 5200×950×1740 |
Total power | KW | 1.8 |
Weight | T | 0.8 |
