rubber fender cold feed pin type extruder machine
Price:
$50,000.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Mixer
Product Description
Product Description
rubber sheet cutting Machine/silicone rubber extruder machine
Rubber Extruder
Rubber Extruders are usually designed to extruder rubber semi-finished articles for tire industry, such as sidewalls, treads or apex. They can also be equipped with different heads and become perfect for profile extrusion. Different sizes and configurations are possible: type of head, die size, clamp type
The Rubber Extruder machine is widely used in rubber hose ,inner tube, rubber sheets,rubber seals,
tread rubber, and other rubber products' extrusion and formation.It also can be used to supply rubber
for calender.
We produce 2 types: hot feed rubber extruder and cold feed rubber extruder.
Specification
| Model/Diameter (mm) | L/D | Power (KW) | Screw Speed (RPM) | Output (Kg/h) |
| XJD-60 | (6-16):1 | 11-37 | 80 | 120 |
| XJD-90 | (10-20):1 | 30-75 | 60 | 350 |
| XJD-120 | (10-18):1 | 45-110 | 50 | 650 |
| XJD-150 | (10-18):1 | 75-255 | 45 | 1200 |
| XJD-200 | (10-18):1 | 185-355 | 28 | 2200 |
| XJD-250 | (4-12):1 | 185-500 | 26 | 3000 |

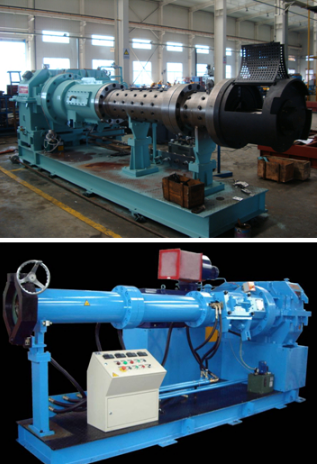

Detailed Images
