Rubber Extruder TPU Tire Patch Making Machine with 1200 Kg/h Output
Price:
$10,000.00 - $100,000.00/sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Mixer
Product Description
Product Description
Rubber Extruder
laboratory extruder/rubber cold extruder/hdpe pipe extruder
Rubber Extruders are usually designed to extruder rubber semi-finished articles for tire industry, such as sidewalls, treads or apex. They can also be equipped with different heads and become perfect for profile extrusion. Different sizes and configurations are possible: type of head, die size, clamp type
Specification
| Model/Diameter (mm) | L/D | Power (KW) | Screw Speed (RPM) | Output (Kg/h) |
| XJD-60 | (6-16):1 | 11-37 | 80 | 120 |
| XJD-90 | (10-20):1 | 30-75 | 60 | 350 |
| XJD-120 | (10-18):1 | 45-110 | 50 | 650 |
| XJD-150 | (10-18):1 | 75-255 | 45 | 1200 |
| XJD-200 | (10-18):1 | 185-355 | 28 | 2200 |
| XJD-250 | (4-12):1 | 185-500 | 26 | 3000 |

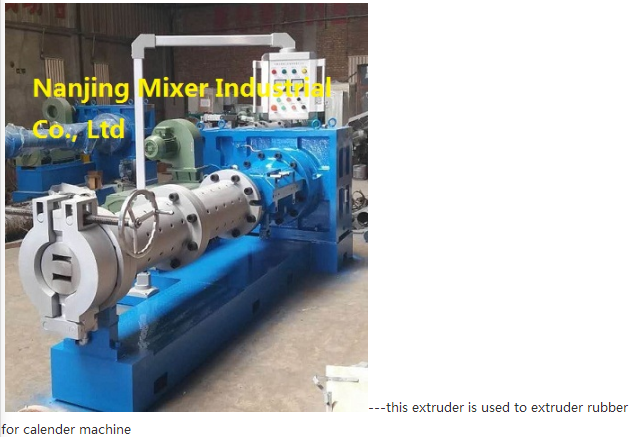

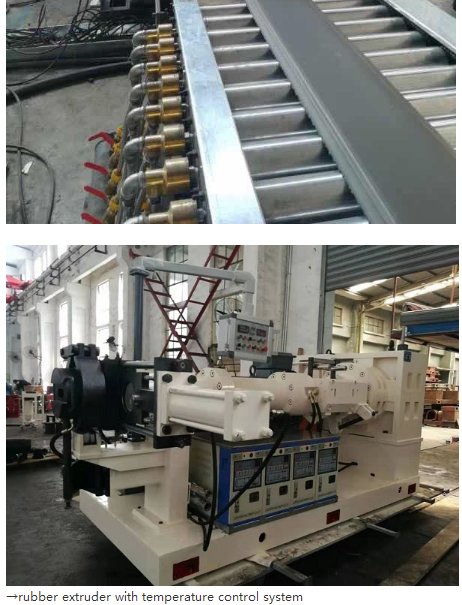

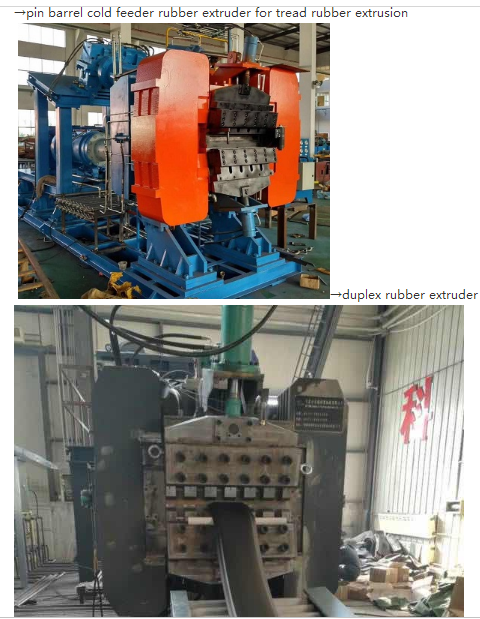

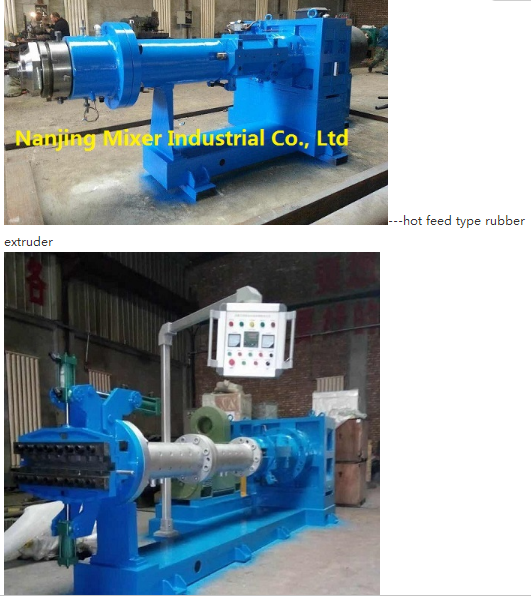

Detailed Images
