China Affordable Solid Tyre Vulcanizing Press Moulding Machine with Voltage 220V/380V/415V/440V for sale

Affordable Solid Tyre Vulcanizing Press Moulding Machine with Voltage 220V/380V/415V/440V

Name: Affordable Solid Tyre Vulcanizing Press Moulding Machine with Voltage 220V/380V/415V/440V
Brand: Nanjing Geekung Hydraulic Machinery Co., Ltd

Price Negotiable

Price: $10,000.00/sets >=1 sets

MOQ: Negotiable

Delivery Time: Negotiable

Brand: Geekung

Product Description

Tire Vulcanizing pess:

Application: for various kinds of soild rubber tires.

Specification

Technical parameter

Model	Q812x812x2	Q900x900x1	Q1066x1066x1	Q1200x1200x1	Q1500x1500x1
Name	Solid tire press	Solid tire press	Solid tire press	Solid tire press	Solid tire press
Nominal clamping force (MN)	2.5	5.0	7.5	6.0	12.0
Plate size(MM)	812x812	900x900	1066x1066	1200x1200	1500x1500
Unit pressure of the plate(Mpa)	3.8	6.2	6.6	4.2	5.3
Dayligh opening(MM)	775	736	832	520	520
Layers	2	1	1	2	2
Max.piston stroke(MM)	965	736	863	600	600
Plunger diameter(MM)	500	650	600	650	900
Work hydraulic pressure(Mpa)	13	15	15	18	19
Max.steam pressure(Mpa)	0.8	0.8	0.8	0.8	0.8
Motor power(KW)	7.5	13	22.5	13	26
Dimension(MM)	1340x812x4110	1500x900x3310	1820x1066x3760	2200x1400x44000	2520x1500x51100
Weight(T)	12	19	30	20	44

Adventage:

1.This series of products have high press in unit area , so that we can ensure the quality .

2.Machine can be equipped with model pulling and pushing device to reduce work strength based on product requirements .Hand control ,electrical control and PLC control is optional.

3.The working layer number can be designed as the request.

4. valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate rubber machine .

5.This type of machine is control by PLC , valcanization process can achieve many procedures for automatic control ,can automatically detect and adjust hot plate rubber machine

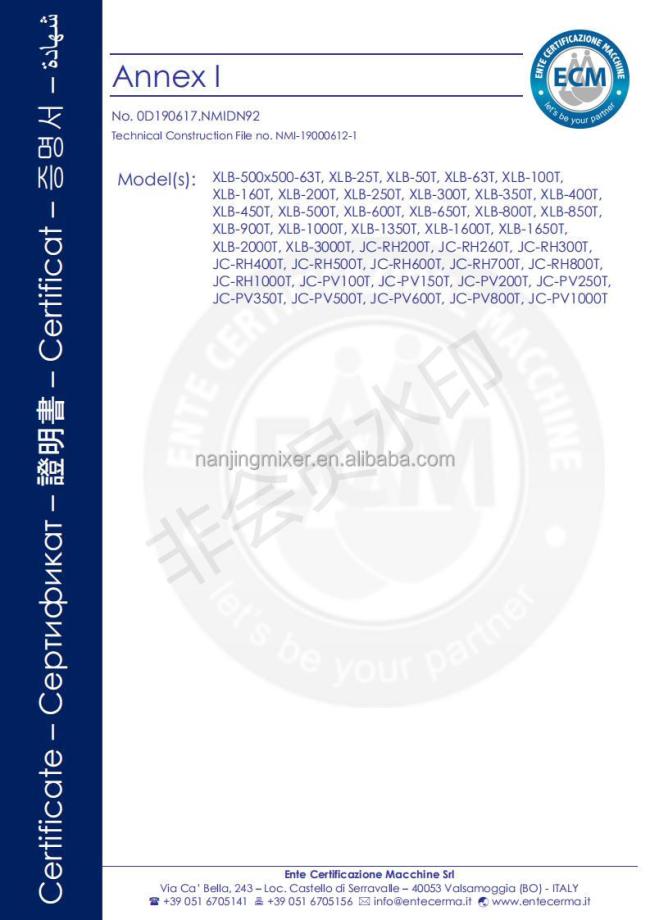

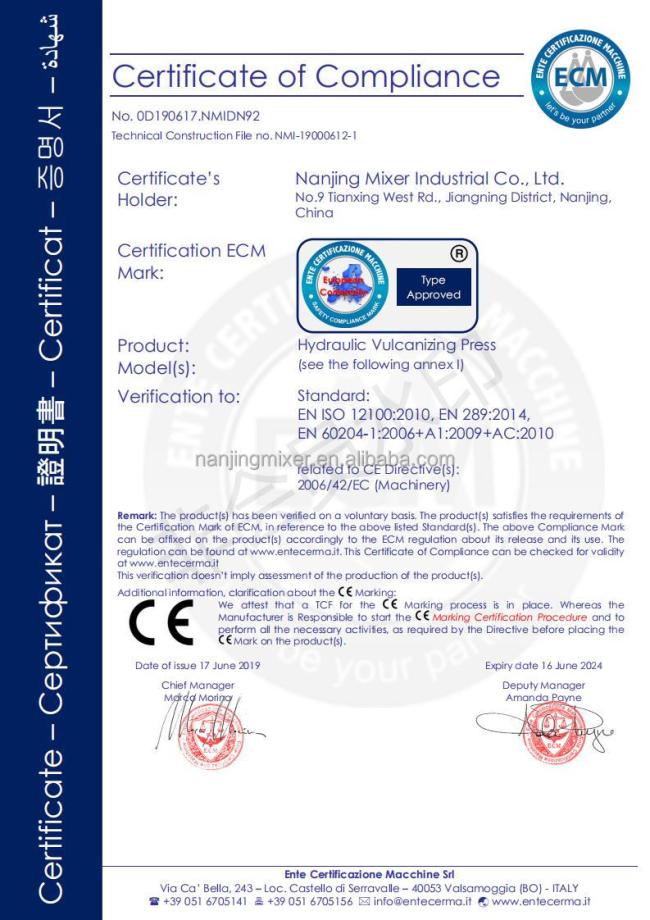

CE certificate:

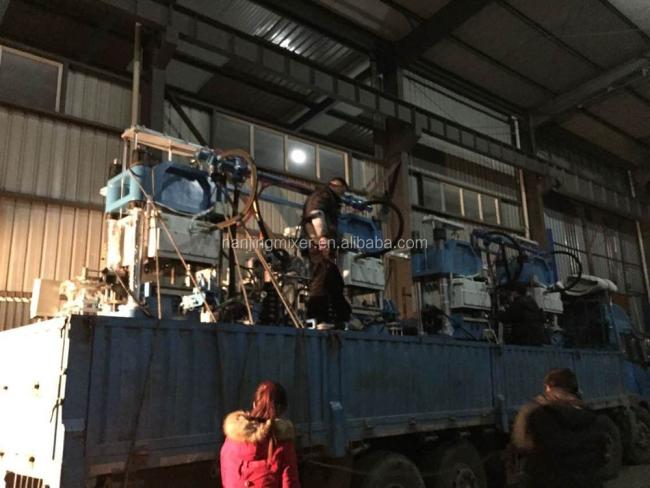

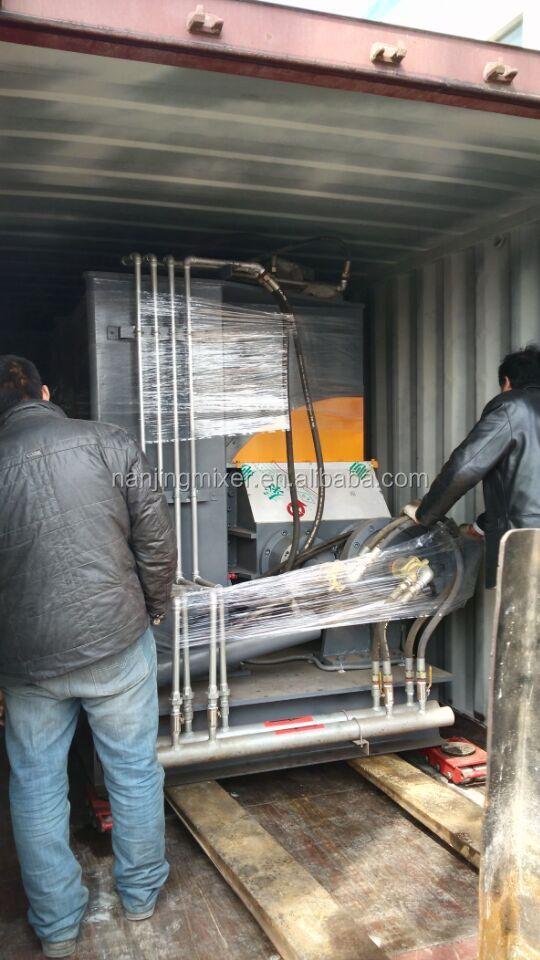

Shipment:
