Rubber Injection Molding Press/Vulcanizing Machine Competitive price

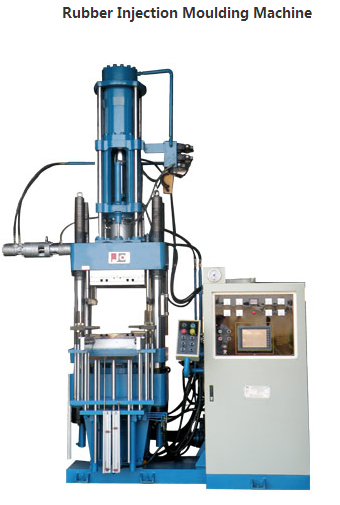

Rubber Injection Molding Machine is ideal equipment for the production of natural &synthetic rubber,oil & heat resistant rubber, and reclaimed rubber.

Highlights of our rubber injection molding machine:

1.Mold handling (ejectors) system: 2RT/3RT/4RT;

2.Pressure & Speed control: proportional pressure and proportional flow control from PLC ensure the operation more stable, can control each movement reliably without causing shock.

3.Safety :all machine movements must immedatiatey stop if operator hand blocks the light curtain. Safety interlock for movements,fool-proof design.Replacement time of lubrication oil can be set up from touch screen and auto alarm.Two button simultaneous pressing must be required to start the operation (Optional).

4. Parallelism of heating platens:0.05mm PER 300mm,precision curing&moulding finishing.

5.PLC programmable controller + touch screen HMI, technical parameters setting is convenient and easy,recipes are storable.The whole process is monitored;internal fault is diagnosed and alarmed automatically.

6.Precise positioning when moving in or out the mold.

7.Mold temperature control accuracy is ±1℃.
