15KW Rubber Vacuum Compression Molding Press for 13000 KG Large Scale Production
Price:
$30,000.00 - $99,999.00/sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Geekung
Product Description
Product Description

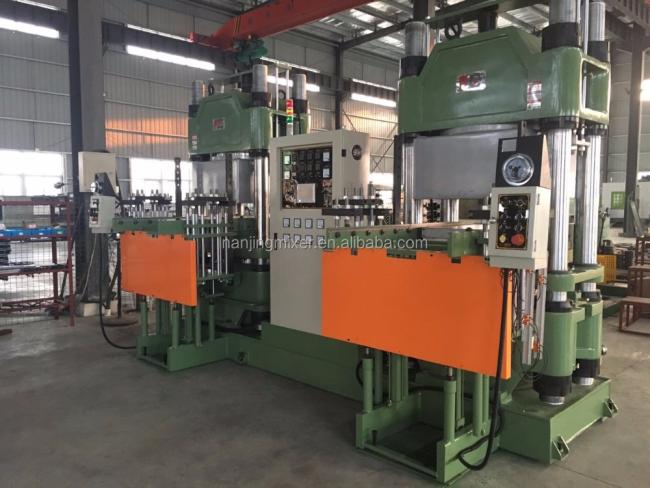

Hydraulic Compression Molding Press/Rubber Hydraulic Vulcanizing Machine/Rubber Vacuum Compression Molding Press/Compression Moulding Machine:
APPLICATIONS:
Ideal for the production of making rubber gaskets, O-rings, keyboards, medical stoppers, medical rubber products, seal, wipers scraping head, sports ,rubbe seals,etc.
REMARKABLE FEATURES:
· The vacuum suction hood provides highly efficient vacuum suction effect for the entire mold inside the working platen, suction speed of 700HG/2 sec. The unit offers simplified construction, easy to operate and maintain, with fast mold change.
· Integrated hydraulic circuit provide various pipe functions on the circuit boards, reducing piping to a minimum. The oil cooler ensures long service life of the circuit valve.
· The motion time, traverse and number of motions can be conveniently set on the control panel to meet product variations, ensuring production quality.
· Combines two molding units in one machine, which can be operated separately.
· While in vulcanization molding operations, the hydraulic pump motor can be set for running, or stopped for power saving.
· The electric system is controlled by the PLC controller, allowing for easy operation and accurate adjustment. An emergency switch provides added safety for the mold and the operator.
Specification
| Model | JC-PV80T-2 | JC-PV150T-2 | JC-PV200T-2 | JC-PV250T-2 | JC-PV300T-2 | |
| Clamping Force | TON | 80 | 150 | 200 | 250 | 300 |
| Plate Size | mm | 380×420 | 450×450 | 500×550 | 550×550 | 650×650 |
| Piston Stroke | mm | 380 | 345 | 380 | 380 | 380 |
| Heating Capacity | kw | 9 | 9 | 13.5 | 20.4 | 20.4 |
| Pump Motor | kw | 5.5 | 7.5 | 7.5 | 11 | 15 |
| Piston Diameter | mm | 230 | 356 | 495 | 406 | 430 |
| Max Mold Size L×W×H | mm | 340×380 ×180 | 410×410 ×120 | 510×510 ×200 | 510×510 ×200 | 610×610 ×175 |
| Machine Dimensions | mm | 2850×1625 ×2610 | 3150×1640×2550 | 3650×1800×3090 | 3650×1800×3090 | 3830×2450×2990 |
| Machine Weight | kg | 6500 | 7200 | 9300 | 11000 | 13000 |
Finished Products
