2P-24P Poles 300V 10A Phoenix Screw Terminal 5.0mm Pitch
2P-24P Poles 300V 10A Phoenix Screw Terminal 5.0mm Pitch
Product Specifications
| Pitch | 5.0mm |
| Poles | 2P-24P |
| Number of Contacts | 2-24 |
| Rated voltage | 300V |
| Reated current | 10A |
| Pin Dimensions) [mm | 3.7 |
| Temperature range | -40°C~+105°C |
| (Impulse wiithstand voltagea) [KV] |
2.5 |
| Supply Ability | 100000 Piece/ per Week |
| Stripping Length) [mm] | 15-16 |
| Contactive Coating | Tin Plated |
| Withstanding VoltagWithstanding Voltag | 2200V/1Min |
| PCB Hole Diameter) [mm] | 1.4 |
Product Application
-
industrial controls
-
lamp lighting
-
instrumentation
-
consumer electronics telecom equipment
-
transportation
Advantages
The 2P-24P Poles 300V 10A Phoenix Screw Terminal with a 5.0mm Pitch offers numerous advantages in terms of connectivity, versatility, and safety, making it a reliable choice for various electrical applications. Here is a detailed description of its key advantages and safety features:
Advantages:
-
High Versatility: The terminal block supports a wide range of contact poles from 2P to 24P, allowing it to be used in a variety of circuits and configurations. This versatility makes it suitable for both simple and complex electrical systems.
-
Strong Current Handling Capacity: With a current rating of 10A, the terminal block can safely handle moderate to high current loads, ensuring reliable power transmission.
-
High Voltage Compatibility: Rated for 300V, it ensures safe operation in a wide range of voltage environments, making it suitable for use in both low and medium voltage applications.
-
Secure Connections: The screw-type terminal design provides a secure and stable connection for wires, reducing the risk of loose connections or accidental disconnections. The 5.0mm pitch ensures that wires are spaced appropriately for optimal current flow and heat dissipation.
-
Easy Installation and Maintenance: The screw terminals are easy to access and tighten, facilitating quick and hassle-free installation. Maintenance is also simplified as wires can be easily replaced or repaired without the need for specialized tools.
-
Durability: Made from high-quality materials, the terminal block is designed for long-term use and can withstand harsh environments, ensuring reliable performance over time.
Safety Features:
-
UL and IEC Compliance: Compliance with UL and IEC standards ensures that the terminal block meets strict safety requirements, reducing the risk of electrical hazards.
-
Insulation and Flame Resistance: The housing material, often PA66 with UL94V-0 rating, provides excellent insulation and flame resistance, protecting against electrical shorts and potential fires.
-
Wide Operating Temperature Range: With an ambient temperature range of -40°C to +105°C, the terminal block can be used in a variety of temperature conditions without compromising performance or safety.
-
Secure Wire Retention: The screw terminals securely hold wires in place, preventing accidental disconnection or wire pull-out, which can lead to electrical shorts or fires.
-
Clear Markings and Identifications: Proper labeling and markings on the terminal block facilitate easy identification of connections, reducing the risk of miswiring or incorrect connections.
In summary, the 2P-24P Poles 300V 10A Phoenix Screw Terminal with a 5.0mm Pitch offers a combination of versatility, reliability, and safety features that make it an ideal choice for a wide range of electrical applications. Its high current and voltage handling capabilities, secure connections, and compliance with safety standards ensure reliable and safe operation in various environments.

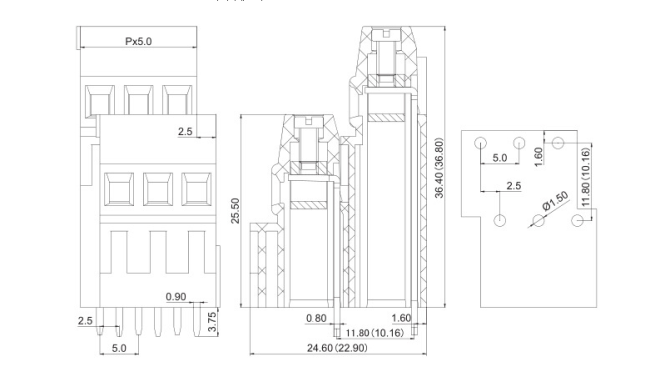

Drawing
Package Details
-
Pluggable Terminal Blocks: Inner Box first , then Inner Carton, The last, Export Carton.
Take strong bags/boxes/cartons for the package, in order to reduce the damage during the shipments. Tape and reel packing, Clamshell packing, Pallet packing, etc are available.
-
Export Carton size:43*27*27/36CM
-
Port: NINGBO/SHANGHAI
FAQ
Q: The nature of the company (factory/trading)?
A: Integrated industry and trade.
Q: Packing details of the product?
A: Use a special export carton, which is stronger, and the weight of a single piece does not exceed 25KG (by air).
Q: The customs code of the product?
A: 8536901900.
Q: The mass production time of the product?
A: Usually 2 weeks - 4 weeks.
Q: Is the sample provided for free, and the sample delivery date?
A: Small amount samples can be given away for free, and samples can be delivered within 3-5 days.
Q: Does the product support OEM customization?
A: YES.
Q: Do you support MOQ?
A: YES.
Q: Is there a product quotation or electronic sample catalog?
A: Customers need it at any time and can provide it at any time.
Q: Does the company have quality control standards and corresponding management systems?
A: Of course.
