SY2EDGLC-3.5 300V Pcb Board Screw Terminals Male Female Wire Terminal Block

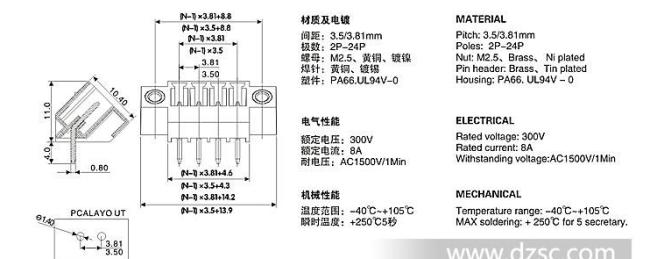

Product Specifications

Product Application

• industrial controls

• lamp lighting

• instrumentation

• consumer electronics telecom equipment

• transportation

How to work for PCB ?

When integrating the 2EDGLC-3.5 300V PCB Board Screw Terminals (Male and Female) Wire Terminal Block into your PCB (Printed Circuit Board) design, the process is straightforward yet requires attention to detail to ensure proper functionality and reliability. Here's a comprehensive guide on how to insert these terminal blocks onto your PCB:

Preparation Steps:

1. Review the Specifications: Ensure that the 2EDGLC-3.5 300V terminal blocks are compatible with your PCB's voltage and current ratings, as well as the required pitch and pin configuration.

2. PCB Design: Verify that your PCB layout has been designed with the appropriate footprints for the male and female terminal blocks. This includes the mounting holes, trace routing, and spacing to accommodate the terminals without causing any shorts or interference.

3. Assembly Tools: Gather the necessary tools for assembly, such as screwdrivers, wire strippers, and possibly a soldering iron (if soldering is required for auxiliary connections).

Insertion Procedure:

1. Positioning the Terminal Blocks: Carefully align the male and female terminal blocks with their respective footprints on the PCB. Ensure that the terminals' mounting holes line up perfectly with the PCB's mounting pads.

2. Mounting the Terminal Blocks: Using the appropriate screws, secure the terminal blocks to the PCB. Tighten the screws gradually and evenly to avoid overstressing the PCB or damaging the terminals.

3. Wire Connection:

   • For Screw Terminals: Strip the insulation from the ends of the wires to expose the bare conductors. Insert the stripped wire ends into the appropriate screw terminals, ensuring they are fully seated. Tighten the screws over the wire ends to establish a secure and reliable connection.
   • Note: If the PCB design calls for soldering in addition to screw terminals, ensure to follow the soldering procedure recommended by your PCB manufacturer or supplier.

4. Verification & Testing:

   • Once all connections are made, visually inspect the terminal blocks and wire connections for any signs of damage, misalignment, or loose connections.
   • Perform functional testing of the PCB to verify that the terminal blocks are functioning as intended and that there are no electrical issues or shorts.

Post-Insertion Considerations:

• Safety: Always ensure that the PCB is disconnected from any power source during the insertion and testing process to prevent electric shock or damage to the components.
• Documentation: Keep detailed records of the insertion process, including any modifications made to the PCB layout or terminal block configurations. This will be useful for future maintenance and troubleshooting.
• Environmental Considerations: If the PCB will be exposed to harsh environments, ensure that the terminal blocks and their connections are adequately protected against moisture, dust, and other contaminants.

By following these steps, you can efficiently and reliably integrate the 2EDGLC-3.5 300V PCB Board Screw Terminals Male Female Wire Terminal Block into your PCB design, ensuring a secure and long-lasting connection for your electronic system.

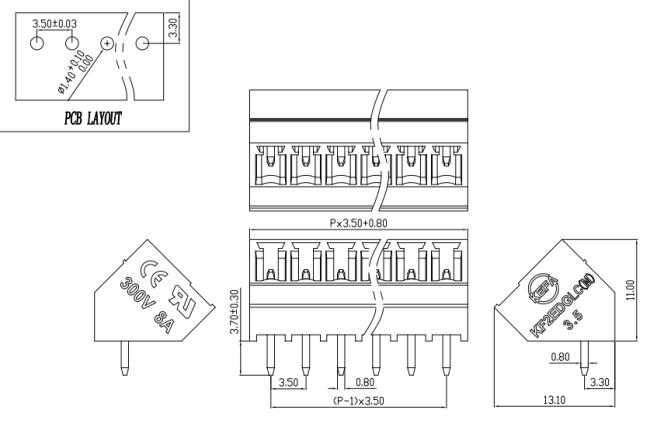

Drawing

Package Details

• Pluggable Terminal Blocks: Inner Box first , then  Inner Carton, The last, Export Carton.

Take strong bags/boxes/cartons for the package, in order to reduce the damage during the shipments. Tape and reel packing, Clamshell packing, Pallet packing, etc are available.

• Export Carton size:43*27*27/36CM

• Port: NINGBO/SHANGHAI

FAQ

Q: The nature of the company (factory/trading)?

A: Integrated industry and trade.

Q: Packing details of the product?

A: Use a special export carton, which is stronger, and the weight of a single piece does not exceed 25KG (by air).

Q: The customs code of the product?

A: 8536901900.

Q: The mass production time of the product?

A: Usually 2 weeks - 4 weeks.

Q: Is the sample provided for free, and the sample delivery date?

A: Small amount samples can be given away for free, and samples can be delivered within 3-5 days.

Q: Does the product support OEM customization?

A: YES.

Q: Do you support MOQ?

A: YES.

Q: Is there a product quotation or electronic sample catalog?

A: Customers need it at any time and can provide it at any time.

Q: Does the company have quality control standards and corresponding management systems?

A: Of course.

SHIPMENTS
