High Performance SS316 Flanged Ball Valve with Electric Actuator
Price:
USD $100.00/ Piece
MOQ:
1 pc
Delivery Time:
3 working days
Brand:
GRAT
Product Description
High Performance SS316 Flanged Ball Valve with Electric Actuator
Product Description:
High Performance SS316 Flanged Ball Valve with Electric Actuator/Flange/Ball Valve
Description:
Flanged electric ball valve is a rotary ball valve with a rotation angle of 0-90°. It has excellent
sealing performance, large flow capacity, small flow resistance coefficient, simple structure,
convenient maintenance, and long service life. The valve body passage and the connecting
pipe diameter are equal and form a straight diameter, and the medium can flow through
almost without loss.
Electric ball valves are divided into two types: switch type and regulating type. It is usually
used in occasions with strict sealing requirements. In addition to controlling gas, liquid, and
steam media, it is also suitable for controlling media such as sewage and media with fibrous
impurities. It is widely used in the fields of petroleum, chemical industry, metallurgy, light
industry, papermaking, power stations, refrigeration, and other working fields.
Specification:
| Power supply | AC220V |
| Body size | DN15-250 |
| Medium Temp | -80°C~160°C(no congelation.) |
| Operating pressure | PN1.0~2.5(MPa) |
| Action mode | 4-20mA Signal input feedback, 0-90° gyration |
| Action time | 4~30S |
| Body connections | Flange |
| Body material | WCB, ZG1CrM0, ZG1Cr18Ni9Ti |
| Sealed material | PTFE |
| Actuator material | Casting aluminum alloy |
| Applicable medium | Acid, alkali, salt, chlorine gas, steam, source water, mine pulp and paper pulp, aqua regia, oxidant, reducing agent, corrosive chemical liquid. |

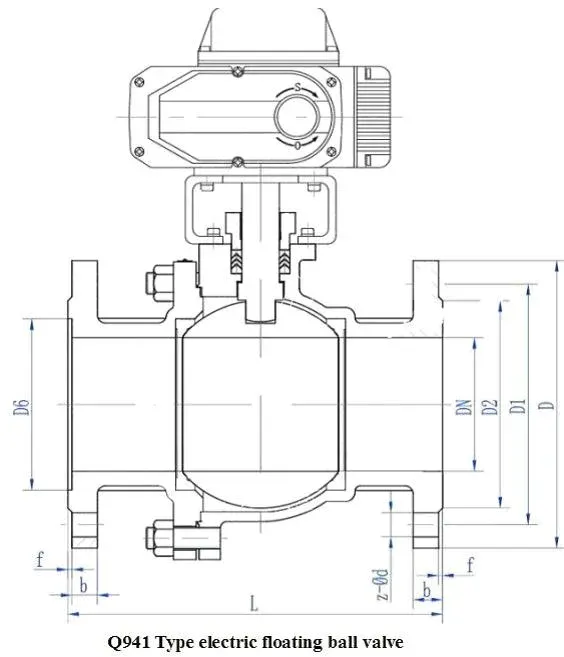

Installation size figure
|
Size MPa DN |
C | D | D1 | D2 | Z-d | f | b | |
| 15 | 1.0 | 132 | 95 | 65 | 45 | 4-14 | 2 | 14 |
| 1.6 | 132 | 95 | 65 | 45 | 4-14 | 2 | 15 | |
| 20 | 1.0 | 142 | 105 | 75 | 55 | 4-14 | 2 | 16 |
| 1.6 | 142 | 105 | 75 | 55 | 4-14 | 2 | 16 | |
| 25 | 1.0 | 150 | 115 | 85 | 65 | 4-14 | 2 | 16 |
| 1.6 | 150 | 115 | 85 | 65 | 4-18 | 3 | 16 | |
| 32 | 1.0 | 165 | 135 | 100 | 78 | 4-18 | 3 | 16 |
| 1.6 | 165 | 135 | 100 | 78 | 4-18 | 3 | 16 | |
| 40 | 1.0 | 180 | 145 | 110 | 85 | 4-18 | 3 | 17 |
| 1.6 | 180 | 145 | 110 | 85 | 4-18 | 3 | 17 | |
| 50 | 1.0 | 200 | 160 | 125 | 100 | 4-18 | 3 | 18 |
| 1.6 | 200 | 160 | 125 | 100 | 4-18 | 3 | 18 | |
| 65 | 1.0 | 220 | 180 | 145 | 120 | 4-18 | 3 | 20 |
| 1.6 | 220 | 180 | 145 | 120 | 4-18 | 3 | 20 | |
| 80 | 1.0 | 250 | 195 | 160 | 135 | 4-18 | 3 | 22 |
| 1.6 | 250 | 195 | 160 | 135 | 4-18 | 3 | 22 | |
| 100 | 1.0 | 280 | 215 | 180 | 155 | 4-18 | 3 | 22 |
| 1.6 | 280 | 215 | 180 | 155 | 4-18 | 3 | 24 | |
| 125 | 1.0 | 320 | 245 | 210 | 185 | 4-18 | 3 | 24 |
| 1.6 | 320 | 245 | 210 | 185 | 4-18 | 3 | 26 | |
| 150 | 1.0 | 360 | 280 | 240 | 210 | 8-23 | 3 | 24 |
| 1.6 | 360 | 280 | 240 | 210 | 8-23 | 3 | 28 | |
| 200 | 1.0 | 400 | 335 | 295 | 265 | 8-23 | 3 | 26 |
| 1.6 | 400 | 335 | 295 | 265 | 8-23 | 3 | 30 | |
| 250 | 1.0 | 450 | 405 | 350 | 320 | 12-23 | 4 | 28 |
| 1.6 | 450 | 405 | 355 | 320 | 12-23 | 4 | 30 | |
The material of the main parts
| Part name | Body | Bonnet | Stuffing box | Gland ring | Seat | Packing | Spanner |
|
Material trademark |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB 40Cr ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
FEP | FEP | WCB |
Applicable leading medium
| Medium state | Medium Temp. | Medium pressure | Medium characteristics | Medium concentration | Medium name |
| Liquid | -80ºC~+160ºC | 0~20kg/cm2 | Strong corrosion, high scour sharpen | unlimited | Acid, alkali, salt, chlorine, steam, source water, mine pulp, paper pulp, aqua regia, oxidant, reducing agent. |
| Gas | -80ºC~+160ºC | 0~20kg/cm2 | Strong corrosion, high scour sharpen | unlimited | |
| Mixture of liquid and solid | -80ºC~+160ºC | 0~20kg/cm2 | Strong corrosion, high scour sharpen | <60% |

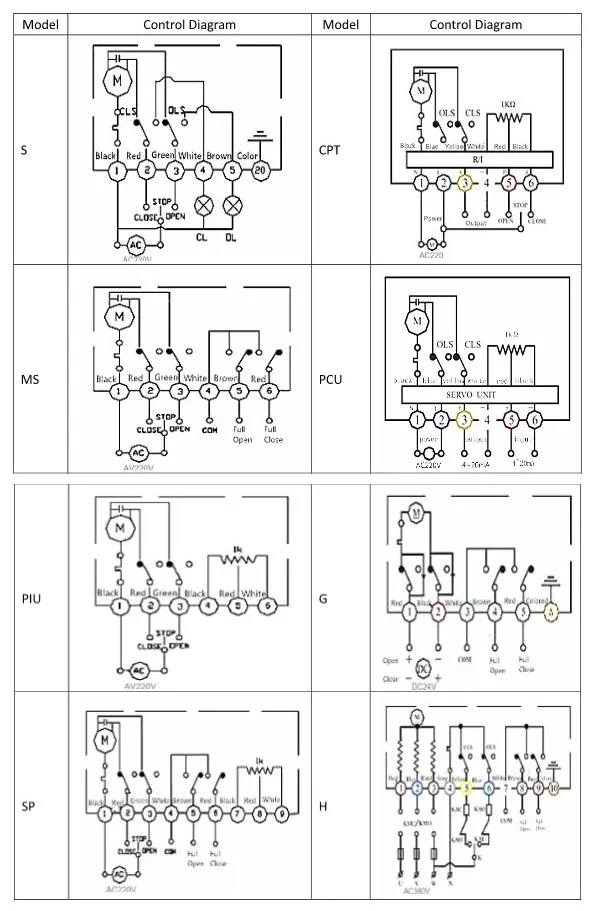

Control Diagram
| Model | Circuit | Model | Circuit |
| S | ON/OFF,no output signal | CPT | ON/OFF,output 4~20mA signal |
| MS | ON/OFF,output passive contact signal | PCU | Regulation,output 4~20mA signal |
| PIU | ON/OFF,output 0~1000Ω signal | G | ON/OFF,output passive contact signal |
| SP | ON/OFF,middle position control | H | ON/OFF,output passive contact signa |
Packing & Shipping:
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea, by air,by train.
If you have other requirements, please feel free to tell us.
