ANSI 150LB DIN PN16 Carbon Steel Galvanized Flange EPDM Rubber Flexible Rubber Expansion Joint

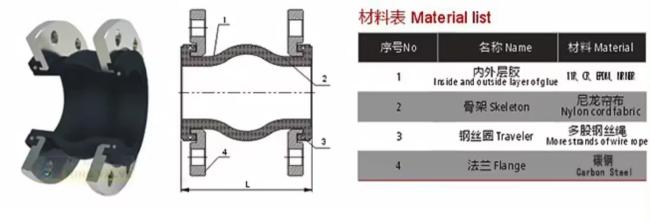

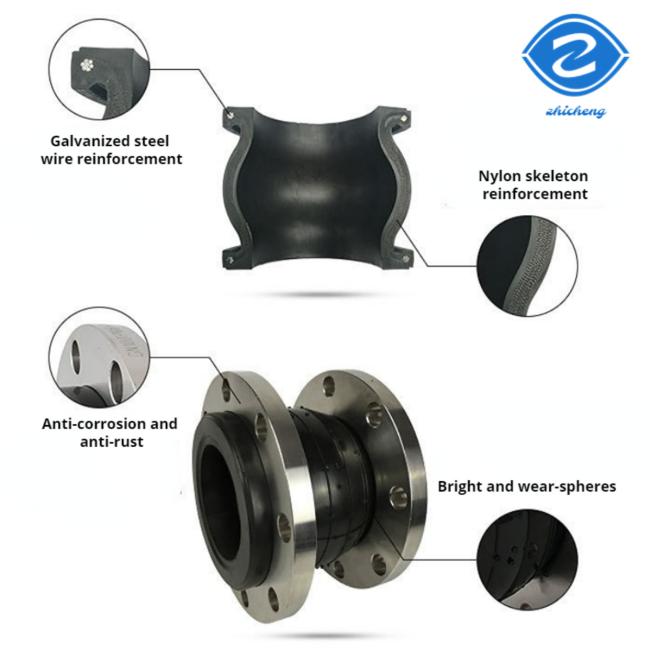

Rubber expansion joint is made of inner and outer rubber, cord layer, steel wire rope after vulcanization and metal flange of parallel joint or loose sleeve combination, widely used in all kinds of piping systems.

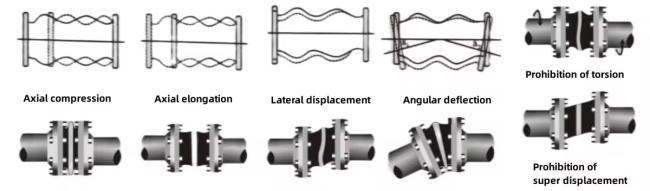

The rubber expansion joints allow for four way movements, and they are molded from synthetic rubber and nylon cord, and this can reduce vibration and noise, and compensate thermal expansion and contraction caused by temperature change.
| Working temperature | -15℃~80℃(-30℃~150℃) |
| Working pressure | 6-40bars(PN6-PN40) |
| Test pressure | 1.5 times of working pressure |
| Explosion pressure | 2 times of working pressure |
| Applicable media | Air, water, sewage, sea water, acid, alkali, oil etc. |

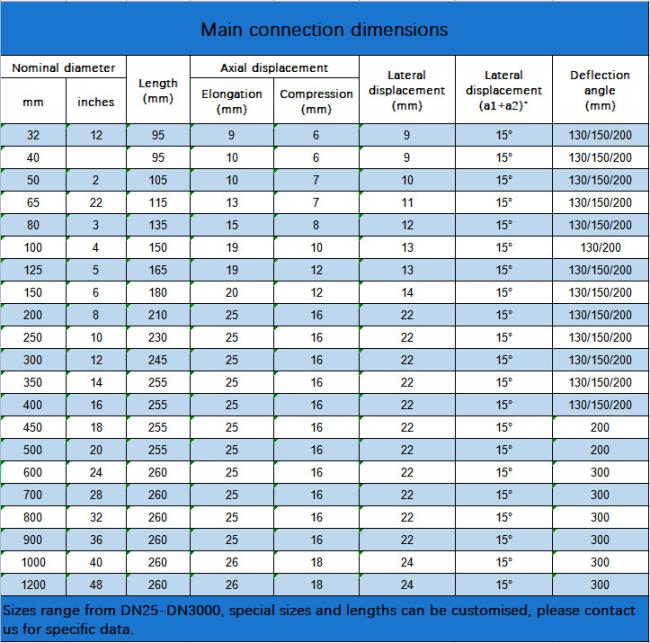

( Note: Size range from DN25-3000 are all available, special size and length can also be customized
please contact us for exact data.
Production
every product to meet the customer requirements, and provide customers with high-quality products.
Packing & Delivery
1.Inner package: plastic film with carton cases.
2.Outer package: wooden cases(usually the size of 1100mm*1100mm*1100mm).
Product installation
When the customer installs, we will provide installation instructions, installation notes and maintenance instructions.
Q: Are you a trading company or a manufacturer?
A: We are manufacturers of rubber expansion joints, metal expansion joints, flexible hoses, dismantling joints, trimmer joints,flange adapters and flanges with over 30 years experience.
Q: Do you have a catalogue?
A: Yes, we do. Please let me know your email or instant messenger and we will send you our catalogue.
Q: Can you provide drawings and technical information?
A: Yes, our specialist technical department will design and supply drawings and technical data.
Q: Do you provide samples? Are they free of charge or do you charge for them?
A: Yes, we can provide samples free of charge, but transport costs are borne by the customer.
Q: Can the products be manufactured to the customer's requirements?
A: Yes, the above specifications are standard specifications and we can design and manufacture as required.
