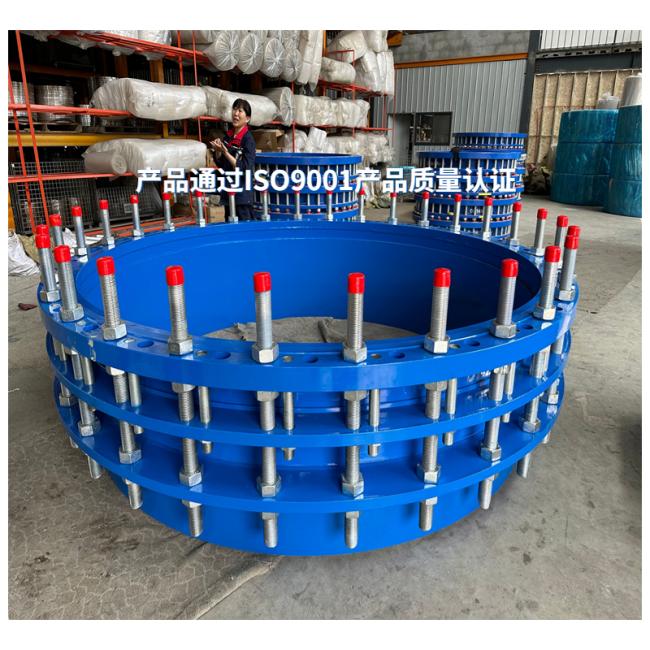

36 12 24 Dismantling Expansion Joint Water Drive Coupling Trimmer Carbon Steel Double Flange
Price:
$35.60/sets 1-99 sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
ZHICHENG
Product Description
Water Applicable Drive Coupling Trimmer Carbon
Steel Double Flange Disassembly Joint
Video description
Product Description
The force transmission joint, also known as an expansion joint, compensator, expander, and
telescopic joint, can be divided into2F type double flange force transmission joint, CF type
single flange force transmission joint, and CC2F type detachable force transmission joint.
It is of a main body, sealing ring, pressure cover, telescopic short pipe, and other main parts.
It is a new product for connecting pumps, valves, and equipment to pipelines. By connecting
them with all bolts, it becomes a whole and has a certain displacement, which allows for
adjustment according to the installation size on during installation and maintenance. In operation,
it can transmit axial thrust to the entire pipeline. This not only improves work efficiency but also
provides some protection for pumps,, and other equipment.
Specification
|
No.
|
Name
|
Quantity
|
Material
|
| 1 | Valve | 1 | QT450-10,Q235A,304,316etc. |
| 2 | Gasket | 1 | NBR |
| 3 | Follower | 1 | QT450-10,Q235A,304,316etc. |
| 4 | limited short pipe | 1 | Q235A,304,316etc. |
| 5 | stud | n | Q235A,35#,304,316etc. |
| 6 | nut | Tn | Q235A,20#,304,316etc. |
Product display
Installation Instructions
Advantages
1. Easy and convenient installation, facilitates valve installation, and can withstand the axial tension of the pipeline.
2. This is made of metal casting or welding, with the loose part made of trapezoidal rubber sealing ring, under the
action of the gland and bolts.
3 Utilizing the principle of rubber compression elastic deformation, it forces the sealing ring to deform between the
outer wall of the joint body and the extension tube to achieve static.
4. Metals and sealing rings are strictly selected according to usage performance and user requirements. The
exterior is coated with high-strength anti-corrosion paint, all connection bolts are made of high-strength carbon steel
or stainless steel. Because there is a certain gap between the body and the extension tube, it has a axial and radial displacement.
5. It can effectively compensate and alleviate the pipeline and blind plate thrust in the pipeline,
and also facilitate the installation, maintenance, and of pumps and valves, making it the most ideal supporting
product in the pipeline installation and operation industry.
Company Profile
Company :Henan Province Zhicheng Valve & Fittings Manufacturing Co.
Address:Xicun Pipeline Industrial Park,Xicun Town,Gongyi City,Henan Province,China
The factory covers an area of 40,000 square meters. The production equipment is complete, with a monthly
Address:Xicun Pipeline Industrial Park,Xicun Town,Gongyi City,Henan Province,China
The factory covers an area of 40,000 square meters. The production equipment is complete, with a monthly
output of 10,000 pieces.
The company has passed the ISO9001:2008 quality management system certification and has a strict quality
The company has passed the ISO9001:2008 quality management system certification and has a strict quality
control system, standard
production process and standardized delivery inspection program to ensure that the delivered products
production process and standardized delivery inspection program to ensure that the delivered products
meet the technical
requirements.
The main products are: rubber expansion joints, bellows expansion joints, metal hoses, double flange
requirements.
The main products are: rubber expansion joints, bellows expansion joints, metal hoses, double flange
disassembly joints, flange adapters
