Stainless Steel Plate Double Clip Pipe Repair Clamp Acid And Alkali Resistant Corrosion-proof Pipe Leak Sealing Device Emergency Repair Of Leaks At Cast Iron / PE Pipe Joints
Price:
$12.10/sets >=10 sets
MOQ:
1
Delivery Time:
Negotiable
Brand:
zhicheng
Product Description
Water Pipe Connector Plate Type Double Card Extension Pipe Repair Clamp
TUV Certified
Product Description

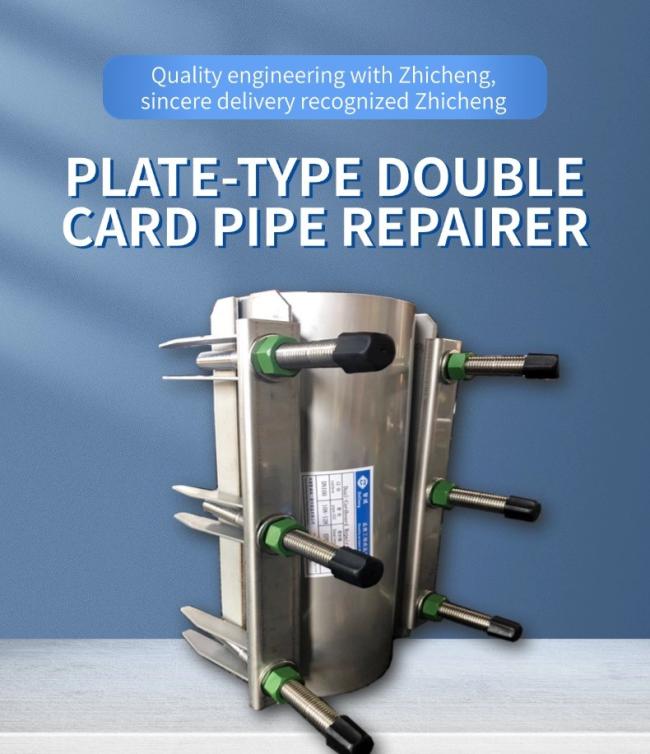

Double plate-type pipeline repair clamp
Leak Repair Clamp Pipe repair clamp is a kind of equipment for pipeline repair.
1.Strong corrosion resistance
2.No need for welding
3.No fire hazard
4.Space saving
5.Unlimited pipe material
6.Pressure sealing
7.Easy installation
Specification
Details show
| 产 品 规 格 Product Specification | ||||
| 适用管径 Applicable Pipes Diameter |
工业允用压力 Allowable Pressure of Industry |
长度范围 Length Range |
螺栓 Bolt |
扭矩 Torque |
| ODmin-ODmax(mm) | WP(bar) | S(MM) | M | NM |
| 88-108 | 16 | 150-600 | 14 | 80 |
| 108-128 | 16 | 150-600 | 14 | 80 |
| 113-133 | 16 | 150-600 | 14 | 80 |
| 120-141 | 16 | 150-600 | 14 | 80 |
| 168-188 | 16 | 150-600 | 14 | 80 |
| 174-194 | 16 | 150-1200 | 14 | 80 |
| 219-239 | 16 | 150-1200 | 16 | 100 |
| 228-249 | 16 | 150-1200 | 16 | 100 |
| 238-258 | 16 | 150-1200 | 16 | 100 |
| 258-278 | 16 | 150-1200 | 16 | 100 |
| 273-293 | 16 | 150-1200 | 16 | 100 |
| 282-302 | 10 | 150-1200 | 16 | 100 |
| 29-5315 | 10 | 150-1200 | 16 | 100 |
| 324-344 | 10 | 150-1200 | 16 | 120 |
| 335-356 | 10 | 150-1200 | 16 | 120 |
| 347-367 | 10 | 150-1200 | 16 | 120 |
| 357-376 | 10 | 150-1200 | 16 | 120 |
| 365-384 | 10 | 150-1200 | 16 | 120 |
| 383-402 | 10 | 150-1200 | 16 | 120 |
| 404-423 | 10 | 150-1200 | 16 | 120 |
| 421-440 | 10 | 150-1200 | 16 | 120 |
| 436-455 | 10 | 150-1200 | 16 | 120 |
| 453-472 | 10 | 150-1200 | 16 | 120 |
| 469-488 | 10 | 150-1200 | 16 | 120 |
| 488-507 | 10 | 150-1200 | 16 | 130 |
| 505-525 | 10 | 150-1200 | 16 | 130 |
| 526-545 | 8 | 150-1200 | 16 | 130 |
| 547-566 | 8 | 150-1200 | 16 | 130 |
| 582-581 | 8 | 150-1200 | 16 | 130 |
| 582-601 | 8 | 150-1200 | 16 | 130 |
| 630-650 | 8 | 150-1200 | 16 | 130 |
| 670-690 | 8 | 150-1200 | 16 | 130 |
| 720-740 | 8 | 150-1200 | 16 | 130 |
Note: 1: because of too many models, the layout is limited, larger calibre and special calibre, special materials, can be customized according to customer requirements. 2: Please contact the company's after-sales personnel in a timely manner for the installation of all products and installation and use of problems encountered in the process, we will be the first time to make answers.
If you want to know more details of our products,pls click here to contact us!
Product advantages
The advantages of the clamp:
1.Operation is simple.
2.Is beneficial to the safety of construction.
3.The stability of the system is good and the maintenance is convenient.
4.the price is cheaper
1.Operation is simple.
2.Is beneficial to the safety of construction.
3.The stability of the system is good and the maintenance is convenient.
4.the price is cheaper
Installation Instructions
Product application cases
Packing & Delivery
Plastic film wrapped and then packed into export wooden crates.
Why Choose Us
If you want to know more product details, please click here to contact us now.
FAQ
Q:Are you factory? We are a factory in manufacturing and exporting expansion joint.
Being in the lines for nearly 30 years, we can confirm that our products are of reasonable
price and good quality . Q:Why choose us? 1.Many years Industry and export experience
2.Extensive product range with good quality 3.Complete pre-sales ,after sales service team
to ensure customer's needs and preferences. Q:How about application field?
1.the surface and underground engineering,ship building/sea oil platform,water/gas supply,
power and industrial production.
2.sewage treatment and maintenance etc.Such as Crude oil line,natural gas pipelines,water
drainage pipelines, aviation/car special line,lubricating oil pipelines blunt water power line.
3.sea water/fresh water pipeline etc. Q:What's your difference from others?
1.Produce per customer requirement strictly, test and quality control.
2.Universality:Avaliable for many kinds of metal pipes, and for less misaligned and different
diameter-pipes coupling, especially for emergency quick repair.
3.Economy:Coupling despite of the pipe thickness and no need furbishing of the pipe ends,
simple handing and cost-saving. how to contact us?
Write your needs in below,click"send" to get reply now!
