1 Inch × 1 Inch Welded Steel Wire Mesh Metal 19 Gauge Construction Rolls
1 Inch × 1 inch Welded Metal Mesh 19Gauge Construction Wire Mesh Rolls

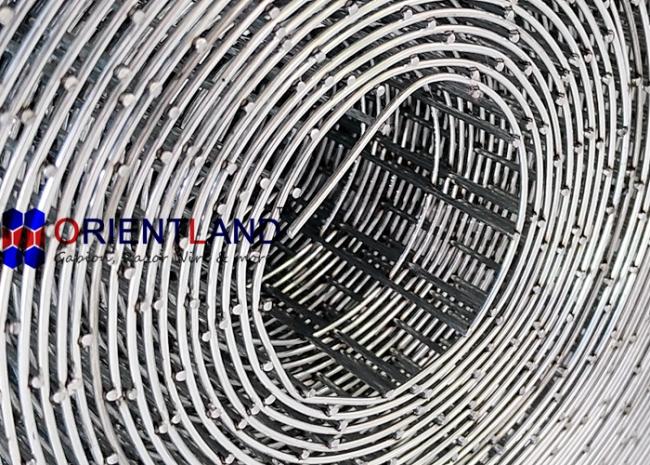

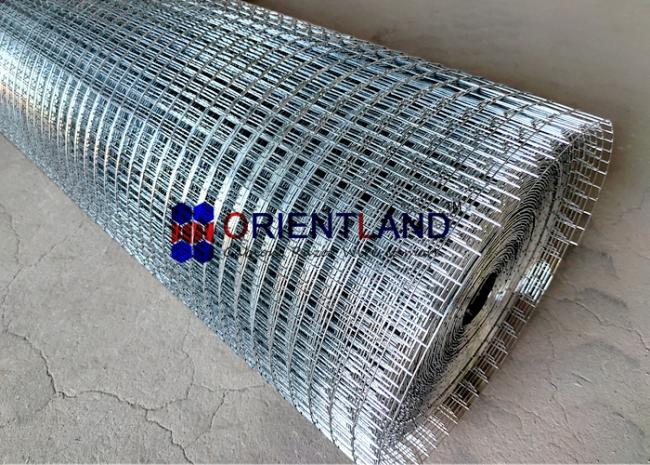

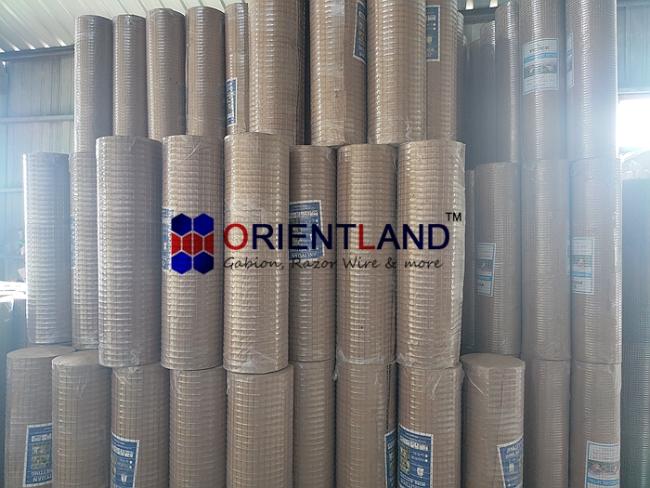

Galvanized Welded Wire Mesh
Material: Elec-galvanized steel wire, hot-dip galvanized steel wire,
Surface treatment: Elec-galvanized, hot-dip galvanized.
Technology: the Galvanized Welded Wire Mesh can divide into two kinds: galvanized after welding and welded after galvanizing.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant.
Specifications:
| Wire Diameter (BWG) | Mesh Opening | Width | |
| inch | mm | 0.5m-2.0m | |
| 22, 23, 24 | 1/4"×1/4" | 6.4×6.4mm | |
| 19, 20, 21, 22 | 3/8"×3/8" | 10.6×10.6mm | |
| 16, 17, 18, 19, 20, 21, 22, 23 | 1/2"×1/2" | 12.7×12.7mm | |
| 18, 19, 20, 21 | 5/8"×5/8" | 16×16mm | |
| 16, 17, 18, 19, 20, 21 | 3/4"×3/4" | 19×19mm | |
| 16, 17, 18, 19, 20, 21 | 1"×1/2" | 25.4×12.7mm | |
| 14, 15, 16, 17, 18, 19 | 1-1/2"×1-1/2" | 38×38mm | |
| 14, 15, 16 | 1"×2" | 25.4×50.8mm | |
| 12, 13, 14, 15, 16 | 2"×2" | 50.8×50.8mm | |
Processing of Welded Wire Mesh
- Welding with iron wire (without surface treatment)
- Hot dipped galvanizing before welding
- Hot dipped galvanizing after welding
- Electric galvanizing before welding
- Electric galvanizing after welding
- PVC powder coating after welding
Application: They are used in industry and agriculture building, transportation and mining for all such purposes as poultry houses, egg baskets, runway enclosures, draining rack, fruit drying screen, fence.
