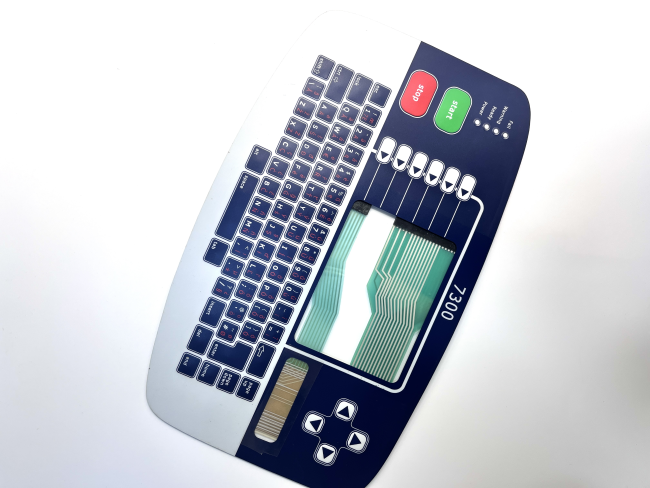

Silver Conductive Circuit Backlit Membrane Switch Panel For Ocean Monitor
Silver Conductive Circuit Backlit Membrane Switch Panel For Ocean Monitor
Components
-
Backlighting:
- Illuminates the graphics or buttons to enhance visibility in low-light conditions.
- Can use different lighting technologies, such as LEDs or electroluminescent (EL) panels.
-
Membrane Switch:
- Made of flexible materials, typically polymer, with printed graphics and an adhesive backing.
- Contains conductive traces that complete a circuit when pressed.
Features
- Custom Design: Panels can be customized in terms of size, shape, graphics, and colors to meet specific user needs.
- Durability: Resistant to dust, moisture, and abrasion, making them suitable for harsh environments.
- Thin Profile: Their slim design allows for integration into compact devices.
- Tactile Feedback: Some designs include features that provide tactile feedback when pressed.
Applications
- Consumer Electronics: Remote controls, kitchen appliances, and gaming devices.
- Medical Devices: Portable medical equipment where user interface clarity is vital.
- Automotive: Dashboard controls and infotainment systems.
- Industrial Controls: Machinery and equipment used in factories and workshops.
Advantages
- Enhanced Visibility: Backlighting improves usability in dimly lit areas.
- Aesthetic Appeal: Provides a modern look that can enhance product design.
- Easy Cleaning: Smooth surface makes it easier to maintain cleanliness and hygiene.
Considerations
- Power Consumption: Backlit designs may require careful consideration of power usage, especially in battery-operated devices.
- Color and Brightness Control: Selecting the right colors and brightness levels is crucial for usability and aesthetic purposes.
Specification:
| Overlay material ---For front or face overlay | ||||||||
| Polyester | Polycarbonate | |||||||
|
1 Highly versatile for embossing 2 Highly resistant for chemicals 3 Better durability 4 For internal and external use |
1 wide range of the surface finishes and thicknesses 2 More cost-effective 3 For internal and external use
|
|||||||
| Embossing --- Graphic overlay or up circuit can be embossed in order to insert metal stainless steel domes for good tactile when press .Leave space for mechanical keys and provide tactile indications | ||||||||
| Pedestal embossing | Rim embossing | Pillow embossing | Dim embossing | |||||
| Windows or LCD --- For display functions | ||||||||
| Printed colors windows such like red ,black and so on | Transparent finishes windows | |||||||
| Keys | ||||||||
| Tactile Keys :witch metal domes or Poly domes ,Metal dome with different diameter and pressure kinds | Non-tactile keys: printed silver spot on the circuit | |||||||
| LEDs ---Miniature LEDs ,LED colors :white ,Green ,Red ,Blue ,Yellow ,Orange and others | ||||||||
| EL and Sensors or inductors --- EL can be light any place where where you like ,and sensors can be used as LEDs | ||||||||
| Cables --- is extension of circuit and communication with your device | ||||||||
| Screen printing conductive silver cable | Copper plated cable /Polyimide or FPC | PCB cable | ||||||
| Types of connector --- 1 Zero insertion force(ZIF) with 0.5MM ,1.0MM,1.25MM pitch ;2 Female connector with 2.54MM pitch; 3 Male connector | ||||||||
| Shielding --- For protection function | ||||||||
| Gasket seal/Waterproof :protect the conductors against from the humidity and splashes | EMI/RFI/ESD Shielding: use an Aluminum foil shielding /clear ITO | |||||||
| Rear Adhesive --- Mostly use the 3M double-side mounting glue brand of USA. | ||||||||
| Back plate --- Use in Aluminum ,Polycarbonate ,Acrylic Or PMMA | ||||||||
| Matching color --- PMS or RAL Is best ,CMYK or RGB also can be ok if you can supply PMS Or RAL | ||||||||
| Standard Tolerances :+/-0.2MM | ||||||||
