Melamine Cover Acoustic Wood Slat Panels 2400mm , Slatted Acoustic Wall Panels OEM

Price Negotiable
Price: Negotiable
MOQ: 100 PCS
Delivery Time: 2 weeks
Brand: WINEGO
Product Description

 Aesthetics Melamine Cover Surface And Edge Wood Slat Acoustic Panels 2400mm





Description:


Sound travels in waves, and when these waves encounter a solid surface, they reflect back into the room, creating reverberation. Wood slat acoustic panels are made from vertical strips of medium-density fiberboard (MDF), each measuring 27 millimeters wide with a 13-millimeter gap between the strips. These panels are engineered to absorb and manage sound through a combination of felt backing and wooden slats, effectively reducing or eliminating reflections and reverberation.The panels can be customized in both size and slat spacing to suit specific design and acoustic requirements. Additionally, the use of black or gray behind the slats is crucial for achieving a modern, elegant appearance that enhances the overall look of the acoustic panels. This color choice not only aligns with contemporary design aesthetics but also improves the visual appeal, contributing to a cohesive and sophisticated interior.


Feature:

Enhanced Acoustic Performance (NRC: 0.85)
Constructed from E0 grade environmentally responsible materials
Elevates interior design with premium color options and top-quality finishes
Suitable for both residential and commercial spaces
Customizable dimensions available
Well-suited for various indoor applications
Easy installation on walls and ceilings

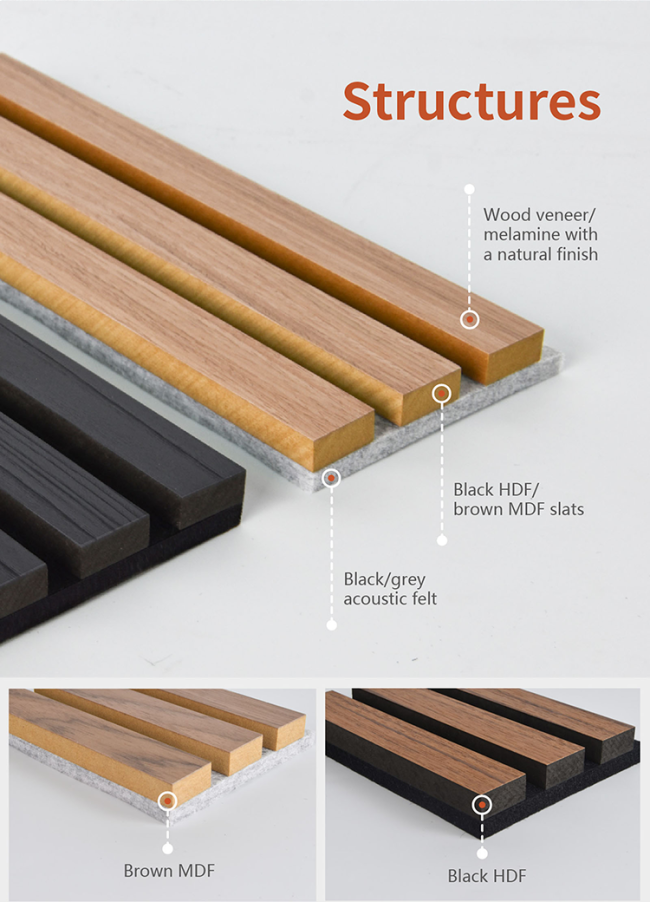

Slat choices: Brown MDF / Black HDF

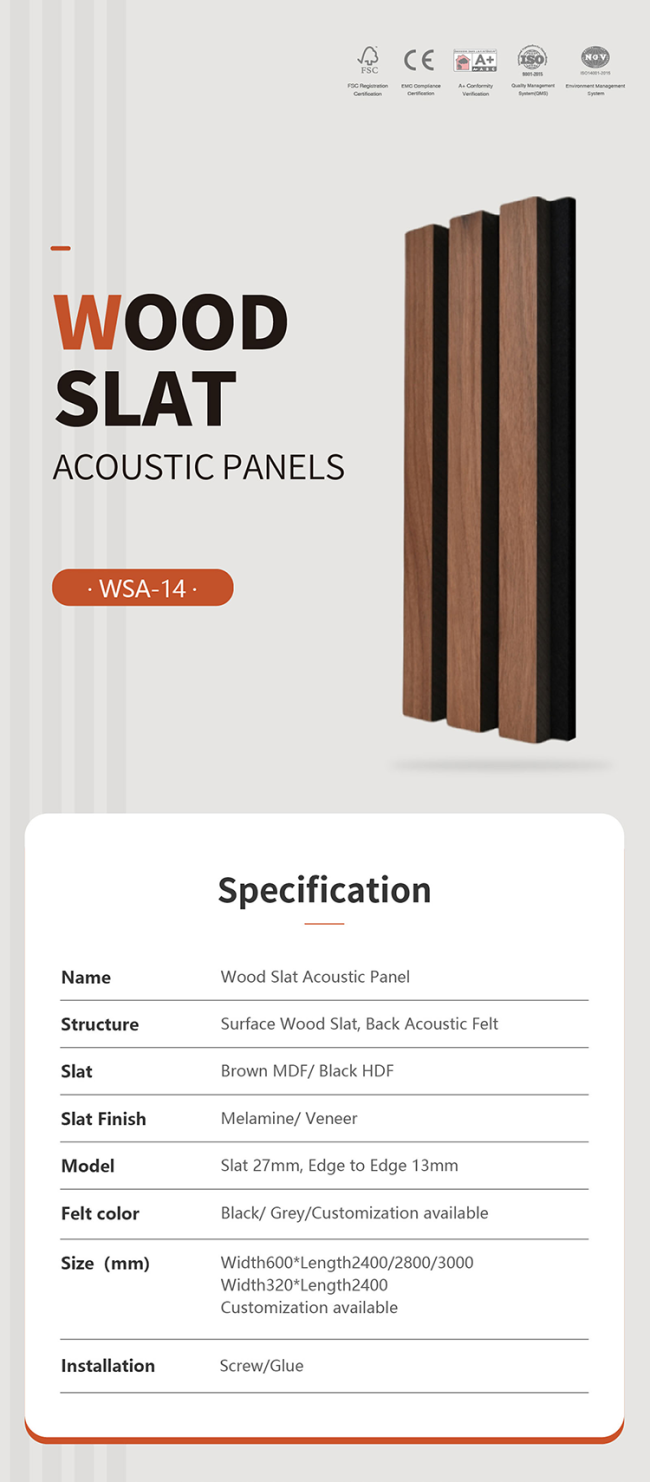

Specifications:

NAMEWOODEN SLAT ACOUSTIC PANEL
SLAT FINISHMelamine cover surface and edge
SLAT MATERIALSBrown MDF/Black HDF
Felt ColorArt Walnut
COLOR CHOICE

WSA-14
Art Walnut

FELT MATERIALSPET
FELT COLORBlack And Grey
MODEL

Slat 27mm, Edge to Edge 13mm
Or customized

Size

W600mm*L2400/3000mm*T21mm

environmental protectionE0
warranty2 years
INSTALLGLUE/SCREW
MIN.ORDER 100 PCS
PACKAGE DETAILS

5 pcs per carton with pearl wool
LOGO service for big order


Delivery time 2 weeks
Original place Guangzhou,china
Payment term

TT :50% deposit
Balance before shipment

Additional service OEM
NRC0.85
CertificateCE,FSC,France A+
BrandWINEGO
Project Solution CapabilityProject Design,3D model design,Graphic design,Material Production,Shipping and Deliver
Design StyleModern
After-sale ServiceOnline technical support,Return and Replacement,Installation Instruction





Installation:
Step 1: Preparing the wall involves cleaning and ensuring that the surface is even and ready for installation.
This step is crucial as it ensures that the acoustic panels will be mounted securely and effectively.
Step 2: Mounting the underlying battens involves attaching wooden strips to the wall, which will serve as a base for the
acoustic panels. Insulation wool can be placed between the battens if better acoustic performance is desired. This step
helps to improve sound insulation by reducing sound transmission through the walls.
Step 3: Mounting the acoustic panels involves attaching the panels directly onto the battensusing screws in the back acoustic felt.
It is recommended to use black screws to achieve the best finish.The panels should be mounted securely and evenly to ensure
optimal sound absorption.
Step 4: Once the acoustic panels are fully installed, the wall is now equipped with improved sound insulation properties.
The finished product should provide a more comfortable and quieter environment, reducing noise levels andimproving
overall acoustics.
