Cartesykj Automotive shock absorption and damping tester suspension tester roller brake tester
Price:
$4,323.00 - $47,131.00/sets
MOQ:
1 unit
Delivery Time:
20~25 working days
Brand:
Cartesysj
Product Description

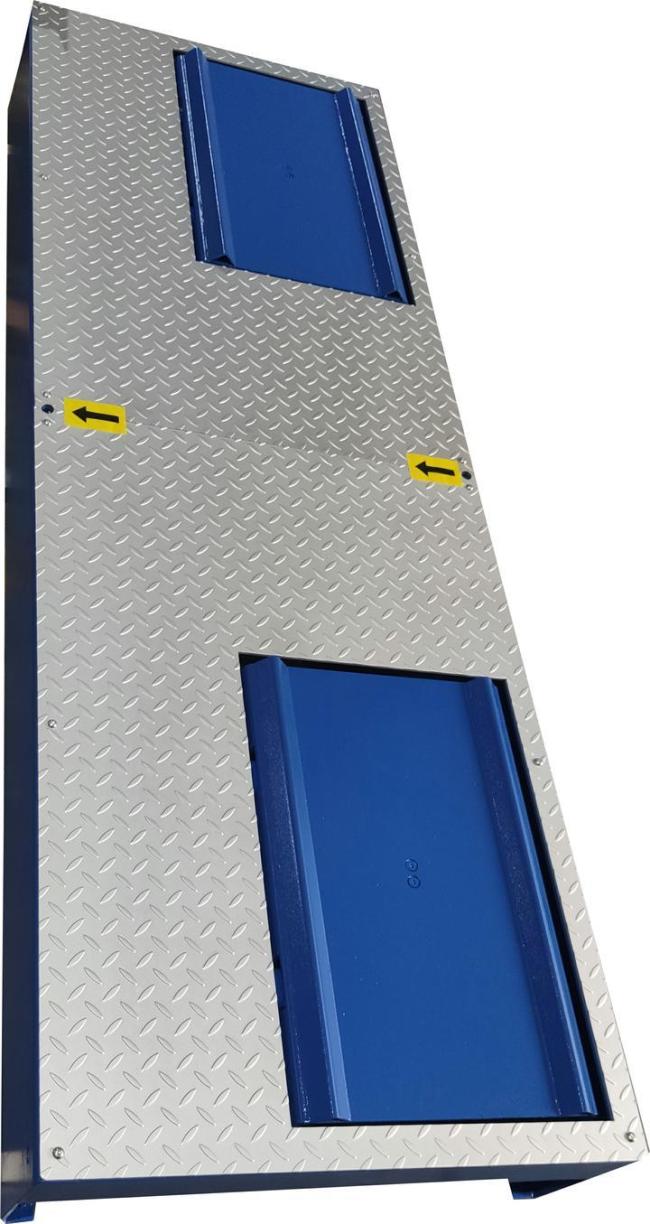

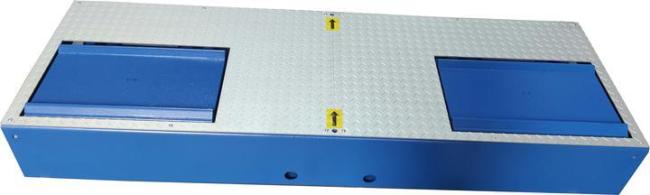

Cartesykj Vehicle Automotive shock absorption and damping tester suspension tester
Product description
The automobile shock absorption and damping tester uses a parallelogram mechanical excitation device to fully generate resonance in the automobile suspension system. Calculate the damping coefficient of the shock absorber through computer AI algorithms to quickly and accurately analyze and evaluate the performance of the car suspension. At the same time, chassis noise detection can be performed. It is one of the essential equipment for solving smart chassis faults.
Main features and characteristics
- The body adopts frame welding, with high strength and easy installation
- AI intelligent and accurate calculation of damping coefficient
- Quickly and accurately determine the reliability and defects of shock absorbers
- Equipment intelligent sensing, automatic start detection program
- The vibration curve is intuitive and can be scientifically analyzed to evaluate the suspension performance
- Latest structural design, more accurate data, and better repeatability
- Standard computer control, software that can realize the D values and error differences of each round, etc
- Compliant with EN1210-1/-2:2014/30ECI: EN61000-6-3 standard
Technical Specifications
| model | CTZN-3 |
|---|---|
| Max.passing axle laod(kg) | 3000 |
| Max. testing axle laod(kg) | 2200 |
| Vibration frequency (Hz) | 2—11.5 |
| Indication accurancy | 2% |
| amplitude of vibration(mm) | 6 |
| measurement stroke(mm) | 72 |
| Motor power(kw) | 2×1.1 |
| Wheel base(mm) | 890/2250 |
| vlotage | AC380V 50Hz |
| Size (mm) | 2320×800×280 |
