4K60Hz Video Wall Controller with Seamless Switching and Multi-Window Control for Ultra-Large Screen Walls
Price:
Contact us
MOQ:
1
Delivery Time:
5-8 days
Brand:
Bitvisus
Product Description
Factory Direct 4K60Hz 3×3 HDMI IP Processor
Professional Video Wall Controller for Ultra-Large Screen Walls
Advanced video wall processor supporting seamless switching, multi-window control, and flexible display configurations for professional applications.

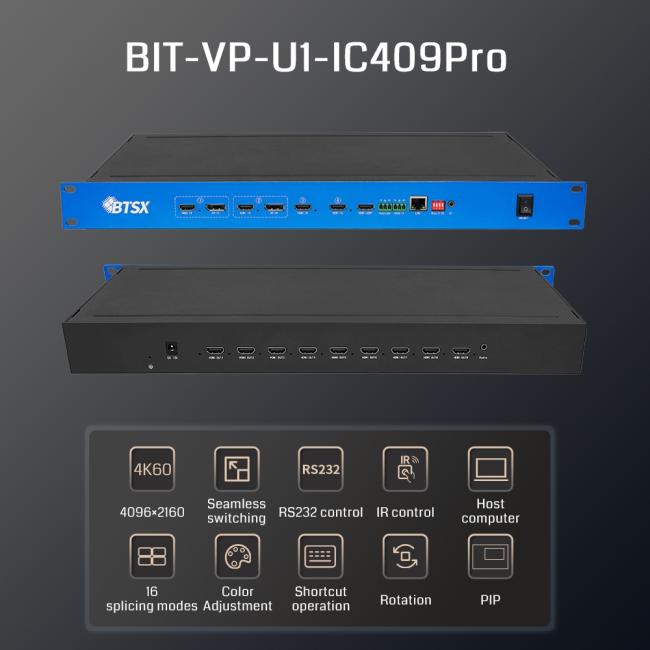

![4K60Hz 3×3 Video Wall Controller front view]()
Key Features
- Supports 4 channels of 4K×2K@60Hz input with EDID management
- Multi-window control with POP tile mode, PIP overlay, arbitrary picture overlay, roaming, cross-screen, and zoom functions
- Flexible control options: infrared remote, RS232 serial port, TCP/IP, and software control
- One-key signal source switching with seamless real-time transition
- 16 splicing modes including horizontal and vertical screen configurations
- Input rotation support (90°, 180°, 270°) and 180° output rotation
- Image adjustment functions for color, saturation, and other parameters
- Full channel 24-bit color depth with RGB444 pixel format
- Audio separation (3.5mm audio port) with audio follow-out capability
- Screen freezing and mirroring functions with gamma mode and panel support
- Signal cropping function to remove black edges and enable local amplification
- Desktop or wall mounting options available
- Compatible with proprietary window software for advanced multi-window functionality
Typical Applications
Ideal for ultra-high-definition video surveillance, ultra-large screen walls, large advertising displays in retail environments, exhibition screens, and various industrial applications.
Contact Our Team
Welcome to consult about your project requirements and custom functionality needs!
Technical Specifications
| Product Name | 3×3 4K60 LED/LCD Video Wall Controller Switcher |
| Product Features | EDID management, seamless switching, signal cropping, hot swapping, power-off memory, host computer readback, plan saving, input/output rotation, multi-window control, image adjustment, multiple control methods, audio follow-out, audio separation |
| Input Interfaces | HDMI 2.0×4 (HDCP 2.2), DP 1.2×2 |
| Output Interfaces | HDMI 1.3×9 (≤15m), HDMI 2.0×1 (ring out) |
| Certifications | CE, FCC, ROHS |
| Resolution | 4096×2160@60Hz |
| Included Accessories | 12V/5A power supply, IR receiver, remote control, certificate, warranty card, USB to RS232 serial cable (optional) |
| Support Services | ODM, OEM |
| Warranty | 3 Years |
