Ultra High Definition 8Kx4K@60Hz Video Wall Controller with 32 HDMI Outputs and 100~240V Power Supply for Multi-screen Video Monitoring
Price:
Contact us
MOQ:
1
Delivery Time:
5-8 days
Brand:
Bitvisus
Product Description
BIT-MSE-U2-432 Ultra High Definition Video Wall Controller
Industrial-grade high-performance video wall controller supporting ultra-high definition resolutions up to 8Kx4K@60Hz for multi-screen video monitoring applications.

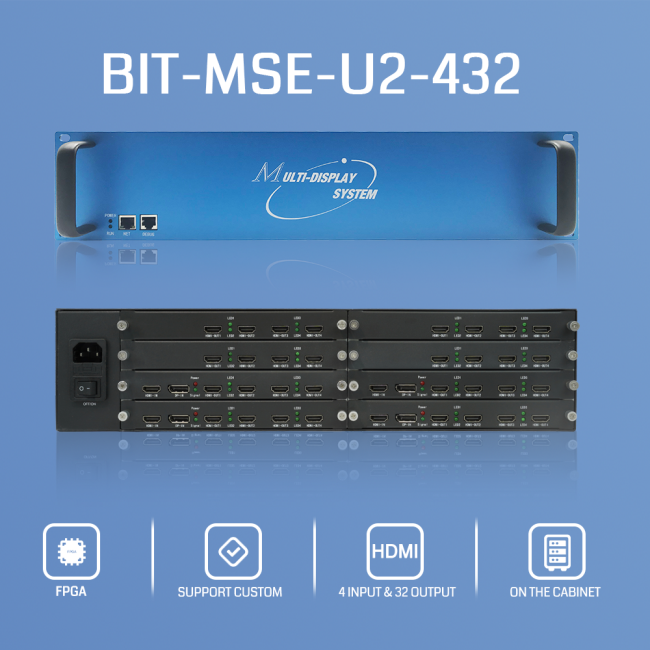

![BIT-MSE-U2-432 Video Wall Controller front view]()
Key Features
- Ultra-high definition resolution support up to 8Kx4K@60Hz
- Maximum single output resolution: 1920x1200@60Hz
- Supports 4 inputs and 32 outputs with flexible display configurations
- Plug-and-play operation with automatic input resolution detection
- Point-to-point display without deformation or stretching
- Wide voltage power supply (100-240V) with energy-efficient design
- Internal fan cooling system for reliable operation
- 28nm technology FPGA chip for ultra-fast processing without delay
- Industrial-grade construction with 6-layer PCB and 16KV anti-static protection
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | BIT-MSE-U2-432 |
| Input Interface Maximum Video Pixel Frequency | 600MHz |
| Output Interface Maximum Video Pixel Frequency | 330MHz |

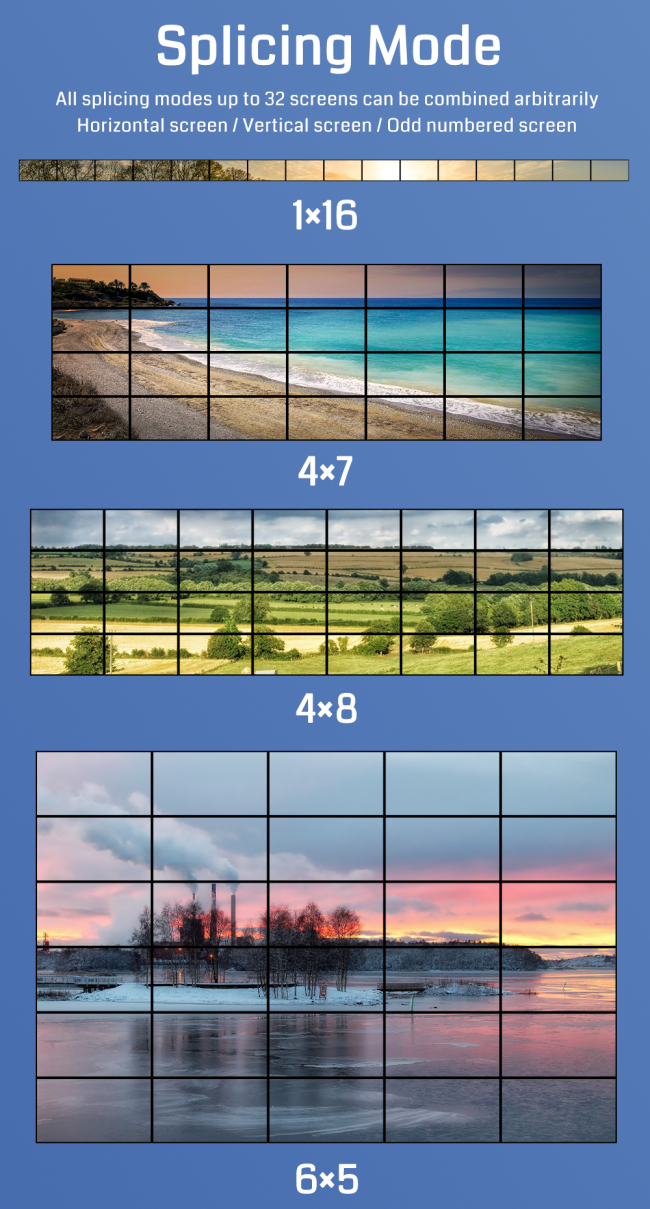

| 4x8 Maximum Supported Resolution | 15360x4320@30Hz |
| 7x4 Maximum Supported Resolution | 7680x7560@30Hz |
| 4x7 Maximum Supported Resolution | 13440x4320@30Hz |
| 3x5 Maximum Supported Resolution | 9600x3240@60Hz |
| 5x3 Maximum Supported Resolution | 5760x5400@60Hz |
| 5x5 Maximum Supported Resolution | 5760x5400@60Hz |
| 11x2 Maximum Supported Resolution | 3840x11880@30Hz |
| 16x1 Maximum Supported Resolution | 1920x17280@60Hz |
| 1x16 Maximum Supported Resolution | 30720x1080@60Hz |
| 6x5 Maximum Supported Resolution | 9600x6480@30Hz |
| 3x7 Maximum Supported Resolution | 13440x3240@60Hz |
| Factory Default Resolution | 3840x2160@60Hz (customizable) |
| Input Interface Types | 4 DP ports, 4 HDMI ports, 1 RJ45 Internet port, 1 RJ45 debug port |
| Output Interface Types | 32 HDMI outputs |
| Input Cable Length Support | ≤ 3m |
| Output Cable Length Support | ≤ 15m |
| Power Supply | 100-240V |
Company Information
Professional manufacturer specializing in video wall controllers, multiscreen expanders, multiviewers, and embedded projector fusion systems with extensive R&D experience and quality assurance.
Frequently Asked Questions
Why Choose Bitvisus?
- Own warehouse ensuring 48-hour shipping after payment (excluding weekends and holidays)
- OEM/ODM services available for custom requirements
- Comprehensive product portfolio including Video Wall Controllers, Multiscreen Expanders, Multiviewers, and Embedded Projector Fusion systems
- Extensive R&D experience and product quality assurance
Shipment & Payment
- Payment Methods: T/T, Visa, PayPal, Western Union, L/C
- Shipping Options: DHL, UPS, EMS, FedEx, Air freight, Sea freight
How to Order?
- Contact us via email, TradeManager, WhatsApp, or Skype with your order requirements
- We will provide a proforma invoice based on your specifications
- After payment confirmation, we will expedite delivery of your order
