Zero Delay 30KM Fiber Optic HDMI Extender with 4K60 Resolution and KVM Support for Long Distance AV Transmission
Price:
Contact us
MOQ:
1
Delivery Time:
5-8 days
Brand:
Bitvisus
Product Description

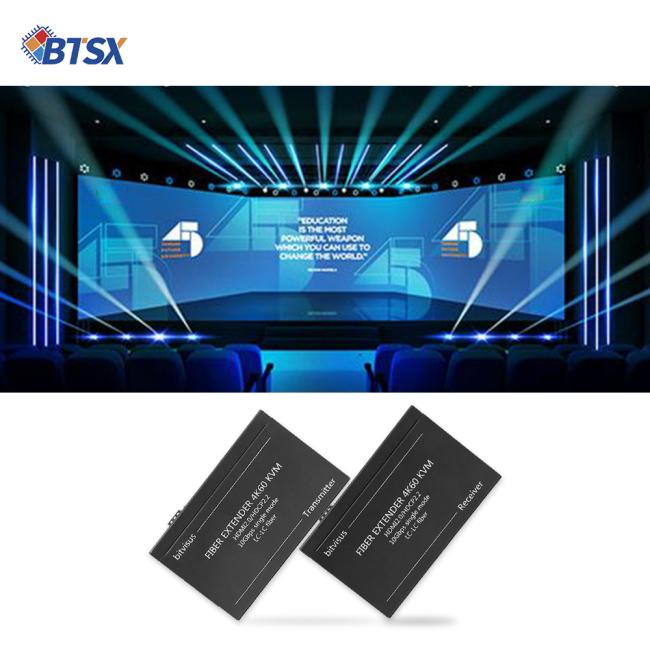

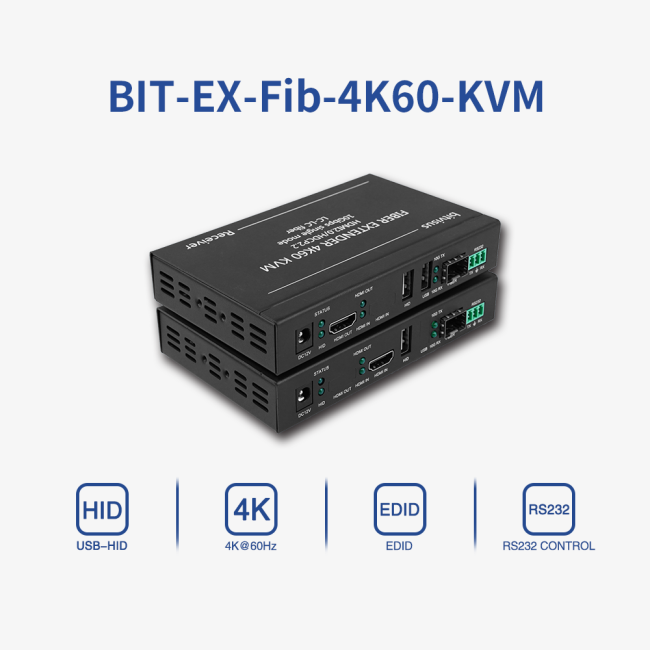

Zero Delay 30KM Fiber Optic HDMI Extender
Uncompressed 4K60 with KVM Support for Long Distance AV Transmission
![]()
Product Overview
Professional fiber optic HDMI extender delivering uncompressed 4K video and KVM functionality over distances up to 30 kilometers.
Key Features
- Supports 4K ultra-high-definition video with advanced video processing chip
- Transmission distance up to 30 km using HDMI interface input and output
- Maximum resolution support: 3840x2160@60Hz with backward compatibility
- USB-HID functionality with dual USB interfaces for mouse and keyboard connectivity
- Zero delay, uncompressed long-distance transmission with plug-and-play operation
![]()
Contact our team for custom project requirements!
Technical Specifications

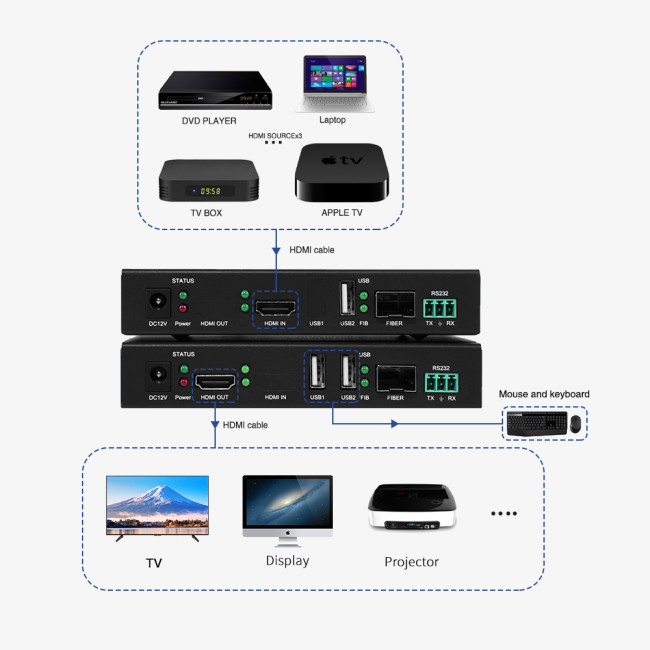

| Input | Transmitter (TX): HDMI 2.0 (≤ 5 m), IR, RS232 signal Receiver (RX): LC-LC single-mode single-core/dual-core optical fiber (10KM), LC-LC multimode fiber (300M) |
|---|---|
| Output | Transmitter (TX): LC-LC single mode fiber/dual core fiber (10KM), LC-LC multimode fiber (300M) Receiver (RX): HDMI 2.0 (≤ 5 m), IR, RS232 signal Audio: HDMI audio out |
| Performance | Supported resolution: 4K60Hz backward compatible (horizontal resolution ≤ 5760, vertical resolution ≤ 3600) Color space: Support RGB444; YUV color space Pixel bandwidth: 594 MHz Transmission bandwidth: 10.2 Gbps Supported features: CEC, 3D, Remote wake up, EDID, OEM KVM: USB 1.0, keyboard and mouse RS232: Two-way RS232 transparent transmission |
| Power | Power supply: DC 12V 2A Power consumption: ≤7W |
| Physical | Size: 105×76×27mm Weight: Approximately 0.9 kg |
| Package Contents | Device ×2, power supply ×2, double-headed USB cable ×1, single-mode dual-core optical module (standard configuration) ×2, certificate of conformity ×1, warranty card ×1 |
Warranty & Support
1 year warranty with lifetime service support
Why Choose Bitvisus?
- Own warehouse ensures shipping within 48 hours after payment (excluding weekends and holidays)
- OEM/ODM services available for custom requirements
- Leading manufacturer in professional AV transmission solutions
Ordering Process
- Contact via email or chat with your order requirements
- Receive proforma invoice based on your specifications
- Fast delivery after payment confirmation
Payment & Shipping
Payment methods: T/T, Visa, PayPal, Western Union, L/C
Shipping carriers: DHL, UPS, EMS, FedEx, Air freight, Sea freight
