Gsurface IV Outdoor DIP10 3D-Naked Eye Waterproof Full Color LED Display LED Adverting Billboard

Price Negotiable
Price: Price to be discussed
MOQ: Min. order: 20
Delivery Time: 15-20Days
Brand: GCL
Product Description

Gsurface IV Outdoor DIP10 3D-Naked Eye Waterproof Full Color LED Display Adverting Billboard



Product Features:

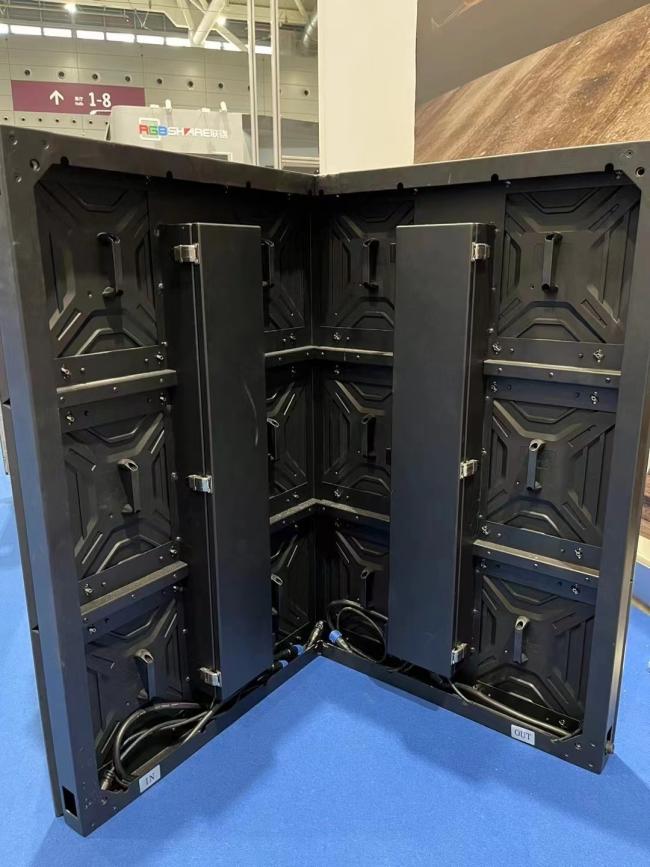

45°module, can be assembled into a right angle:

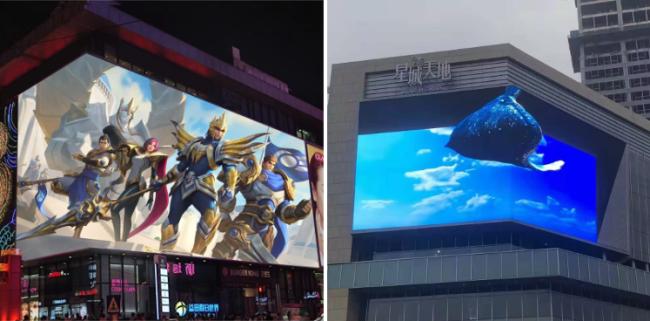

Customisable according to project requirements, widely used in outdoor naked-eye 3D commercial advertising design.


With a brightness of 10,000 nits:
the ultra-high-bright display excels in presenting stunning image quality. Even under direct sunlight, it can showcase visuals perfectly, demonstrating excellent colour and detail.

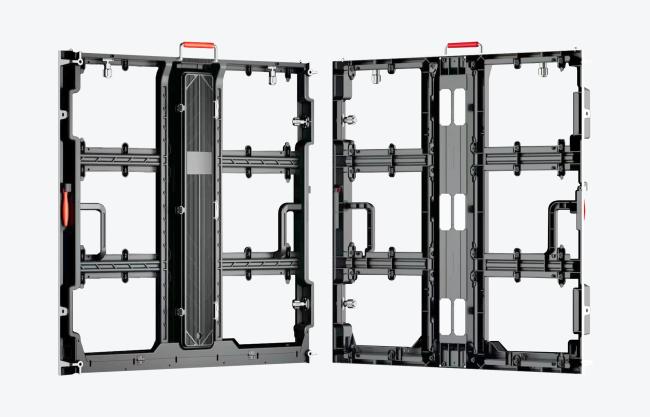

Modular design for easy maintenance:
The independent central control and power supply utilise a modular design, meeting a wider range of installation environment requirements!
Modules can be removed and maintained from the front or back, making two-way maintenance and installation more convenient.



Low power consumption, high performance:
Minimum power consumption of 120W enables stable operation 24 hours a day, with a module lifespan of up to 100,000 hours, delivering energy savings of up to 70% compared to traditional standard displays.



protection level up to IP65, dustproof, moisture-proof, corrosion-proof, etc.,



Fully enclosed module, good waterproof effect:

· Matching professional waterproof box and waterproof module,

· protection level up to IP65, dustproof, moisture-proof, corrosion-proof, etc.,
· suitable for use in all kinds of bad weather



Main parameters of Gsurface IV:



Product P4 P5.71 P6.67 P8 P10 P10D P16
Pitch 4mm 5.71mm 6.67mm 8mm 10mm 10mm 16mm
Density(pixels/m²) 62500 30625 22500 15625 10000 10000 3906
LED Type SMD1921 SMD2727 SMD2727 SMD2727 SMD2727 DIP346 DIP346
Brightness 5500nits 6500nits 6500nits 6500nits 6500nits 8000nits 8000nits
Scan Method 1/8 1/7 1/6 1/4 1/2 1/4 Static
Panel Size 960×960mm
Module Size 480×320mm
Panel Material Profile Aluminum
Panel Weight 30kg/sq.m 30kg/sq.m 29.5kg/sq.m 29.5kg/sq.m 29.5kg/sq.m 38.8kg/sq.m 38.8kg/sq.m
Protection Level IP65
Maintenance Front&Rear Service
Max Power Consumption 600W/㎡ 650W/㎡ 650W/㎡ 650W/㎡ 650W/㎡ 350W/㎡ 350W/㎡
Average PowerConsumption 200W/㎡ 210W/㎡ 210W/㎡ 210W/㎡ 210W/㎡ 110W/㎡ 110W/㎡
Refresh Rate 3840Hz
Grey Scale 13-16bit
Viewing Angle H140°,V120° H140°,V120° H140°,V120° H140°,V120° H140°,V120° H100°,V50° H100°,V50°
Voltage AC100~240V(50-60Hz)
WorkingTemperature -20℃ to 60℃
WorkingHumidity 10%-90%RH
Color Temperature 3000-9500K
Certifications CE/ROHS/EMC/TUV/UL/CCC/FCC/ISO
